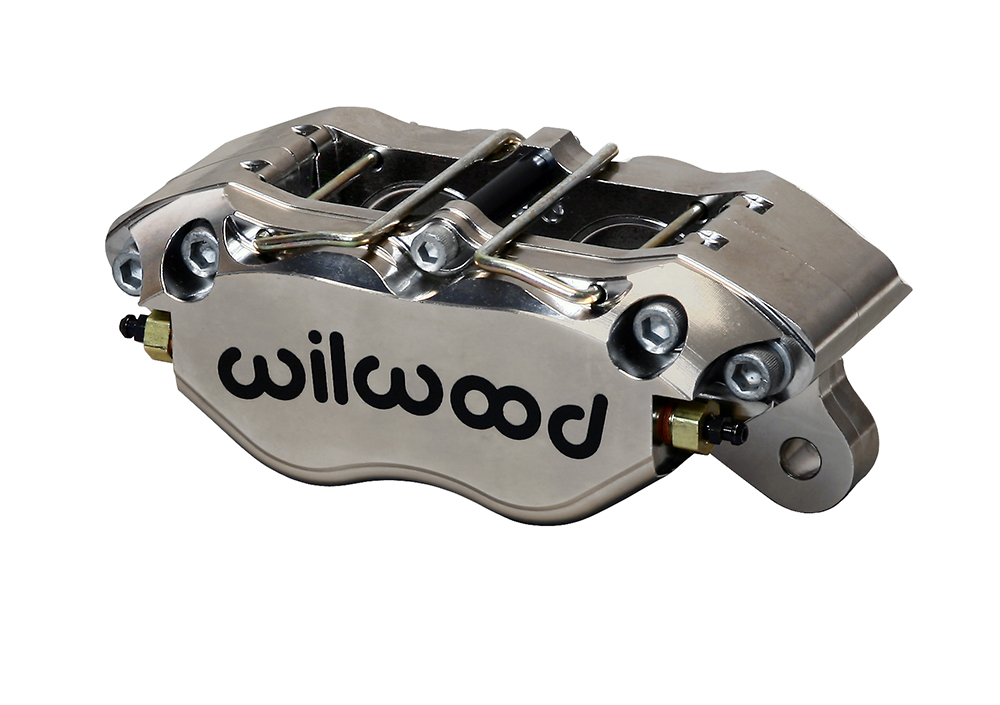

Wilwood 120-14182-N DynaPro Lug Mount Forged Billet Disc Brake Caliper

Manufacturer

Part Number

120-14182-N
Black Friday Price

$245.06

Estimated ship date Tuesday, December 01

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wilwood 120-14182-N DynaPro Lug Mount (DP) forged billet brake caliper represents the latest generation in Wilwood's performance caliper lineup, bridging pure race technology with exclusive street and competition enhancements. A sleek, fully detail-machined finish delivers the performance and aesthetics demanded by both track and show applications.

Stress-Flow Forged Construction:

The DynaPro body is stress-flow forged from premium-grade billet aluminum. This process realigns the grain structure of the metal to follow the contour of the body, producing superior strength compared to calipers simply machined from straight-grain billet blocks. The FEA-optimized body design features a highly fortified radial transition between piston housings and bridges, eliminating stress-concentrating steps and shoulders. This critical design element dramatically increases resistance to deflection and body separation under load, translating to reduced fluid volume displacement, increased clamping efficiency, and a firm, responsive pedal with outstanding stopping power.

Key Features:

  • Quick-E-Clip Pad Retainers – Support a 7812-type brake pad from the top, enabling fast pad service without caliper removal; bottom pad supports are removed for a slimmer profile to fit tight clearance applications
  • Heavy-Wall Stainless Steel Pistons – Resist corrosion, slow heat transfer from pads, and provide additional backside deflection resistance for firm pedal feel even under high-pressure power boost systems
  • Optional Center Bridge Bolt Kit – Provides additional resistance against body separation under high load; included standard on all side-inlet (SI) models and available as an upgrade on all other configurations
  • Wilwood SRS Bridge Plates – Eliminate bridge wear caused by pad gouging to extend caliper body service life; spring-loaded action eliminates pad rattle and dampens vibration harmonics that contribute to brake squeal
  • Internal Fluid Passages – Combined with four-corner bleed screws for universal mounting compatibility in any front, rear, left, or right position
  • Fully Detail Machined Finish – Competition-grade appearance suitable for show or race use

The Wilwood DynaPro Lug Mount caliper delivers proven structural efficiency through deflection and volume displacement testing, resulting in reduced pedal travel and maximum clamping force. It is an ideal upgrade for performance street, road race, and show vehicle applications requiring a lightweight, high-strength braking solution.
