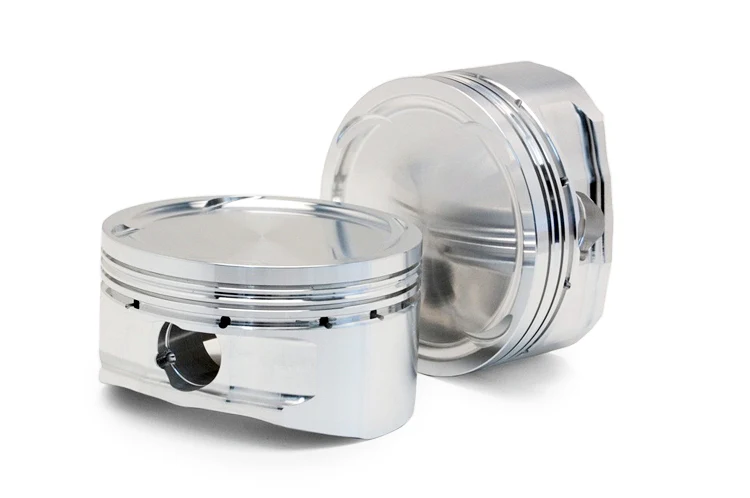

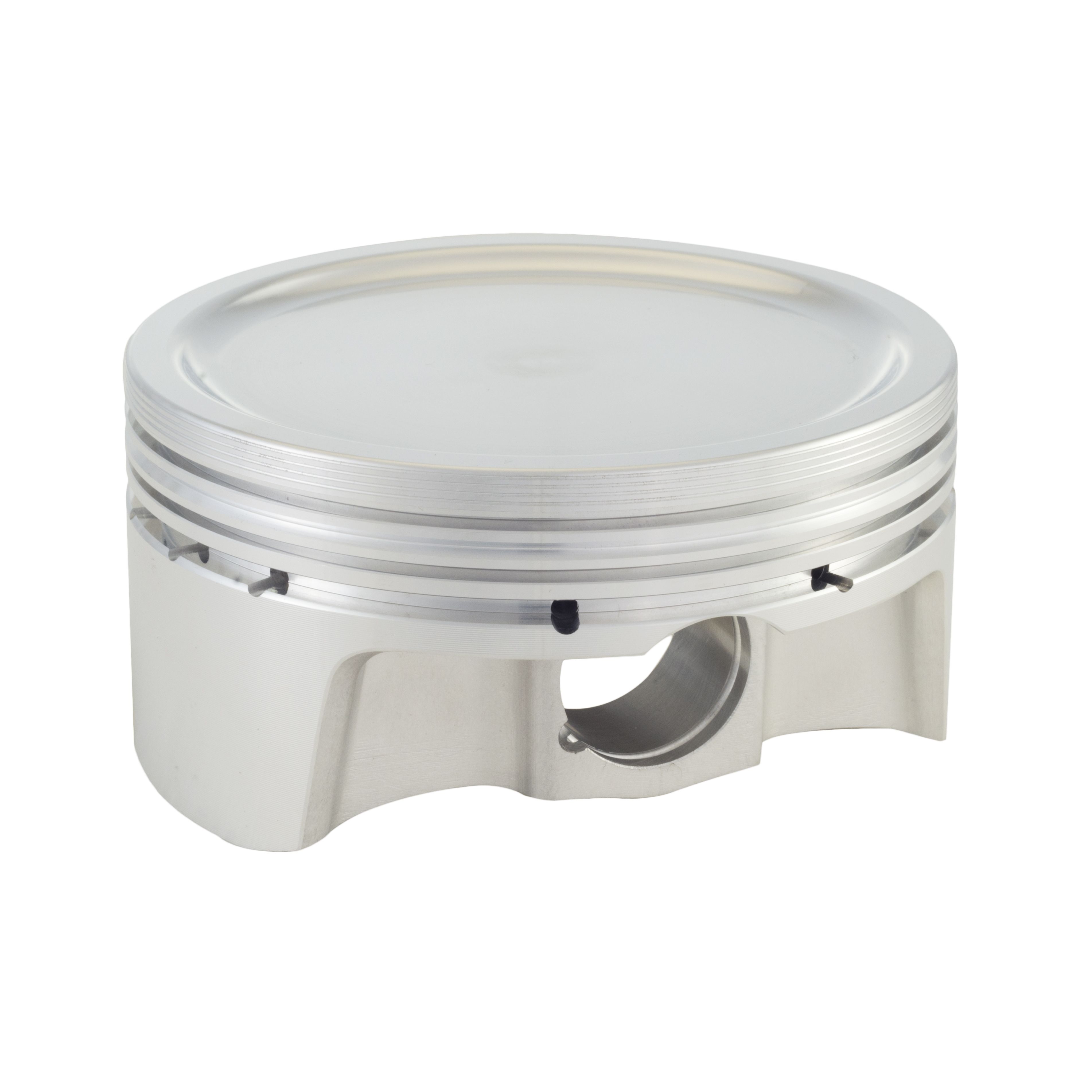

CP-Carrillo SC7221-1 Forged Piston 86.5mm 9.0:1 CR Mitsubishi 4B11T

Manufacturer

Part Number

SC7221-1
Sale Price

$245.77

Estimated ship date Friday, November 27

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The CP-Carrillo SC7221-1 is a single forged high-performance piston engineered specifically for the Mitsubishi 4B11T engine. Designed for demanding forced-induction, supercharged, and nitrous oxide applications, this piston delivers the strength and precision that serious performance builders require. The "-1" suffix denotes a single-unit purchase, allowing builders to replace individual pistons or source them individually for a custom build.

Key Specifications:

  • Bore: 3.406 in. (86.50mm)
  • Compression Ratio: 9.0:1
  • Piston Style: Dish with four valve reliefs (−5.30cc head volume)
  • Stroke: 86.00mm
  • Rod Length: 143.75mm
  • Compression Height: 1.313 in. (33.35mm)
  • Wrist Pin Diameter: 0.905 in. (23mm)
  • Advertised Piston Weight: 326g
  • Material: 2618 forged aluminum alloy
  • Wrist Pin Style: Press-fit or floating

Features:

  • High-strength 2618 aluminum forging for superior durability under boost
  • Fully CNC-machined and balanced to within +/− 1 gram
  • CP Groove technology: equalizes pressure behind the top ring to reduce carbon buildup and prevent top land damage
  • Accumulator groove for improved ring sealing
  • Double pin oilers, force-fed from the oil ring, for enhanced lubrication
  • Pin lock grooves for easy circlip removal and installation
  • Wrist pin and retainers included
  • Rings included (sold as single piston with ring set)
  • Compatible with turbo, supercharger, and nitrous oxide applications

CP-Carrillo pistons are manufactured at their facility in Irvine, California using proprietary tooling, dedicated cutters, and a climate-controlled inspection department with computerized measurement equipment. Each piston is engineered with sophisticated computer modeling and produced on 5-axis CNC machinery to meet the strictest tolerances. The SC7221-1 is part of CP-Carrillo's Sport Compact shelf line, developed with input from top motorsports programs worldwide.
