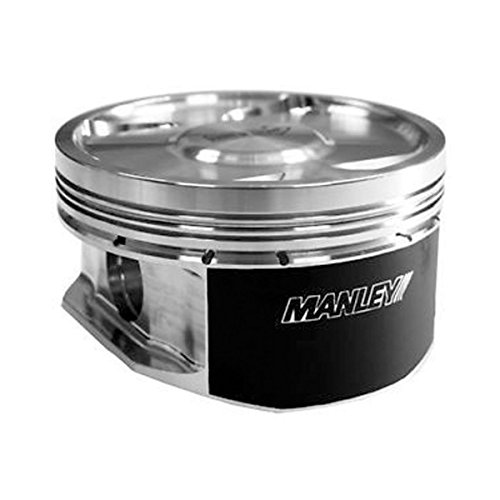

Manley 598405CE-8 Ford Coyote 5.0L Flat Top Performance Pistons

These pistons feature a 3.635-inch bore diameter with a 1.165-inch compression height and deliver a 10.0:1 compression ratio, making them ideal for naturally aspirated and forced induction performance builds.

Key Features:

• Forged from high-strength 2618 aluminum alloy for superior durability and heat resistance
• Flat top design with -2.5cc valve reliefs for optimized combustion chamber volume
• 0.927-inch diameter x 2.300-inch long premium Chrome Moly wrist pins included
• Gas-ported top ring groove design for improved ring seal and reduced blow-by
• Cam and barrel skirt profiles minimize friction while protecting cylinder walls
• Moly skirt coating for enhanced wear resistance and reduced break-in time
• Round wire locks and precision-machined ring grooves included
• Extreme Duty (E/D) series construction for demanding high-performance applications

Manley's Platinum Series pistons are trusted by professional engine builders and elite tuners worldwide. Each piston is manufactured using unique fixturing that ensures perfect ring groove to skirt squareness for optimal ring seal and maximum power output. The 2618 alloy forgings provide exceptional strength for high-RPM operation while maintaining lightweight construction for reduced reciprocating mass.
