BD Diesel 1027150 Exhaust Brake Remote Air System Ford 6.7L 2011-2016

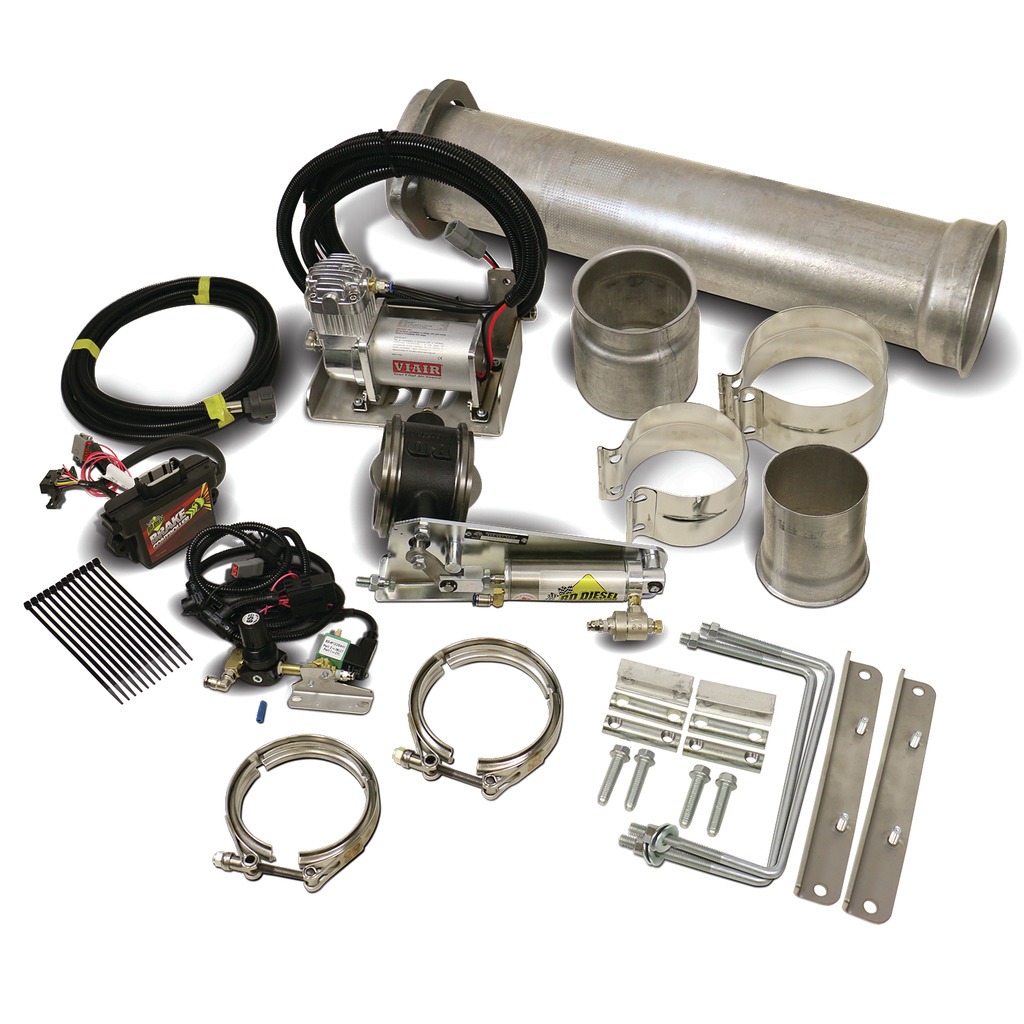

The BD Diesel 1027150 is a remote-mount air actuated exhaust brake system designed specifically for 2011-2016 Ford 6.7L Power Stroke diesel engines. This comprehensive kit includes an IP67-rated air compressor and all necessary mounting hardware for installation on both 4-inch and 5-inch exhaust systems.

Variable Orifice Technology:

BD Diesel's exclusive Variable Orifice Technology delivers up to 150 retarding horsepower and over 65 psi of retarding back pressure throughout the engine's RPM range. The solid, offset butterfly valve design with spring-loaded pneumatic cylinder and adjustable pressure regulation provides consistent braking performance from low to high RPM, unlike competitor designs that only perform optimally at high engine speeds.

Durable Construction:

• Rugged cast-iron housing built for longevity
• Stainless steel butterfly valve and shaft resist corrosion and high heat
• Exclusive alumibronze bushing for smooth operation
• Piston ring seals engineered for harsh exhaust environments
• IP67 sealed air compressor protects against dust and moisture

Additional Features:

• Warm-up mode helps engine reach operating temperature faster at idle
• Remote mount design allows flexible installation
• Complete kit includes air compressor and all mounting hardware
• Fits both 4-inch and 5-inch exhaust systems

Warranty Coverage:

Parts are covered for 24 months/24,000 miles, and labor is covered for 12 months/12,000 miles. BD Diesel recommends using exhaust back pressure test gauge kit 1030050 during installation and setup.

Important Notes:

• EPA compliant for federal jurisdictions (EMS:2)
• Not legal for sale or use on California-licensed vehicles
• Intended for non-emission controlled vehicles only
