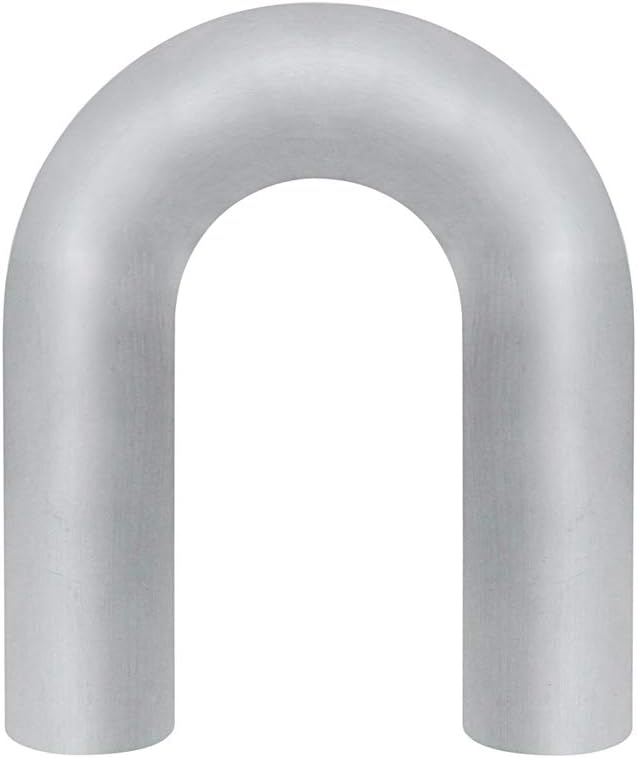

HPS Performance Products AT180-075-CLR-15 180 Degree Aluminum U-Bend Tubing 3/4" OD

The HPS Performance Products AT180-075-CLR-15 is a precision-engineered 180-degree aluminum U-bend tube designed for custom fabrication projects across automotive, marine, aerospace, and industrial applications. Constructed from durable 6061-T6 aluminum with 16-gauge wall thickness (1.65mm), this tight-radius bend delivers excellent strength-to-weight ratio and corrosion resistance.

Key Specifications:

• Outside Diameter: 3/4 inch (19mm)
• Center Line Radius (CLR): 1-1/2 inch for tight routing
• Leg Length: 6 inches on each side

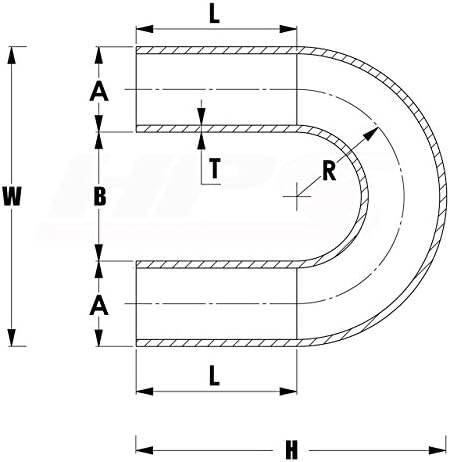

• Overall Dimensions: 7-7/8" height, 3-3/4" outside width, 2-1/4" inside width
• Material: 6061-T6 aluminum alloy
• Wall Thickness: 16 gauge (1.65mm)

Applications:

• Custom DIY air intake systems
• Cooling system plumbing
• Turbo intercooler piping
• Vacuum line routing
• Fuel system fabrication
• General fluid transfer applications

The tight 1.5-inch centerline radius allows for space-efficient routing in confined engine bays and chassis applications. The 6061-T6 aluminum construction provides excellent weldability and can be polished to a mirror finish for show-quality builds.
