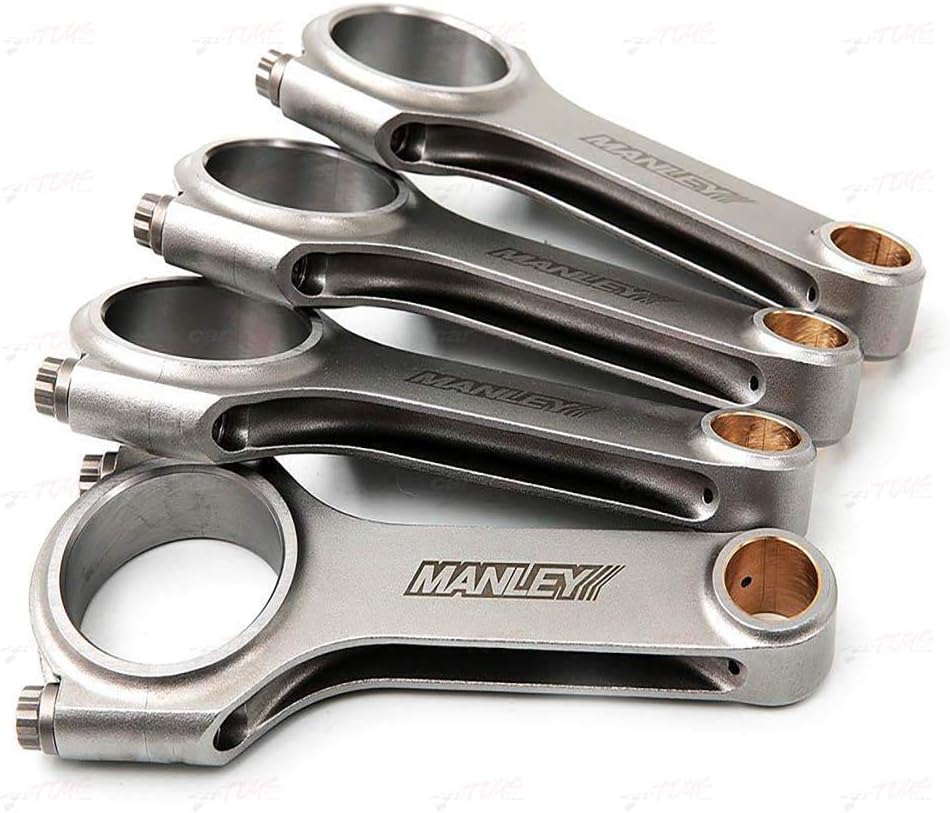

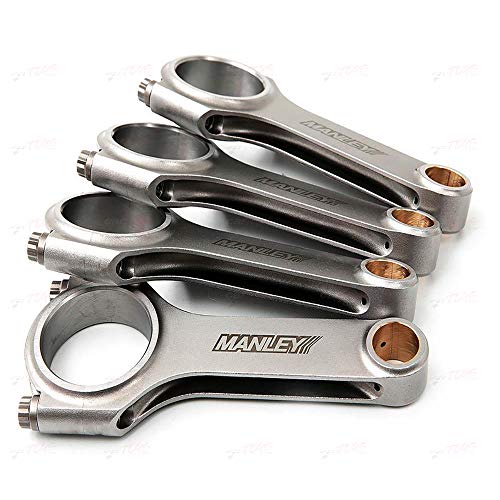

Manley 15084R6-4 H-Tuff Plus Connecting Rod Set FA20 Subaru BRZ WRX 5.090 Length

The Manley 15084R6-4 H-Tuff Plus Connecting Rod Set is a premium upgrade designed specifically for Subaru FA20 2.0L engines found in the 2013+ BRZ and 2015+ WRX, as well as Toyota/Scion FR-S applications. These performance connecting rods bridge the gap between standard H-Beam rods and top-tier Turbo Tuff Series rods, delivering exceptional strength for elevated boost and high-power builds.

Key Features:

• Manufactured from forged 4340 steel for superior strength and durability
• H-Tuff Plus design features wider beam and increased cross-sectional thickness in critical stress areas
• Upgraded 3/8" ARP Custom Age 625+ (CA625+) cap fasteners for maximum reliability
• Rated up to 950 crank horsepower in 4-cylinder applications
• Heat treated, stress relieved, shot peened, and 100% individually magnafluxed
• Weight matched to within ±1.5 grams per set
• 5.090" center-to-center length, 2.087" big end bore, 0.866" (22mm) pin diameter
• Big end width: 0.843", pin bore: 22mm

These H-Tuff Plus rods are precision-finished to exacting tolerances and provide a greater safety margin for turbocharged and high-performance builds. The upgraded ARP 625+ bolts offer superior clamping force compared to standard ARP 2000 bolts, making these rods ideal for serious enthusiasts pushing their FA20 engine to the limits. Note: These rods will not work with OEM pistons and require aftermarket non-tapered connecting rod pistons.
