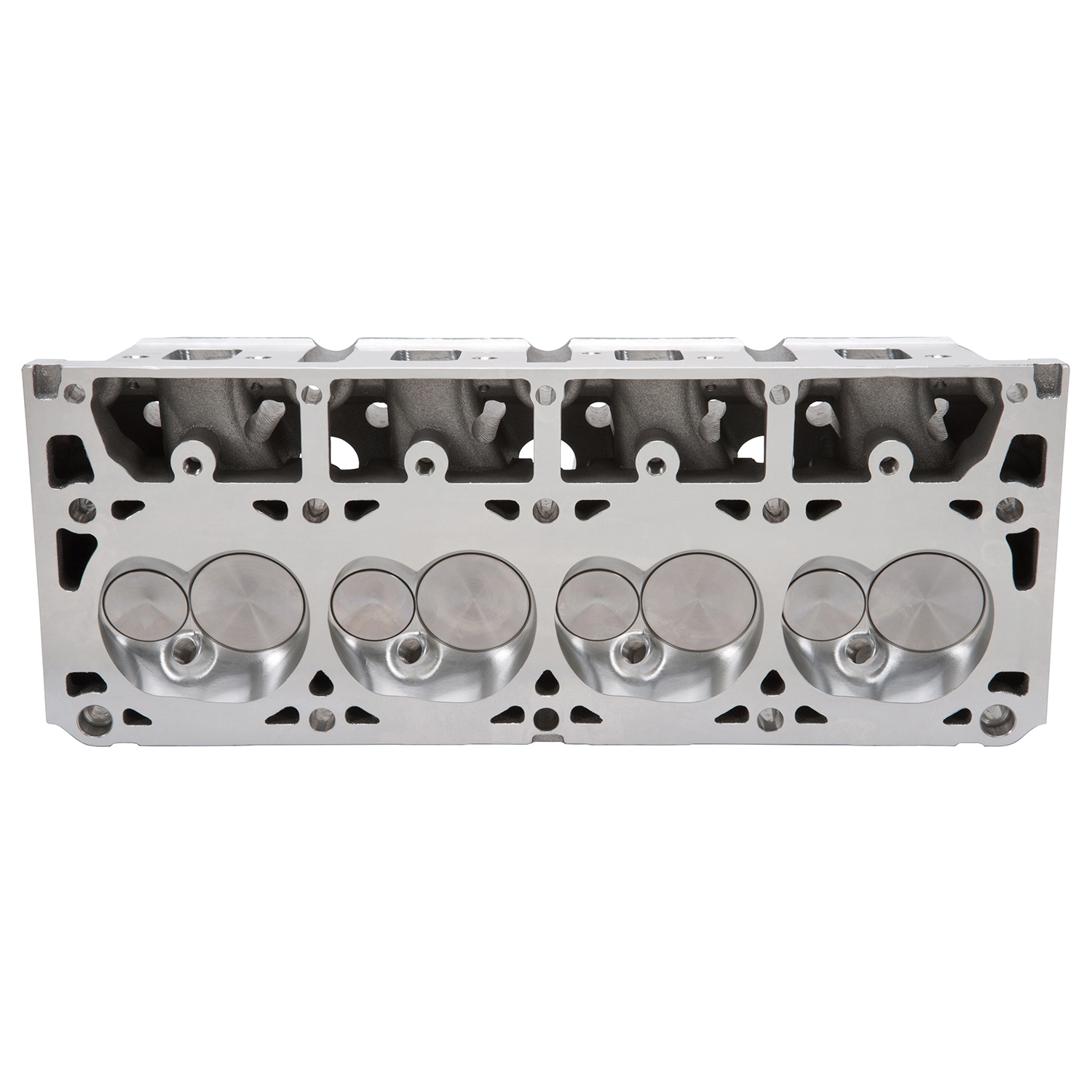

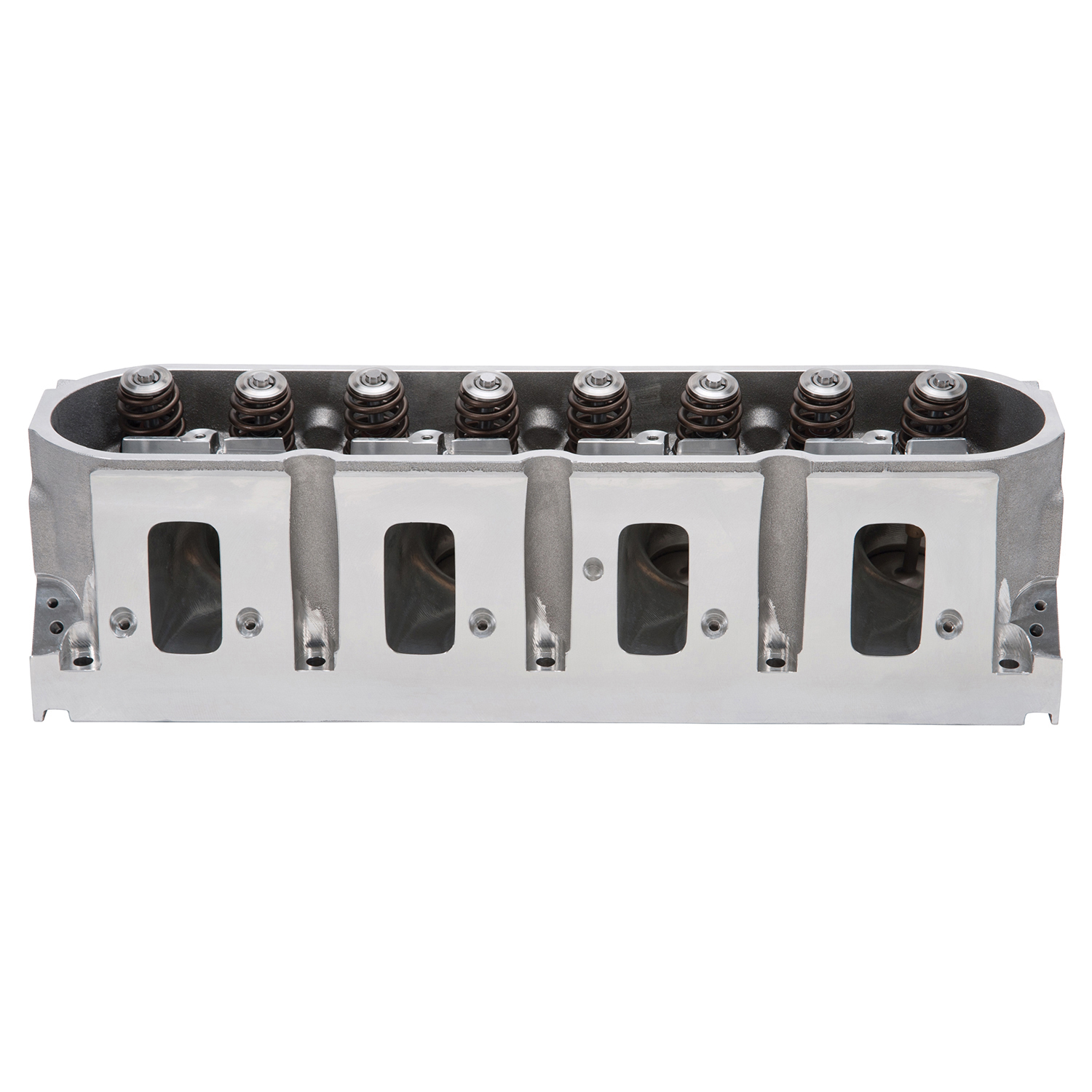

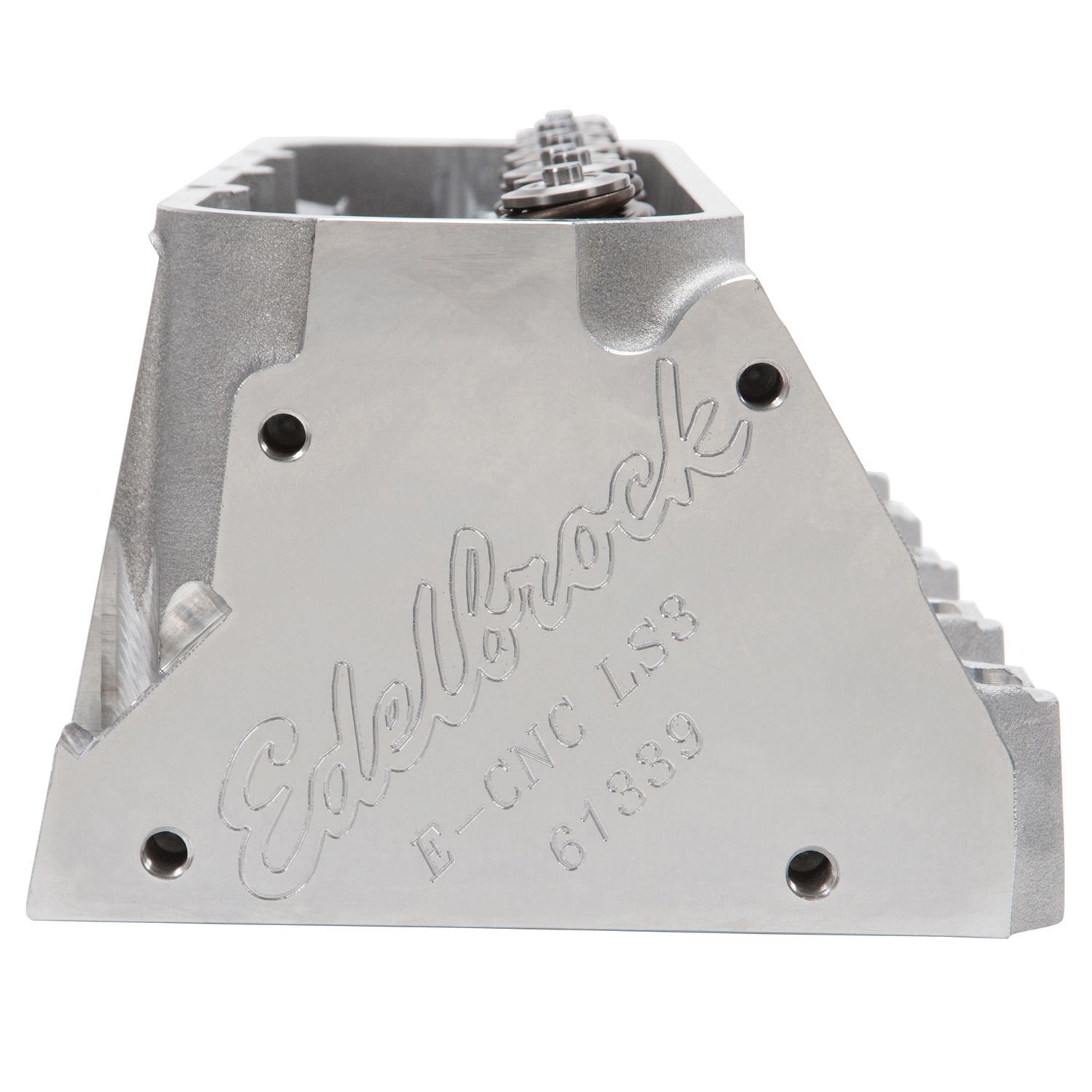

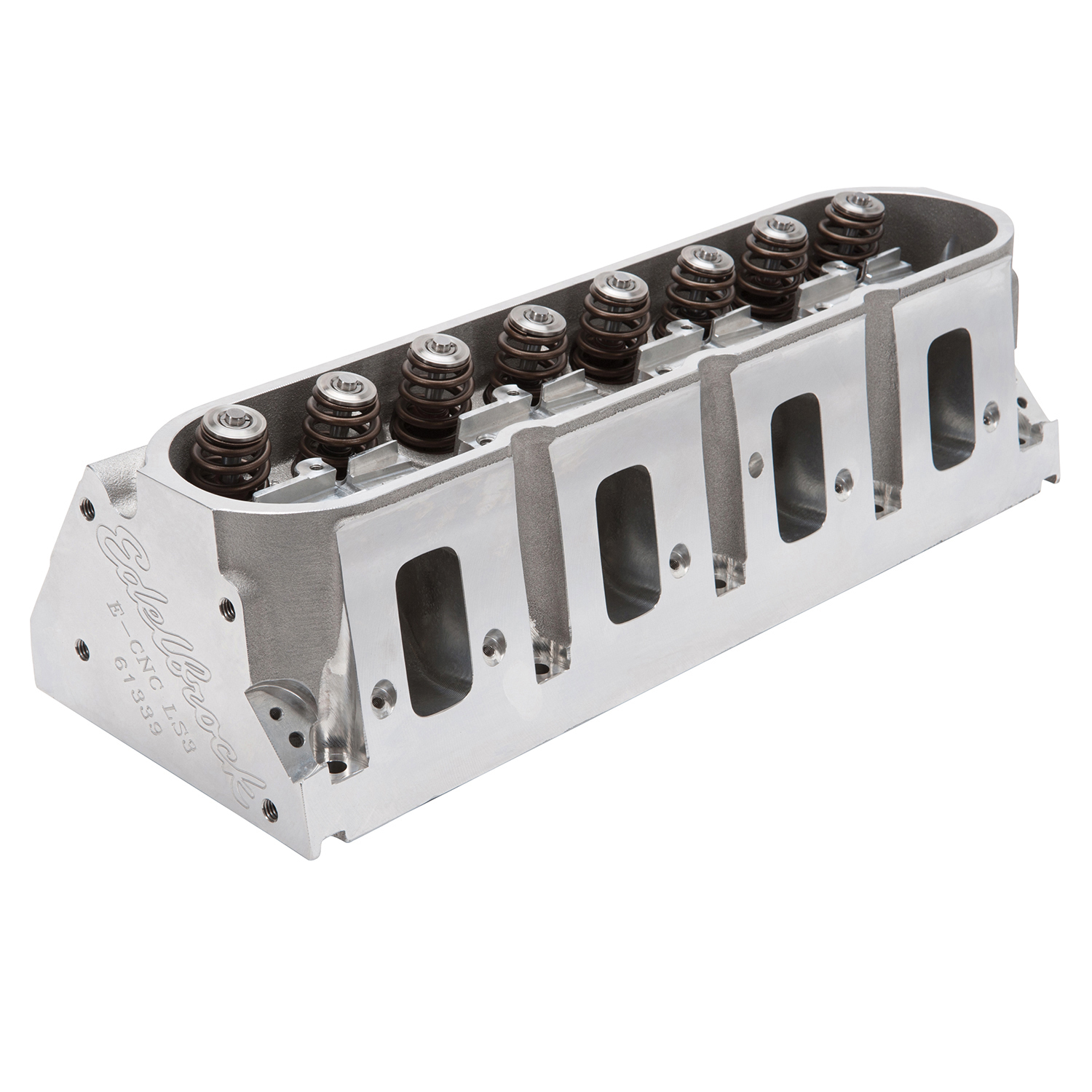

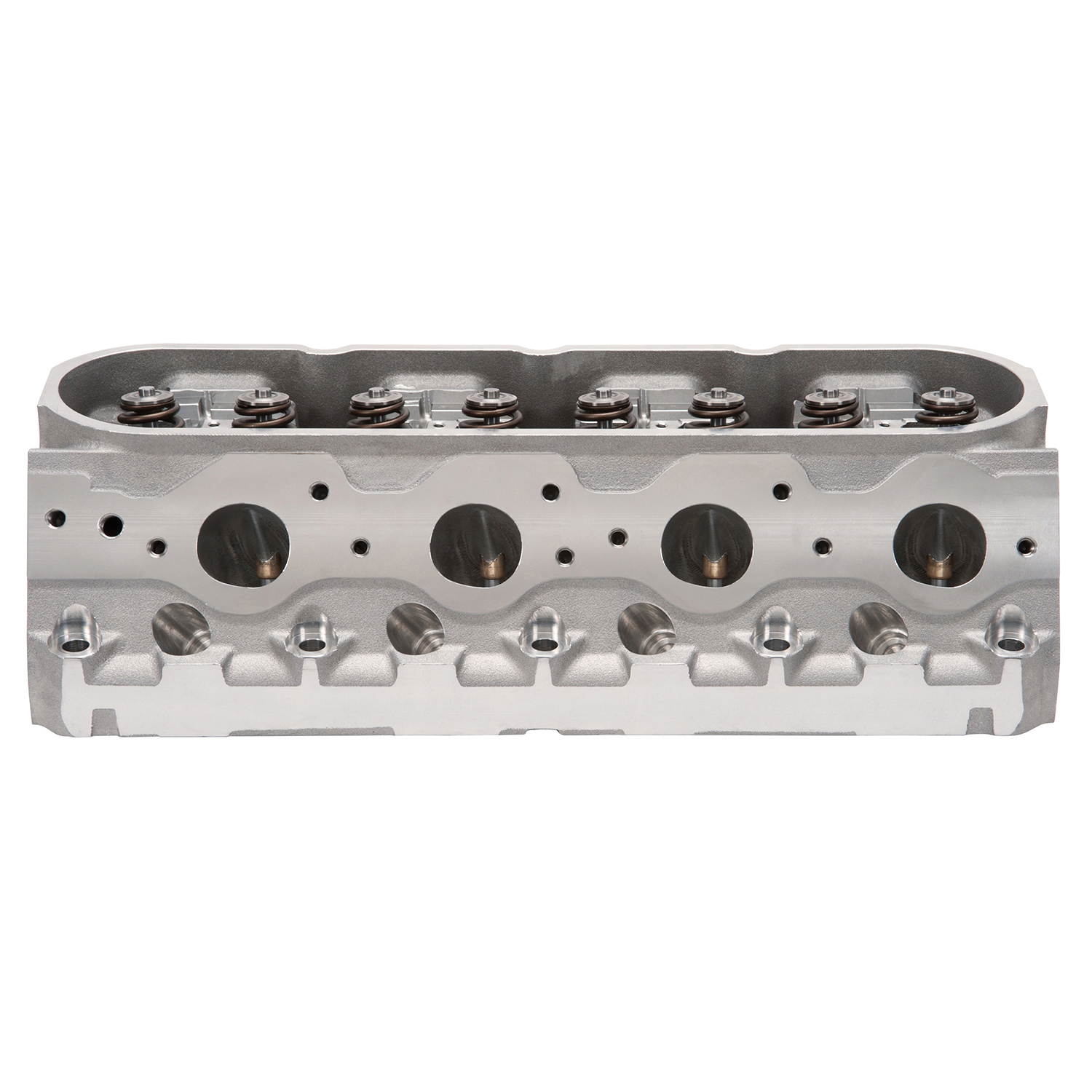

Edelbrock 61339 Victor Jr. LS3 Cylinder Head

Manufacturer

Part Number

61339
Black Friday Price

$2,305.95

Estimated ship date Saturday, December 05

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Edelbrock Victor Jr. LS3 cylinder head is engineered for high-performance street and competition engines that have exceeded the capabilities of stock-style cylinder head designs. Unlike most aftermarket LS3 heads that simply enlarge the ports on stock designs, the Victor Jr. features an all-new ground-up design with strategic improvements to flow characteristics and combustion efficiency.

Key Features:

  • 2.20-inch diameter intake valves with canted configuration similar to GM LT1 Gen V design
  • Unique port shape delivers nearly 400 CFM peak flow
  • Fully CNC-machined intake ports, combustion chambers, and exhaust ports for consistency
  • Capable of producing over 600 horsepower on LS3 engines with stock rocker arms, intake manifold, and exhaust manifolds
  • Purpose-built design addresses limitations of stock cylinder heads at higher performance levels

This cylinder head represents a significant upgrade for serious LS3 builds, combining advanced port design, optimized valve configuration, and precision CNC machining to unlock substantial performance gains while maintaining compatibility with common stock components.

Products specifications

Quantity

Sold individually

Engine Make/Size

Chevy LS3

Type

Complete

Emission

Non-Emissions

Preparation

Bolt On (Not Required)

Grade Type

Performance

Valve Included

Yes

Camshaft Type

Hydraulic Roller

CNC Ported

No

Cylinder Head Type

Standard

Material

Aluminum

Valve Springs Included

Yes

Finish

Cast

Usage

Racing

Construction Type

Complete

EGR Port

No

Series

Victor Jr.

Intake Valve Diameter

2.20

Exhaust Port Location

+.125

Valve Stem Diameter

0.314961

Exhaust Valve Diameter

1.60

Exhaust Runner Volume

85

Guide Material

Manganese Bronze

Guide Plates Included

No

RGL

WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Combustion Chamber Volume

69

CARB Executive Order Number

D-215-98

Valve Angle

Exhaust 11 X 0 deg/Intake 11 x 3

Seat Angle

Exhaust 39 deg/Intake 37

Retainer Included

Yes

Horsepower

500-650

Intake Runner Volume

280

Seat Material

Ductile Iron

Valve Spring Maximum Lift

0.680

Family

Victor Jr.

Valve Spring Diameter

1.30

Deck Thickness

0.625

Product Series

Victor Jr.

Product Family

Victor

9040

D-215-98
