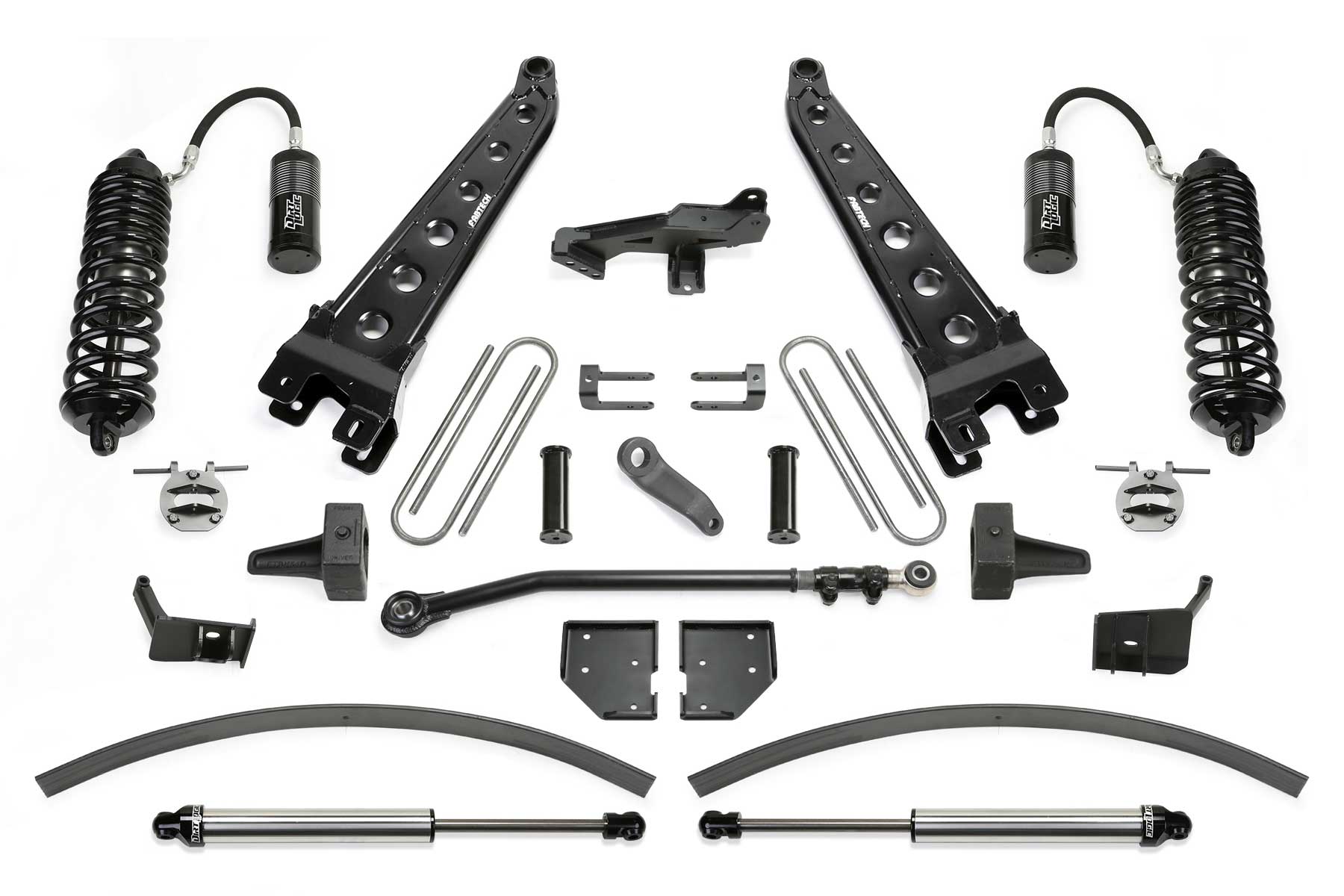

Fabtech's 8-inch Radius Arm System for 2017-2020 Ford F-250/F-350 Super Duty 4WD diesel trucks delivers exceptional strength and performance for demanding on-road and off-road applications. This comprehensive suspension upgrade replaces the factory setup with heavy-duty components engineered from Fabtech's racing experience.
Tubular Radius Arms:
The foundation of this system features Fabtech's legendary tubular radius arms, constructed with a reinforced tubular structure, dimple die side plates, and heavy gusseting. These arms provide significantly greater strength and durability compared to factory stamped components, making them ideal for aggressive off-road use.
Extended Track Bar Design:
Fabtech's exclusive extended-length track bar addresses the hyper-sensitive steering characteristics of late-model Super Duty trucks. This innovative component measures 4 inches longer than stock and features a driver-side offset with a robust 1/4-inch thick steel mounting bracket. The extended design maintains better parallelism between the track bar and drag link compared to factory geometry, reducing steering push and improving response. The system accommodates full lock-to-lock steering with 15.50-inch wide tires mounted on wheels with 4.75-inch backspacing.
Dirt Logic 4.0 Reservoir Coilover Conversion:
The system includes massive Dirt Logic 4.0 reservoir coilovers that deliver outstanding damping capacity for off-road performance while maintaining excellent on-road ride quality. These coilovers bolt directly in place of the factory coil springs without requiring removal of the coil spring buckets. The substantial 4-inch diameter aluminum remote reservoirs mount horizontally above the coilovers, allowing full compression travel even with oversized tires. These are among the largest and most capable coilovers available for Ford Super Duty applications.
Key Features:
- 8-inch lift height for dramatic stance and tire clearance
- Heavy-duty tubular radius arms with dimple die reinforcement
- Extended-length track bar for improved steering geometry
- Dirt Logic 4.0 reservoir coilovers with 2.25-inch rear shocks
- Accommodates 15.50-inch wide tires with proper wheel backspacing
- Bolt-in installation without coil bucket removal
- Designed specifically for 2017-2020 Ford F-250/F-350 4WD diesel models
- Includes 5-year/60,000-mile powertrain warranty
This premium suspension system is engineered for truck enthusiasts who demand maximum performance, strength, and capability from their Super Duty. Each component has been precision-designed to work together as a complete system, delivering professional-grade results for serious off-road adventures and heavy-duty applications.
