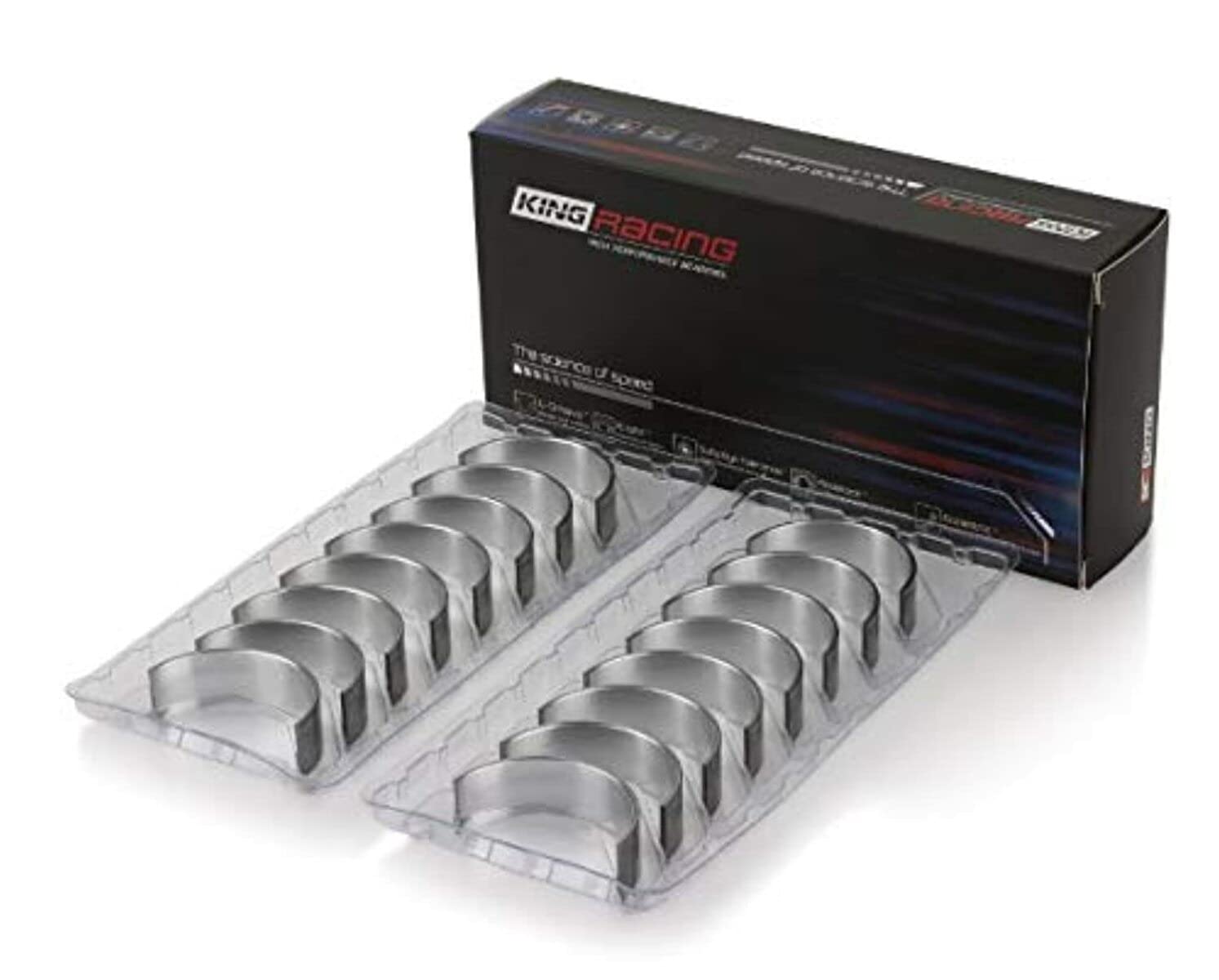

King Engine Bearings CR804XPN001 XP-Series Connecting Rod Bearing Set Ford 260 289 302 5.0L Windsor

(Ford F-150 1975-96, Mustang 1964-73, 1979-95, Explorer 1996-2001, F-250 1969-97, Bronco 1966-77, 1980-96, Thunderbird 1977-88, 1991-93 + 80 more models)

Manufacturer

Part Number

CR804XPN001
Sale Price

$113.90

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The King Engine Bearings CR804XPN001 is a high-performance XP-Series connecting rod bearing set engineered for Ford 260ci, 289ci, and 302ci (5.0L) Windsor small block V8 engines. This is a race-grade solution built for builders who demand maximum reliability under sustained high-load and high-RPM conditions.

pMax Black Tri-Metal Construction:

  • pMax Black™ tri-metal structure delivers a 29% increase in overlay hardness and 24% increase in load capacity compared to conventional tri-metal bearings
  • Layers copper/lead babbitt over a nickel barrier plate and steel backing, bonded using King's proprietary SecureBond adhesion process for superior stability and durability
  • Race-grade design engineered for engines subjected to continued, sustained stress — road racing, circle track, and high-performance street applications

XP-Series Geometric Features:

  • Narrowed crank cheek side design accommodates large-radius aftermarket crankshafts
  • Increased crush height improves bearing-to-bore contact and heat transfer
  • Reduced spin potential at high RPM for added reliability under race conditions
  • Bulls Eye Tolerance: all shells matched to within 0.0001" for the tightest wall tolerances in the industry

Set Details:

  • Includes 8 pairs of connecting rod bearing shells
  • Fits Ford 221ci, 255ci, 260ci, 289ci, and 302ci Windsor V8 engines
  • Available in standard and a wide range of over- and undersizes

King Engine Bearings focuses exclusively on bearing manufacturing, bringing aviation and motorsport precision to every set. The CR804XPN001 XP-Series rod bearings are the ideal choice for performance builds using forged steel aftermarket crankshafts that demand more than a standard replacement bearing can provide.

Products specifications

Fits

Ford F-150 1975-96, Mustang 1964-73, 1979-95, Explorer 1996-2001, F-250 1969-97, Bronco 1966-77, 1980-96, Thunderbird 1977-88, 1991-93, F-350 1972-98, Maverick 1970-77, Galaxie 500 1962-74, F-100 1969-83, Fairlane 1962-70 + 75 more models

Undersize

001

Material

pMax Black (racing line)

Housing Diameter

56.89 / 56.87 mm || 2.240 / 2.239 inch

Shaft UnderSize

001

STD Shaft Diameter

53.94 / 53.92 mm || 2.124 / 2.123 inch

STD Max Thickness

1.462
