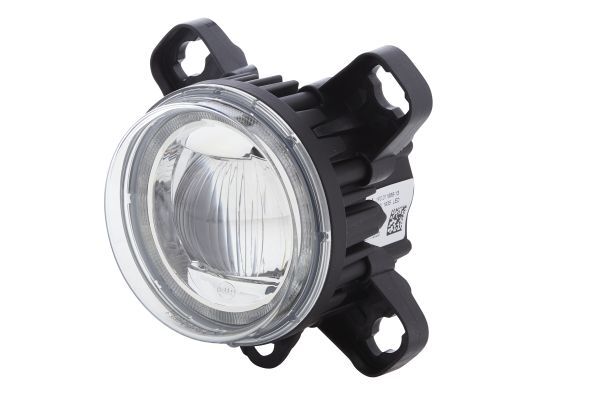

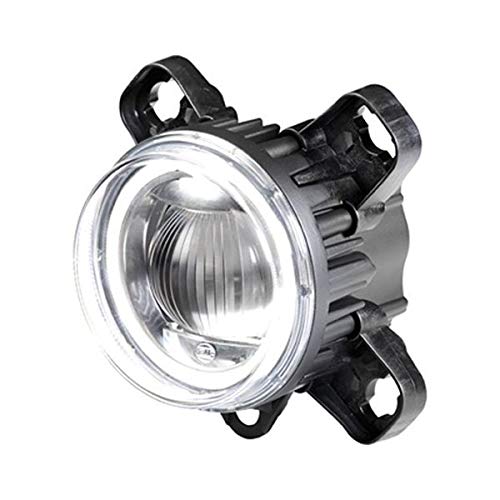

The Hella 011988131 is a 90mm L4060 LED High Beam Headlamp Module featuring integrated Daytime Running Light (DRL) and Position Light functions. Designed for the Performance Mount configuration, this round module is dual-voltage compatible (9–33V / Multivolt) and carries both EC and SAE approvals, making it suitable for a wide range of on- and off-highway applications including trucks, buses, tractors, motorhomes, motorcycles, and specialty vehicles.
Part of Hella's renowned 90mm modular headlamp system, the L4060 Performance series delivers superior LED light output in a compact, maintenance-free package. The crystal-clear lens produces a daylight-like color temperature that enhances nighttime visibility and reduces driver fatigue. With passive cooling and no moving parts, this module requires no bulb replacements and is rated for more than 15,000 operating hours.
Key Features:
- 90mm round LED headlamp module — L4060 Performance series
- Three integrated functions: High Beam, Daytime Running Light (DRL), and Position Light
- Multivolt operation: 9V–33V (compatible with 12V and 24V systems)
- Passive cooling design — no fan, no moving parts, maintenance-free
- Crystal-clear lens with black aluminum housing
- Flush / Performance Mount configuration (mounting frame sold separately)
- Integrated 4-pin FEP plug connection (FEP-to-DT conversion pigtail available separately: 202117001)
- EC (ECE R87 / R7 / R10) and SAE approved
- 500mm cable included
- Universal fit — ideal for retrofits and custom installations
OEM Cross-References: Mercedes-Benz 000 544 32 47 / A 000 544 32 47, Volvo 2 304 817 2, Holmer 1019057419, Hitachi YA0007818500, AGCO ACW051198A / ACW051198B, Kässbohrer 7.512.322.000.0, Norton 6700079, Goldhofer 261270. Also known as Hella part 1F0 011 988-131.
The Hella 90mm modular headlamp system is the industry standard for commercial, agricultural, powersports, and specialty vehicle front lighting, offering unmatched flexibility and a proven track record across demanding working environments worldwide.
