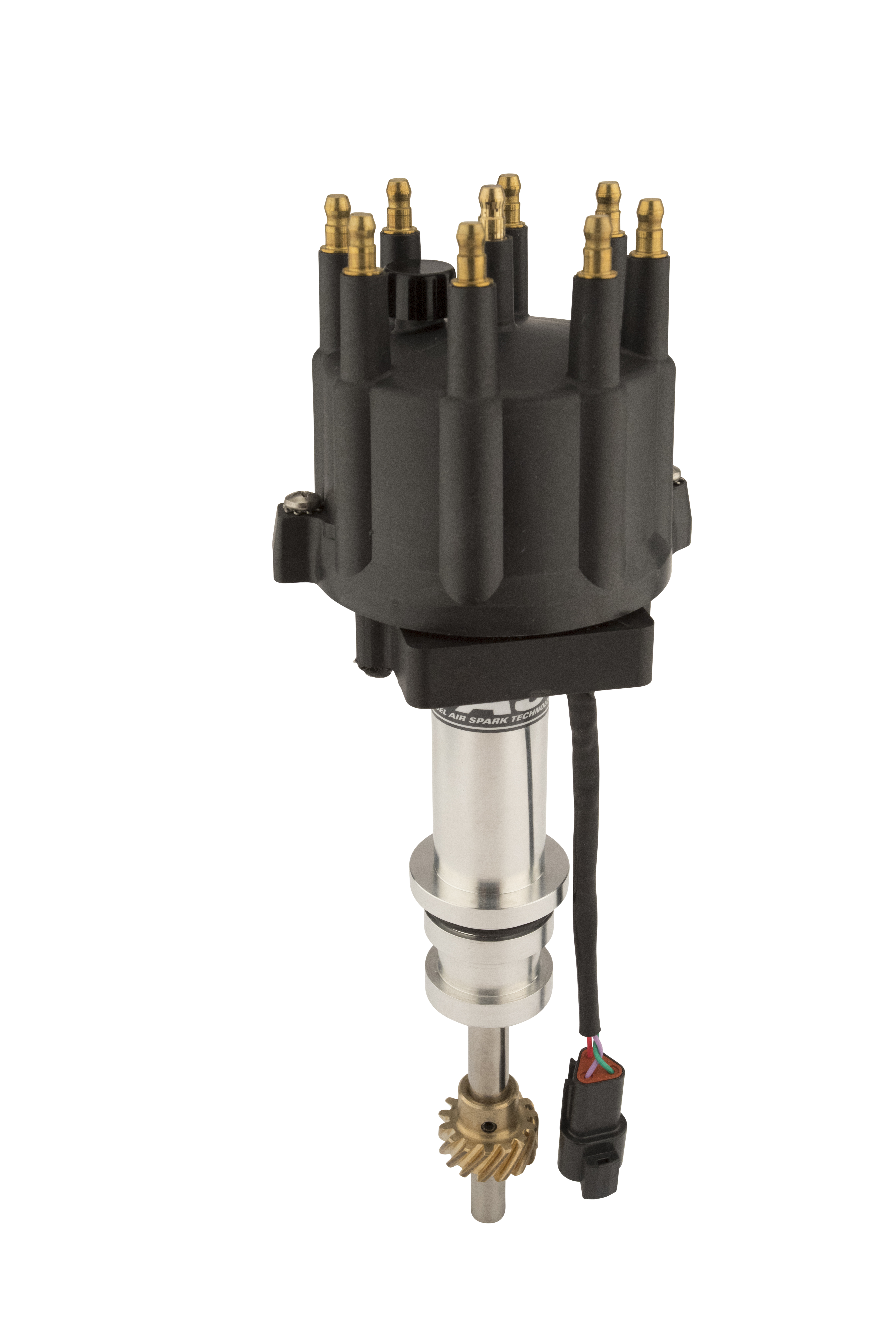

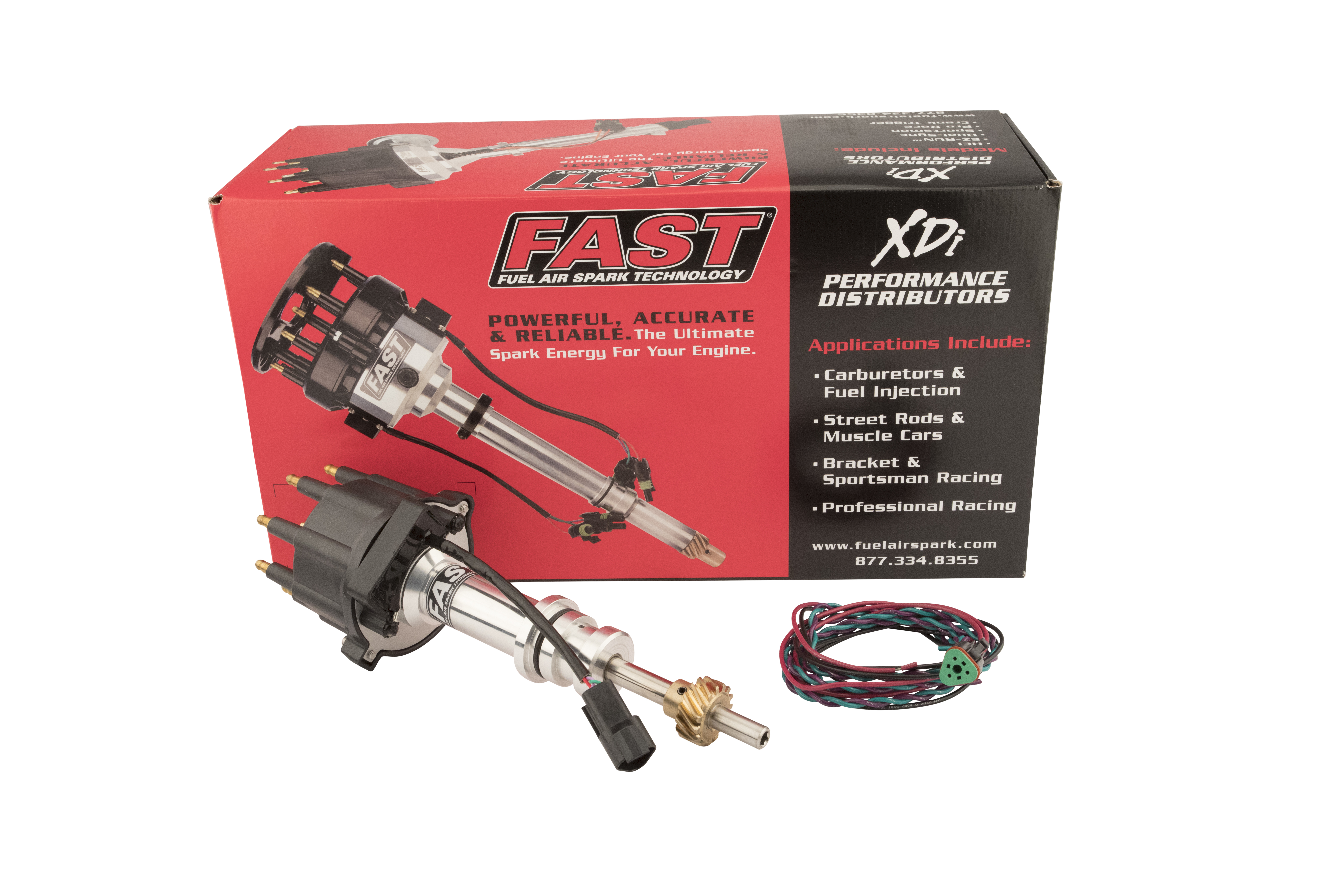

FAST 1000-1611B XDi Sportsman Billet Distributor Small Cap Small Block Ford Bronze Gear

The FAST 1000-1611B XDi Sportsman Distributor is a race-grade billet distributor engineered for small block Ford Windsor engines. Featuring a small-diameter GM points-style cap with HEI terminals and a precision-machined bronze gear, this distributor is purpose-built to deliver rock-solid timing accuracy from idle through peak race RPM.

At the heart of the XDi Sportsman is an advanced Hall-effect style trigger pickup that converts its signal into a format compatible with most CD ignition controls. Unlike traditional magnetic pickups, the Hall-effect design eliminates magnetic pickup compensation—commonly known as retard—ensuring timing stability across the entire RPM range without drift or variation.

The CNC-machined billet aluminum housing encloses a polished stainless steel shaft supported by a sealed ball bearing at the top and a long bushing at the bottom. FAST has also minimized shaft end play to prevent timing inconsistencies and reduce gear wear over time.

Key Features:

• Advanced Hall-effect trigger pickup — compatible with most CD ignition controls
• Eliminates magnetic pickup compensation (retard) for stable timing at all RPM levels
• CNC-machined billet aluminum housing for precision and durability
• Polished stainless steel shaft with sealed top ball bearing and long bottom bushing
• Minimized shaft end play reduces timing variation and gear wear
• Small-diameter cap (GM points style) with HEI terminals
• Precision-machined bronze gear — ideal for use with roller camshafts
• Fully locked-out advance — no mechanical advance mechanism
• Includes high-quality rotor and distributor cap
• Sold individually

Important: This distributor requires a compatible FAST Ignition Control (E6 or E7 series) for operation. Timing advance is fully locked out and must be managed electronically through the ignition control.
