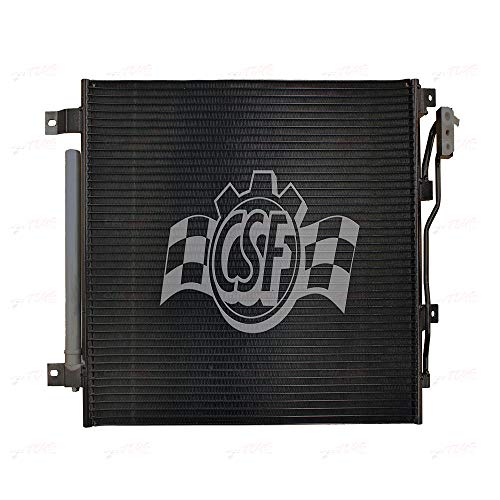

CSF 10699 OE-Style Parallel Flow A/C Condenser

The CSF 10699 is a direct-fit, OE-style air conditioning condenser engineered to restore factory A/C cooling performance. Built to meet OEM specifications, this replacement A/C condenser delivers the fit, quality, and performance of the original equipment condenser — without the dealer price tag.

CSF's advanced technology parallel flow construction allows refrigerant to pass through multiple flat tubes simultaneously, maximizing heat dissipation and reducing pressure drop for efficient air conditioning operation. The condenser is compatible with both R12 and R134A refrigerants and is manufactured from non-hazardous materials.

Key Features:

• Parallel flow construction for improved cooling efficiency and heat exchange
• 5/8-inch core thickness for durability and effective cooling capacity
• Core dimensions: approximately 17-1/3 inches wide × 24-5/6 inches long
• Block fitting inlet and outlet tubes for secure, leak-resistant refrigerant line connections
• Compatible with R12 and R134A refrigerant systems
• Manufactured to OEM specifications — no remanufactured components
• Lightweight design at approximately 11.5 lbs for easier handling during installation

When replacing the A/C condenser, it is recommended to inspect related components such as the receiver drier, expansion valve, and all O-rings and seals. A full system evacuation and recharge will be required after installation.
