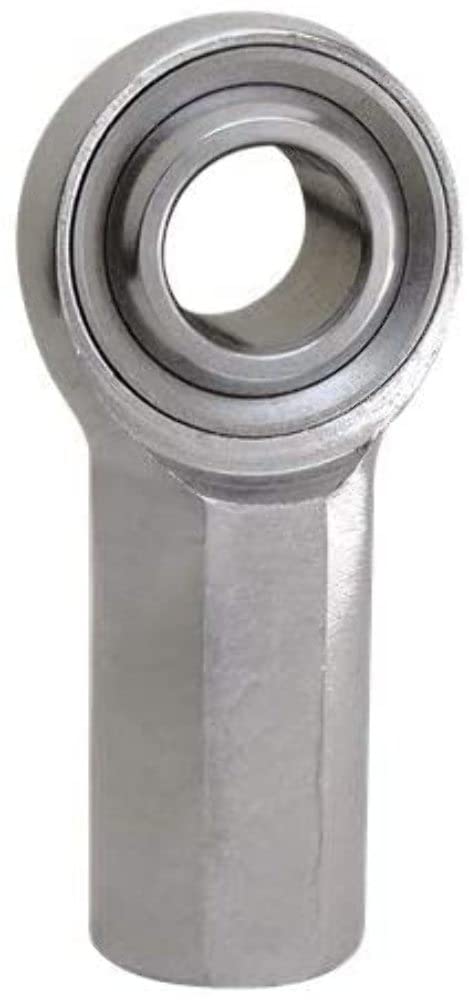

QA1 KFL8 K Series 3-Piece Carbon Steel Rod End Female 1/2in. Bore 1/2-20 LH Thread

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

KFL8
6 reviews
Sale Price

$11.61

Estimated ship date Saturday, November 21

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 KFL8 is a KF Series three-piece carbon steel female rod end featuring a 1/2 in. bore and 1/2-20 left-hand thread. Built for precision and high-load applications, this rod end delivers tighter tolerances through a higher ball-to-race conformity design — making it an excellent choice for demanding suspension, steering linkage, and performance fabrication work.

Key Features:

  • Three-piece construction with female mounting and 1/2 in. bore
  • 1/2-20 UNF left-hand thread for use in applications requiring reverse-threaded fasteners
  • Ball: 52100 bearing steel — heat treated, hard chrome plated, and precision ground for strength and wear resistance
  • Race: Alloy steel, corrosion and wear resistant
  • Body: Carbon steel with protective coating for corrosion resistance
  • Higher ball-to-race conformity for tighter tolerances in precision applications
  • Open, non-relubricatable enclosure (metal-to-metal style)
  • Available individually (sold each)

QA1's KF Series rod ends are engineered for both street and motorsport applications where consistent performance and dimensional accuracy are critical. The hard chrome plated ball and protective body coating extend service life even in harsh operating environments.

Products specifications

A (+/-0.015)

2.125

Approx Bearing Weight

0.33

B (+0.0015/-0.0005)

0.5

Ball Dia Ref

0.937

C (+0.062/-0.031)

1.187

D (+/-0.010)

1.312

E (+/-0.010)

0.875

F (+/-0.010)

0.75

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

12

Notes

Only rod end ball and race are heat-treated.

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

0.625 in.

Rod End Centerline Length

2.125 in.

Rod End Construction

3-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.500 in.

Rod End Head Diameter

1.312 in.

Rod End Head Width

0.625 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

12 degrees

Rod End Static Load Capacity

6,660 lbs.

Rod End Style

Metal to metal

Rod End Thread Size

1/2-20 LH in.

T (+/-0.005)

0.5

Thread Length

1.187 in.

Thread Type

Left Hand

Thread UNF-2B

1/2 -20

UTL Radical Static

6660

W (+0.000/-0.005)

0.625

Title

QA1 Suspension Rod End Bearing KFL8

Prop 65

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
