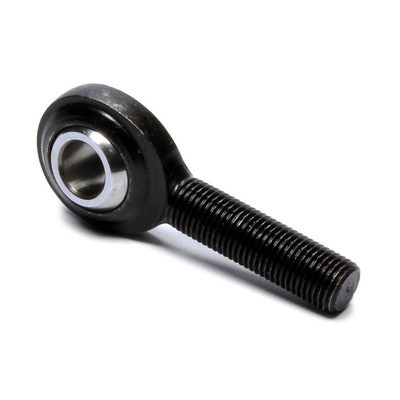

QA1 PCMR12S PC Series 2-Piece Alloy Rod End 3/4 in. Bore 3/4-16 RH Male Thread Stud Mount

The QA1 PCMR12S is a PCM Series 2-piece chromoly steel rod end featuring a 3/4 in. bore, 3/4 in.-16 right-hand male thread, and a pre-attached stud configuration for easy installation and higher misalignment angles than standard bolt-mounted applications. Designed for high-performance steering and suspension systems, this rod end delivers superior load capacity compared to conventional carbon steel two-piece rod ends.

Key Features:

• 2-piece chromoly steel construction ? heat-treated body for maximum strength and durability
• Black oxide coated body ? provides corrosion resistance in harsh environments
• 52100 bearing steel ball ? heat treated, precision ground, and hard chrome plated for smooth articulation and long service life
• 3/4 in. bore / 3/4 in.-16 right-hand male thread ? fits common performance steering and suspension rod configurations
• Pre-attached stud ? simplifies installation and allows for greater misalignment than bolt-through setups
• Metal-to-metal design ? engineered for high-load performance applications
• Sold individually

The QA1 PCM Series rod end is a go-to choice for racing and high-performance street applications where steering precision and structural integrity are critical. The chromoly construction and precision-ground ball make it ideal for use in tie rod ends, panhard bars, and custom suspension linkages demanding the highest load ratings available in a 2-piece design.
