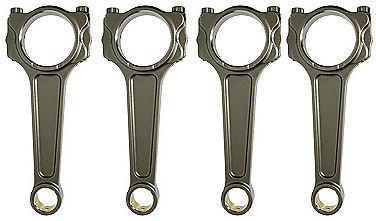

Manley 14405R6-1 Pro Series I-Beam Turbo Tuff Connecting Rod Honda K24

The Manley 14405R6-1 is a single Turbo Tuff Pro Series I-Beam connecting rod designed for 2002 and newer Honda CR-V K24 engines. This precision-engineered connecting rod represents Manley's commitment to excellence in high-performance engine components.

Construction and Materials:

• Forged from aircraft-quality 4340 vacuum degassed steel for exceptional strength and durability
• Fully machined in Manley's Lakewood, New Jersey facility to exacting tolerances
• Shot peened after machining and magnafluxed for quality assurance
• Bores are round and without taper for precise bearing fit
• Bend and twist tightly controlled to ensure proper alignment

Specifications:

• Center-to-center length: 5.984 inches
• Pin size: 22mm (0.866 inches)
• Big end housing bore: 2.008 inches
• Big end width: 0.780 inches
• Typical weight: 610 grams
• Bushed for full-floating piston pin design
• Available with 3/8" ARP2000 bolts or upgraded ARP Chromoly 625+ hardware

Performance Capabilities:

• With ARP2000 hardware: Supports builds up to 800 horsepower
• With ARP 625+ hardware upgrade: Capable of handling up to 1000 horsepower
• Recommended torque with Manley lube: 55 ft-lbs
• Recommended bolt stretch with Manley lube: 0.0065"-0.0075"

The Turbo Tuff design combines optimal weight distribution with rugged strength specifically engineered for turbocharged and high-horsepower naturally aspirated applications. This single replacement rod is ideal for engine rebuilds where only one rod needs replacement, ensuring proper weight matching within your connecting rod set.

Application: Compatible with Honda K24A1, K24A2, K24A3, K24A4, K24A6, K24A8, and K24Z7 engines found in 2002-up Honda CR-V, Acura TSX, Honda Accord, and Honda Element models.
