QA1 CML10-12T C Series 2-Piece Carbon Steel Male Rod End 5/8 in. Bore 3/4-16 LH PTFE Lined

Manufacturer

Part Number

CML10-12T

7 reviews

Sale Price

$14.71

Estimated ship date Saturday, November 21

Check out with

No Hassle Returns

Live-in-stock inventory

Fitment guaranteed

Show details for QA1 CML10-12T C Series 2-Piece Carbon Steel Male Rod End 5/8 in. Bore 3/4-16 LH PTFE Lined

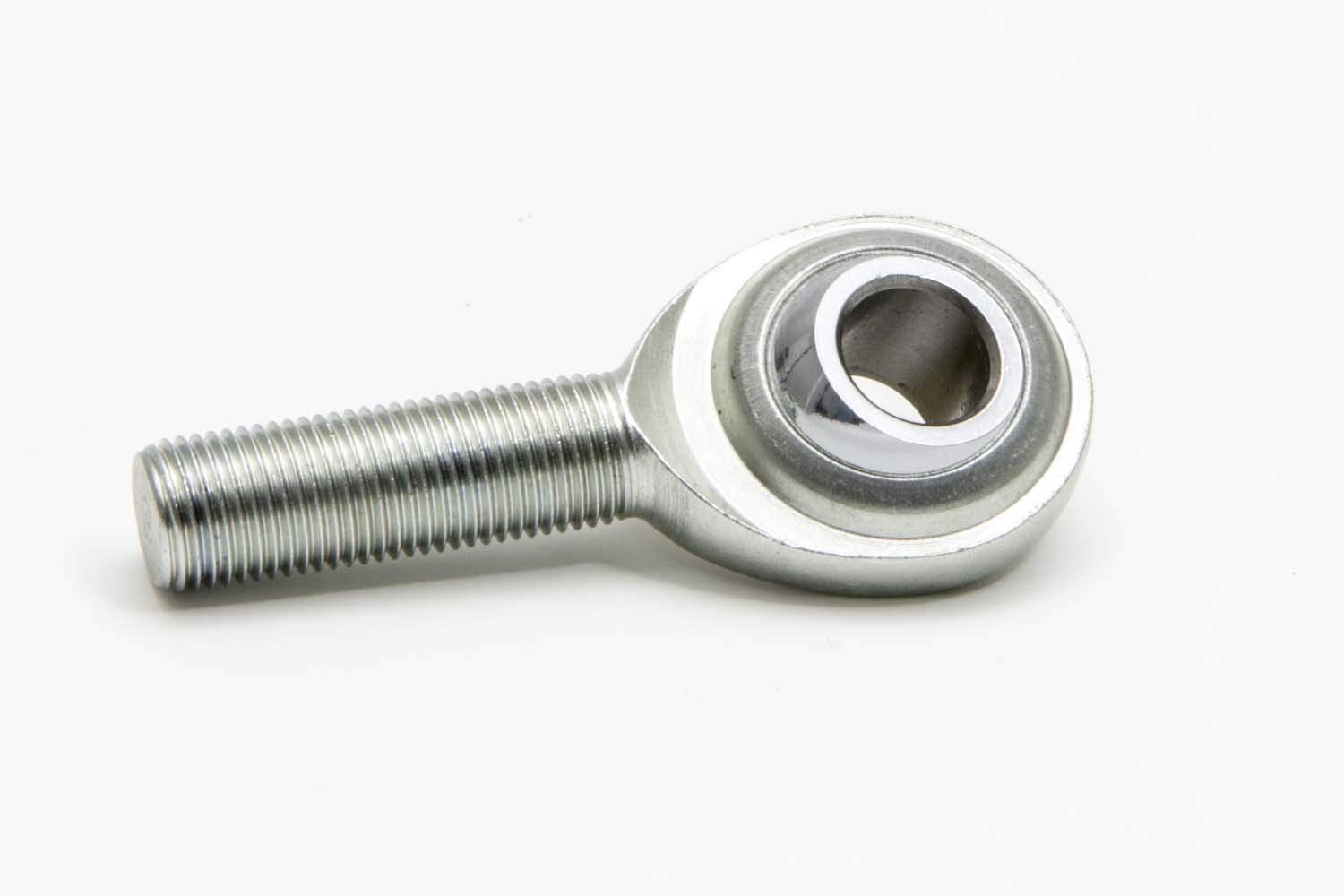

Picture of QA1 CML10-12T C Series 2-Piece Carbon Steel Male Rod End 5/8 in. Bore 3/4-16 LH PTFE Lined

QA1 CML10-12T C Series 2-Piece Carbon Steel Male Rod End 5/8 in. Bore 3/4-16 LH PTFE Lined — image 1

QA1 CML10-12T C Series 2-Piece Carbon Steel Male Rod End 5/8 in. Bore 3/4-16 LH PTFE Lined — image 2

Product Details

The QA1 CML10-12T is a C Series 2-piece carbon steel male rod end featuring a 5/8 in. (0.625 in.) bore and 3/4 in.-16 left-hand thread. This rod end uses QA1's economical "mohawk" swaged two-piece design, where the body is swaged around the ball on each side to secure it in place. A self-lubricating PTFE liner reduces maintenance requirements and provides smooth, consistent articulation under load.

The CML10-12T is protective coated for corrosion resistance, making it suitable for a wide range of light-duty to moderate-duty performance and racing applications. Available in both right- and left-hand thread configurations across the CM-T Series lineup.

Ball Specifications:

52100 Bearing Steel
Heat Treated
Hard Chrome Plated
Precision Ground

Body Specifications:

Carbon Steel Construction
Protective Coated for Corrosion Resistance
PTFE Lined for Self-Lubrication

Key Specs:

Series: C Series (2-Piece / CM-T)
Style: Male, Left-Hand Thread
Bore Diameter: 5/8 in. (0.625 in.)
Thread Size: 3/4 in.-16 LH
Liner: PTFE (Teflon)
Sold Individually

Products specifications

A (+/-0.015)

2.875

Approx Bearing Weight

0.51

B (+0.0025/-0.0005)

0.625

Ball Dia Ref

1.125

C (+0.062/-0.031)

1.75

D Ref

1.75

Grease Fitting

Heat-Treated

Yes

Jam Nut Included

Misalign Angle

Notes

Only rod end ball is heat treated.

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.750 in.

Rod End Centerline Length

2.875 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.625 in.

Rod End Head Diameter

1.750 in.

Rod End Head Width

0.750 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

26 degrees

Rod End Static Load Capacity

11,385 lbs.

Rod End Static Load Capacity (lbs)

14,214 lbs.

Rod End Style

Teflon® lined

Rod End Thread Size

3/4-16 LH in.

Thread Length

1.750 in.

Thread Type

Left Hand

Thread UNF-3A

3/4 -16

UTL Radical Static

14214

W (+/-0.005)

0.75

Title

QA1 Suspension Rod End Bearing CML10-12T
