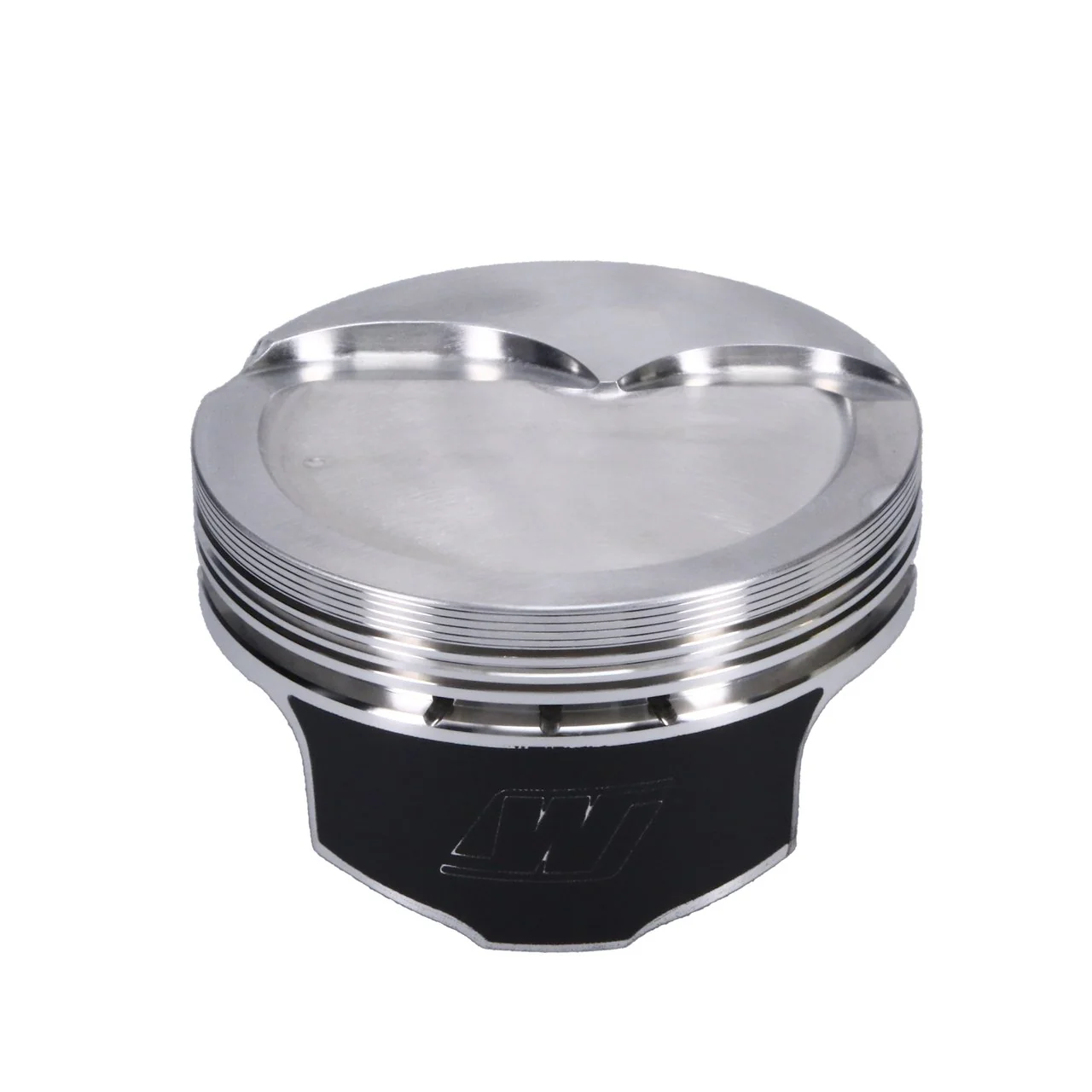

Wiseco 6445RX3903 Chevy LS Series -15cc R/Dome Forged Piston Shelf Stock 3.903 in. Bore

(1998-2002 Chevrolet Camaro SS/Z28; 1997-2004 Chevrolet Corvette Base; 2004 Pontiac GTO; 1998-2002 Pontiac Firebird Formula)

Manufacturer

Picture for manufacturer Wiseco Pistons

Part Number

6445RX3903
6 reviews
Sale Price

$168.99

Estimated ship date Friday, October 30

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco 6445RX3903 is a Professional Series shelf stock forged piston designed for the Chevrolet LS engine family. Featuring a -15cc reverse dome (R/Dome) crown, a 3.903 in. bore diameter, and a 1.110 in. compression height, this single piston is engineered to deliver precision fitment and maximum performance in high-output and race-built LS applications.

Key Features:

  • Bore Diameter: 3.903 in.
  • Compression Height: 1.110 in.
  • Pin Diameter: 0.927 in.
  • Crown Volume: -15cc Reverse Dome (R/Dome)
  • Sold as: Single piston (shelf stock)
  • Material: 2618 high-strength aluminum alloy for superior tensile strength and heat resistance
  • ArmorGlide? Skirt Coating: Reduces friction, resists seizure, and promotes quieter operation
  • Fully machined crown features with precision ring grooves for maximum ring seal and minimized blow-by
  • Valve pocket design allows maximum airflow around valves and accommodates oversized valves and high-lift camshafts
  • Engineered, forged, and machined in the USA at Wiseco's Mentor, Ohio facility

Wiseco's Professional Series pistons are no-expense-spared components built for serious engine builders tackling heavy to severe-duty race builds. The R/Dome crown geometry is optimized for detonation resistance and improved quench characteristics during the compression and combustion cycle, contributing to increased horsepower potential and longer engine life. This shelf stock piston ships ready to install and is compatible with standard LS rod and pin combinations using the 0.927 in. pin diameter.

Products specifications

Fits

1998-2002 Chevrolet Camaro SS/Z28; 1997-2004 Chevrolet Corvette Base; 2004 Pontiac GTO; 1998-2002 Pontiac Firebird Formula

Bore

3.895

Comp Ratio @ 65CC

10.2:1

Comp Ratio @ 67CC

10:1

Comp Ratio @ 68CC

9.9:1

Comp Ratio @ 70CC

9.7:1

Dome Volume

-15

Gram Weight

396

Rod

6.098 / 6.125
