Wiseco 6454RX3 Forged Piston Chevy LS Series Reverse Dome Bore - 14cc 4.030

(1998-2002 Chevrolet Camaro SS/Z28; 1997-2004 Chevrolet Corvette Base; 2004 Pontiac GTO; 1998-2002 Pontiac Firebird Formula)

Manufacturer

Part Number

6454RX3
Sale Price

$168.99

Estimated ship date Monday, November 30

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

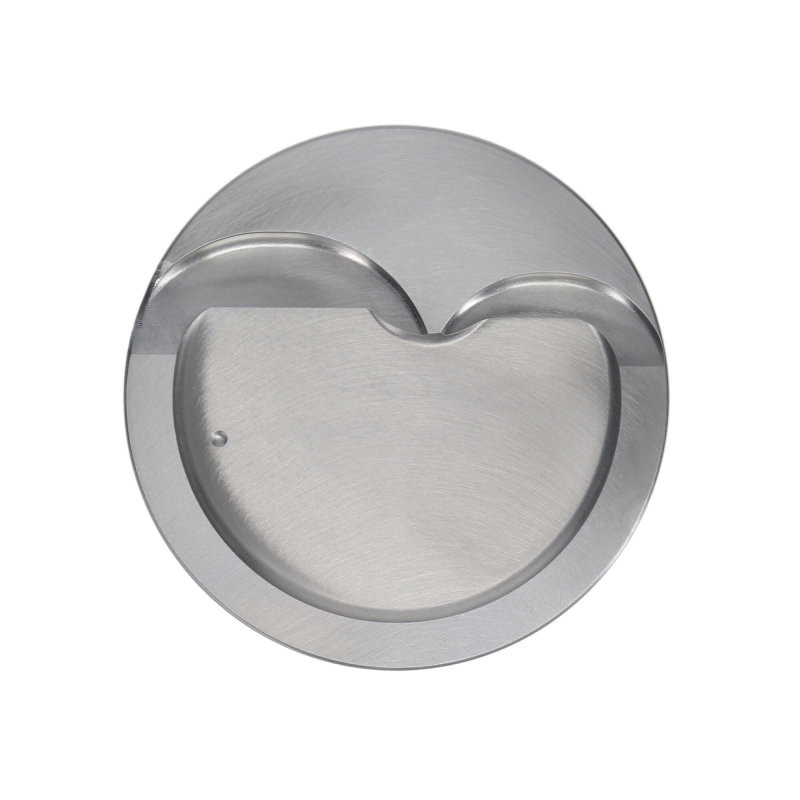

The Wiseco 6454RX3 is a shelf-stock, single Professional Series forged piston engineered for Chevrolet LS platform engines. Featuring a 4.030-inch bore, 1.050-inch compression height, 0.927-inch pin diameter, and a -14cc reverse dome (R/Dome) crown, this piston is purpose-built for high-compression LS performance and race builds.

Wiseco's Professional Series pistons are designed and manufactured entirely in the USA using 2618 aerospace-grade aluminum alloy. The forging process densifies the aluminum's molecular structure and aligns grain flow, delivering superior resistance to impact, fatigue, and tensile stress compared to cast alternatives ? critical in boosted or high-horsepower LS applications.

Key Features:

  • 4.030 in. bore ? compatible with standard and mildly over-bored LS cylinder bores
  • 1.050 in. compression height ? precise deck clearance for LS stroker and short-rod combinations
  • 0.927 in. pin diameter ? standard LS wrist pin sizing
  • -14cc reverse dome (R/Dome) ? designed to elevate compression ratios in open-chamber LS cylinder heads
  • 2618 forged aluminum construction ? engineered and forged in the USA for maximum tensile strength and durability
  • ArmorGlide? skirt coating ? reduces operating friction, minimizes cylinder wall wear, and promotes quieter operation
  • Fully machined crown ? precision-machined features including ring grooves, anti-detonation groove, and ring seal enhancements
  • Forced pin oiling ? maintains wrist pin lubrication under extreme load and RPM
  • Shelf stock ? single piston ? available individually for replacement or mixed builds

Built for serious racers and engine builders, the Wiseco 6454RX3 Professional Series piston delivers the durability and precision required for heavy-duty and severe-duty LS race applications, from drag racing to circle track.

Products specifications

Fits

1998-2002 Chevrolet Camaro SS/Z28; 1997-2004 Chevrolet Corvette Base; 2004 Pontiac GTO; 1998-2002 Pontiac Firebird Formula

Bore

4.025

Comp Ratio @ 65CC

10.7:1

Comp Ratio @ 67CC

10.5:1

Comp Ratio @ 68CC

10.3:1

Comp Ratio @ 70CC

10:1

Dome Volume

-14

Gram Weight

435

Rod

6.125

Stroke

4.100 / 4.125

Piston Quantity

1

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Engine

LS

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.030

Industry

Automotive

Product Market

Domestic

Engine Type

ICE

Oil Ring Thickness

3.0

Wrist Pin Material

5115

Product Series

Professional

Product Type

Engine Piston

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Piston Volume

-14.00

Second Compression Ring Thickness

0.047

Top Compression Ring Thickness

0.047

EBAY Category ID

33623

Engine - Web

LS

Make - Web

Chevrolet

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Compression Height

1.0505

Title

Wiseco - Chevrolet, LS, 4.030 in. Bore, Piston

Title - Web

Professional Chevy LS Piston - 4.030 in. Bore - 1.0505 .in CH, -14.00 CC
