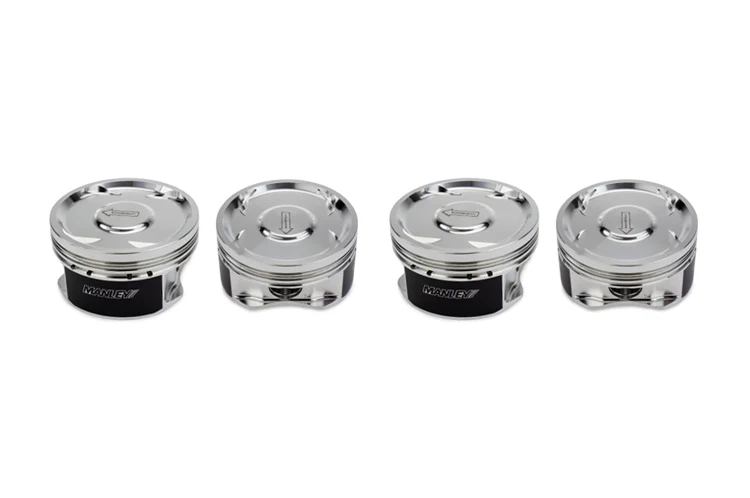

Manley 621105C-4 Performance Forged Pistons 100mm Bore Dish Top for Subaru

(2004-2012 Subaru Impreza)

Manufacturer

Part Number

621105C-4
Black Friday Price

$741.18

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 621105C-4 Platinum Series Forged Piston Set is engineered for high-performance Subaru EJ257 engines. This complete 4-piston set features 100.00mm bore diameter and 1.285-inch compression height with a dish design for optimal combustion chamber configuration.

Platinum Series Construction:

  • Forged from domestic 2618 high-strength aluminum alloy for superior durability under extreme conditions
  • Moly-coated skirts reduce friction and protect cylinder walls
  • Lightweight design with offset wrist pin placement for quieter cold starts
  • Cam and barrel skirt profiles generate substantial power while being gentle on cylinder walls
  • Pressure balance groove enhances piston stability at high RPM

Complete Kit Includes:

  • (4) Forged pistons with dish top design
  • (4) Premium steel top ring sets with Napier second rings
  • (4) Tool steel wrist pins
  • (4) Round wire locks
  • Higher tension oil rings for improved oil control

Advanced Manufacturing:

  • Unique fixturing ensures ultimate ring groove to skirt squareness through single-operation machining
  • Exacting ring lands and grooves for enhanced ring seal and increased power output
  • Will accommodate +1mm oversized valve configurations

Recommended piston clearance: 0.003 inch for mildly boosted applications and 0.0035 inch for highly boosted applications, measured at 0.850 inch from the bottom of the oil ring. Designed for professional engine builders and performance enthusiasts seeking proven reliability and maximum power output.

Products specifications

Fits

2004-2012 Subaru Impreza

Bore

100mm (+.5mm)

Comp Distance

1.285"

Comp Ratio

9.8:1

Cylinder Head

51cc

Dome Volume

-6cc

Piston Type

Dish

Rod Length

5.141"mm

Stroke

75mm

Weight

449g

Piston Quantity

4

Bore Diameter

100.00

Make

SUBARU

Piston Head Type

Dish

Compression Height

1.285

Engine Type

ICE

Product Type

Engine Piston Kit

Piston Volume

-6.00

Piston Series

Platinum Series

Piston Sub-Series

Standard

Engine

2.5L EJ257 WRX STi

Compression Ratio

9.80:1

Bore Oversize

+0.50

Engine Stroke

75.00

Title

Manley Piston Set, PIST-SUBARU 100mm/1.285 CD/DFLAT TOP

Engine Stroke Type

2.35L De-Stroked
