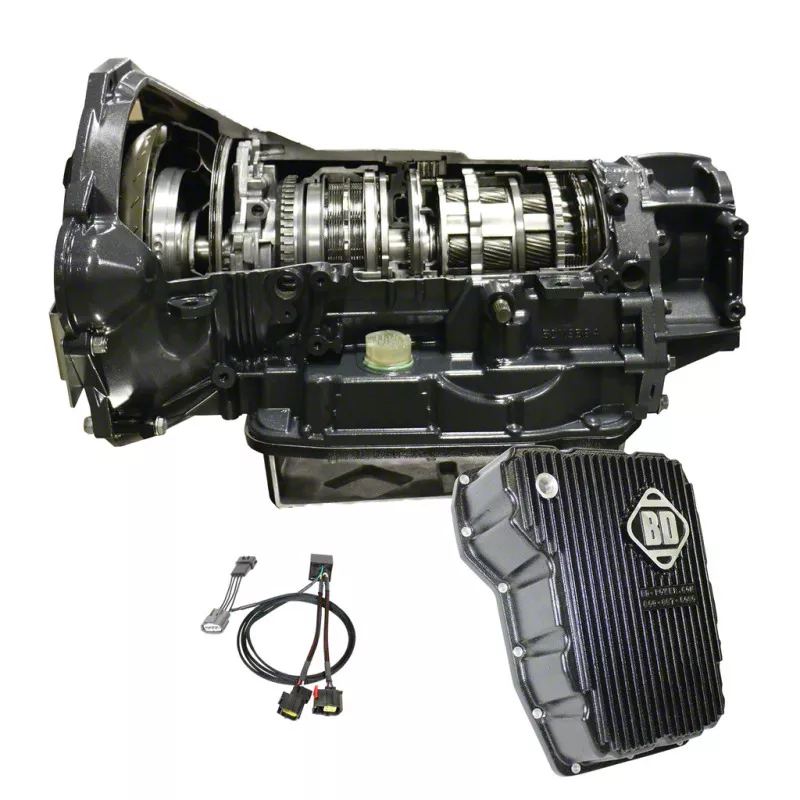

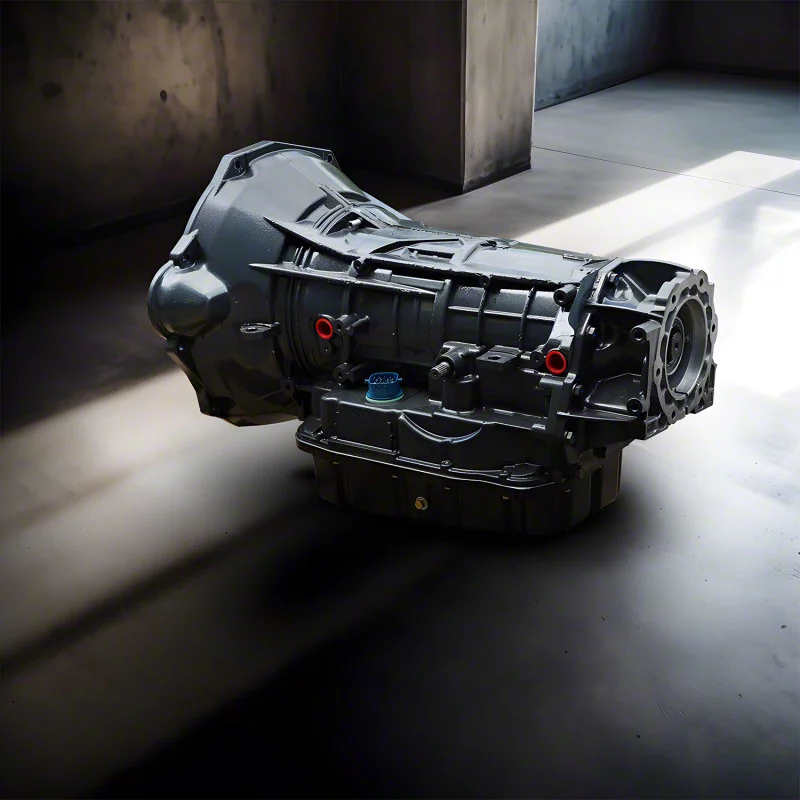

BD Diesel 1064262 TowMaster 68RFE Automatic Transmission 2007.5-2018 Dodge Ram 2WD

The BD Diesel TowMaster 68RFE is an industry-leading performance transmission designed to address the common failures found in stock 68RFE transmissions. This upgraded transmission features custom billet QT100 reaction plates, a longer "Big Stack" spline overdrive shaft, and 16 frictional surfaces to eliminate burnt overdrive clutches. Every BD 68RFE is built to withstand 250 psi of line pressure for unrivaled torque holding capacity.

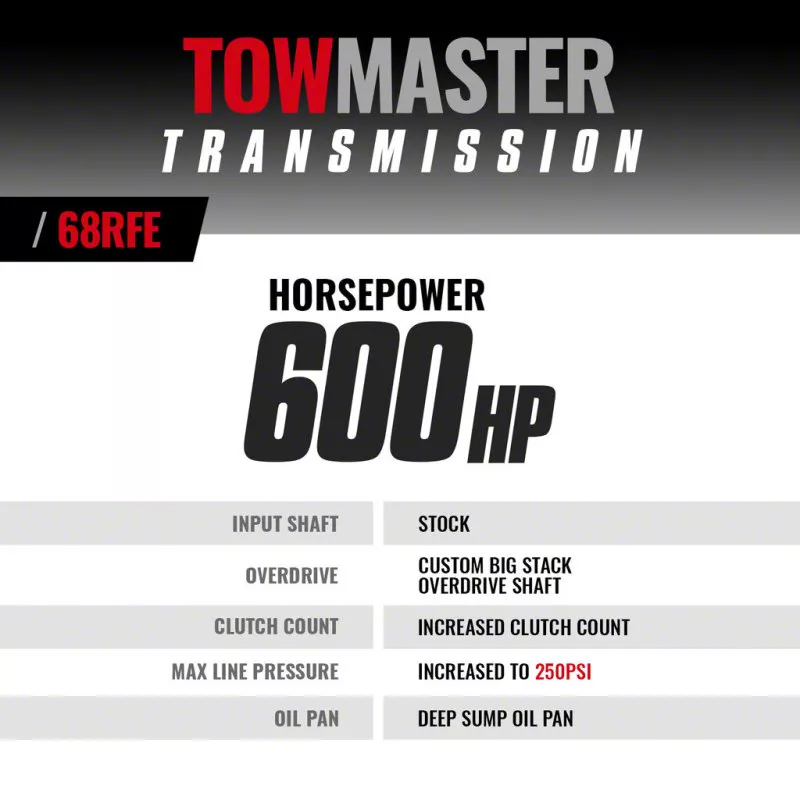

Key Performance Features:

• BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to dynamically adjust pressure based on engine load
• Hard anodized valve body with new solenoid pack installed in every unit
• Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
• Overdrive clutches increased 33% and 2C clutches increased 33% over stock
• Heavy duty cam and roller design low reverse one way clutch
• BD deep sump oil pan adds extra fluid and cooling capacity while reducing case flex

Enhanced Components:

• Durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
• Steel girdle added to 2C piston to allow for more clutches and broader apply area
• 4th gear apply piston modified to accept new heavier billet retainer
• TCC limit valve machined and sleeved to address high wear area within pump

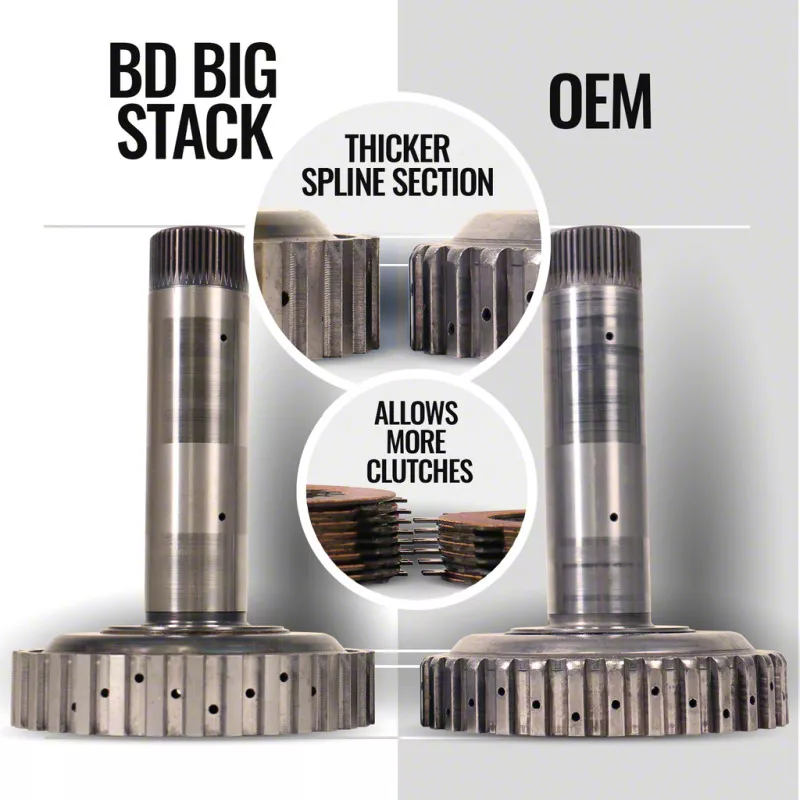

• Custom Big Stack overdrive shaft for increased strength

For towing, street or track applications, the BD TowMaster transmission is engineered to stand up to your diesel's power and torque demands. This transmission is backed by a 36 month/150,000 mile limited warranty. Application-specific for 2007.5-2018 Dodge/Ram 2WD trucks equipped with 68RFE transmissions.

Note: Use of third party or OE converter will invalidate transmission warranty. BD torque converter must be used.
