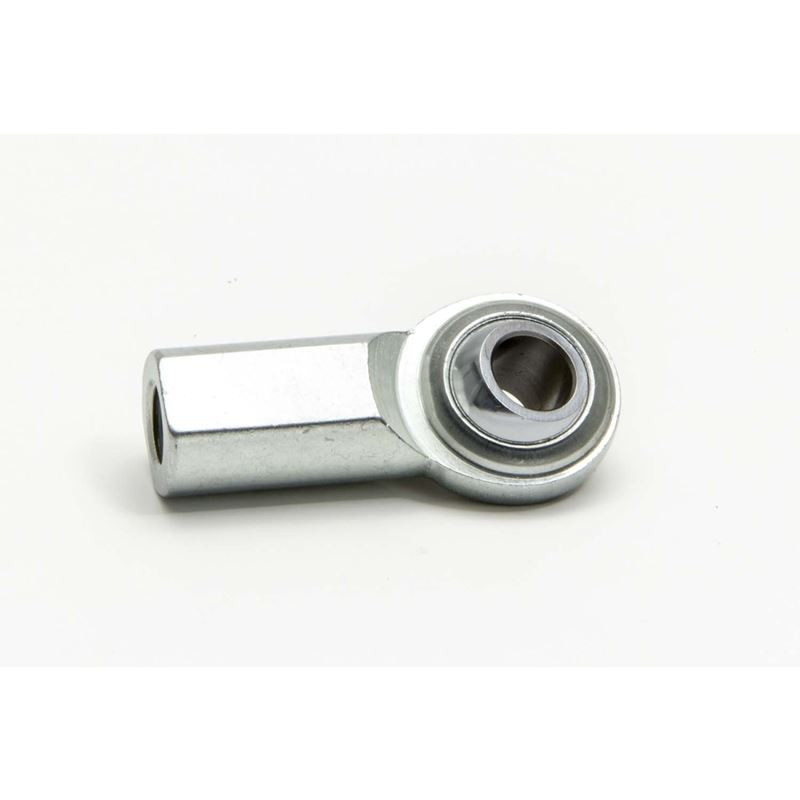

QA1 CFL-12 CF Series Rod End 3/4in Bore Female Left Hand Thread

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

CFL-12
9 reviews
Sale Price

$11.97

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 CFL-12 is a traditional carbon steel two-piece female rod end from the CF Carbon Steel Series, offering an economical yet durable solution for suspension and steering linkage applications. Featuring a coated carbon steel body and a heat-treated ball, this rod end is built to perform and last.

Key Specifications:

  • Thread Size: 3/4 inch-16 left hand (LH) female threads
  • Bore Diameter: 0.750 inch (3/4 inch)
  • Thread Length: 1.562 inches (39.7mm)
  • Misalignment Angle: 24 degrees
  • Static Load Rating: 15,894 lbs
  • Ball Material: 52100 bearing steel, heat-treated and hard chrome plated with precision ground finish

Construction and Features:

  • Protective coated carbon steel housing for corrosion resistance
  • Two-piece metal-to-metal design
  • Follows SAE Specification J1120 construction standards
  • Left hand thread configuration for precise linkage adjustment

The CF Series rod ends are available in hundreds of size options, including various thread and head specifications, making them versatile for custom suspension, steering, and mechanical linkage applications across automotive, racing, and industrial uses.

Products specifications

A (+/-0.015)

2.875

Approx Bearing Weight

0.65

B (+0.0025/-0.0005)

0.75

Ball Dia Ref

1.312

C (+0.062/-0.031)

1.562

D Ref

1.75

E (+/-0.010)

1.125

F (+/-0.010)

1

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

24

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

0.875 in.

Rod End Centerline Length

2.875 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.750 in.

Rod End Head Diameter

1.750 in.

Rod End Head Width

0.875 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

24 degrees

Rod End Static Load Capacity

15,894 lbs.

Rod End Style

Metal to metal

Rod End Thread Size

3/4-16 LH in.

Thread Length

1.562 in.

Thread Type

Left Hand

Thread UNF-2B

3/4 -16

UTL Radical Static

15894

W (+/-0.005)

0.875
