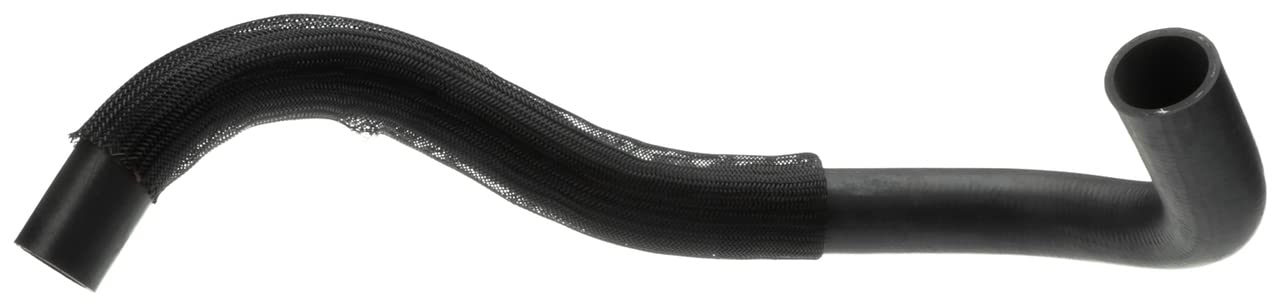

Gates 24472 Premium Molded Upper Radiator Coolant Hose

The Gates 24472 is a premium molded coolant hose designed for upper radiator applications. This factory-molded hose is engineered with OEM-quality specifications to provide a precise fit and reliable performance for your vehicle's cooling system.

Key Features:

• Pre-shaped molded design ensures perfectly sealed connections without unnecessary strain
• EPDM tube construction with synthetic fiber knit reinforcement for superior strength and flexibility
• Heat- and ozone-resistant EPDM cover protects against degradation
• Engineered to resist electrochemical degradation (ECD), the leading cause of coolant hose failure
• Approved for marine applications
• Temperature range: -40°F to +275°F (-40°C to +135°C)
• Meets SAE 20R4 EC Class D1 performance standards

Specifications:

• Position: Upper radiator hose
• Centerline Length: 32.44 inches (824mm)
• Inside Diameter 1: 1.46 inches (37mm)
• Inside Diameter 2: 1.75 inches (44mm)
• Number of Branches: 0

Gates molded coolant hoses are built to withstand extreme temperatures and resist the chemical coolants that cause deterioration from the inside out. The specifically-engineered materials resist vacuum collapse, eliminating the need for internal springs in most applications. Gates recommends replacing hose clamps each time a new coolant hose is installed for optimal sealing performance.
