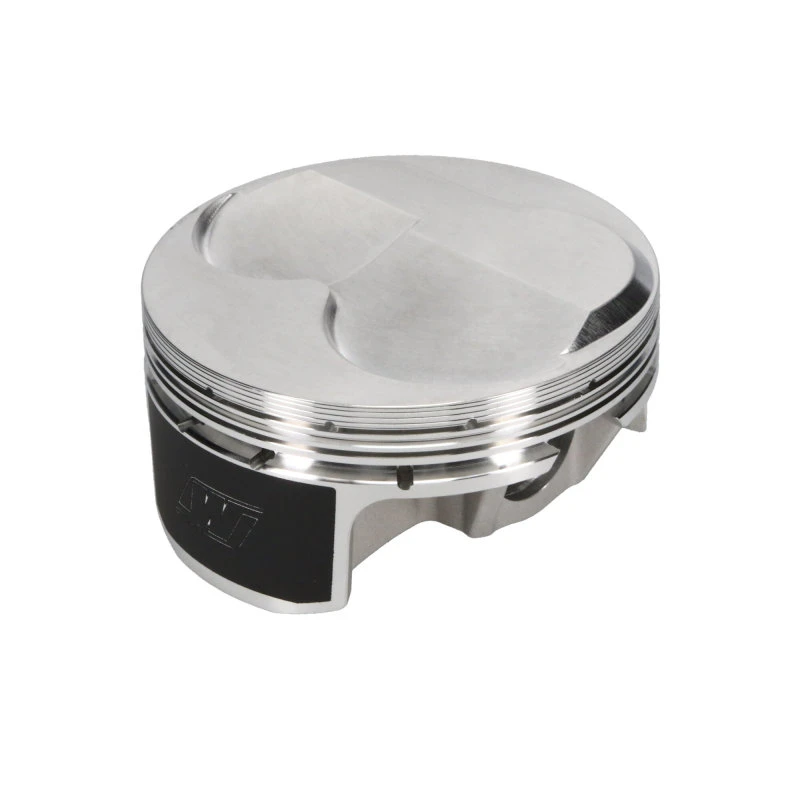

Wiseco K0034B4 Professional Series Forged Piston Set Chevy SBC 350 4.165" Bore 12cc Dome

Manufacturer

Part Number

K0034B4
Black Friday Price

$1,128.99

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco K0034B4 Professional Series Forged Piston Set is engineered for serious racers and high-performance builders who demand uncompromising strength and durability in their Chevrolet Small Block 350 builds. This complete 8-piston kit features a 4.165-inch bore diameter and +12cc dome configuration, designed for heavy-duty to severe-duty racing applications.

Key Specifications:

  • Bore: 4.165 inches
  • Compression Height: 1.060 inches
  • Recommended Stroke: 3.875 inches
  • Recommended Rod Length: 6.000 inches
  • Dome Volume: +12cc (domed piston design)
  • Average Weight: 469 grams per piston
  • Wrist Pin Included: S424 (.927" x 2.500")
  • 23-degree valve pocket configuration
  • Strutted skirt design for maximum strength-to-weight ratio

Professional Series Features:

  • Forged from aerospace-grade 2618 aluminum alloy for superior tensile strength and impact resistance
  • ArmorGlide skirt coating reduces friction, minimizes wear, and ensures quieter operation
  • Forced pin oiling system provides enhanced lubrication under extreme conditions
  • Precision-machined ring grooves with anti-detonation groove for improved ring seal
  • Fully machined crown optimizes combustion chamber efficiency
  • Pressure seal grooves minimize blow-by gases and maintain optimal cylinder pressure

Compression Ratios (calculated at various chamber volumes):

  • 58cc chamber: 15.1:1
  • 62cc chamber: 14.2:1
  • 67cc chamber: 13.3:1
  • 76cc chamber: 11.9:1

This kit includes eight forged pistons with wrist pins and circlips. Premium ring set sold separately (JG7708-4165-5). Wiseco pistons must be used with Wiseco rings only, as ring types are not interchangeable. Engineered, forged, and machined in the USA, these Professional Series pistons are designed to withstand the extreme demands of racing and high-horsepower builds exceeding 1500+ horsepower.

Note: Zero deck achieved at 8.998 inches with standard deck height of 9.025 inches. This piston set is ideal for serious race applications including drag racing, circle track, and power-adder (turbo/supercharger) builds requiring maximum strength and reliability.

Products specifications

Piston Quantity

8

Stroke

3.875

Wrist Pin Style

Floating

Make

Chevrolet

Piston Material

2618

Wrist Pin Outer Diameter

0.927

Rod Length

6.000

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

4.165

Compression Height

1.060

Industry

Automotive

Product Market

Domestic

Engine

Small Block

Engine Type

ICE

Wrist Pin Material

5115

Product Series

Professional

Product Type

Engine Piston Set

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

EBAY Category ID

33623

Engine - Web

Small Block Gen I

Make - Web

Chevrolet

Ring Set Included

No

Skirt Coating

Yes

Wrist Pin Included

Yes

Piston Volume

12.00

Title

Wiseco - Chevrolet, Small Block, 4.165 in. Bore, Piston Set of 8

Title - Web

Professional Chevy Small Block Piston Set of 8 - 4.165 in. Bore - 1.060 .in CH, 12.00 CC
