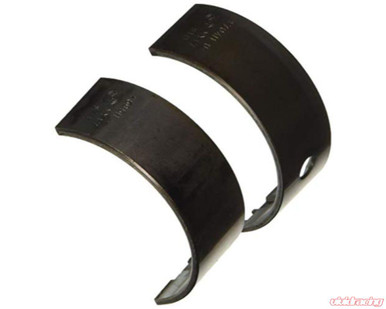

ACL Bearings 1B1808H-.025 Race Series Rod Bearing Set Oversized - 0.025mm

Manufacturer

Part Number

1B1808H-.025
Sale Price

$21.57

Estimated ship date Friday, November 27

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ACL Bearings 1B1808H-.025 is a high-performance connecting rod bearing set engineered for Chrysler 5.7L, 6.1L, 6.2L, and 6.4L Hemi V8 engines. This Race Series bearing features a 0.025mm (approximately .001 inch) oversized dimension, designed for engines with slightly worn or machined crankshafts that require precise clearance adjustment.

Race Series Construction:

  • Tri-metal design with copper, lead, and tin alloy construction for exceptional strength and seizure resistance
  • Hardened steel backing to improve bearing lining support and retention in the housing
  • High-strength overlay plate with reduced thickness for improved fatigue properties under high RPM conditions
  • Increased crush for superior bearing retention during extreme operation
  • Increased eccentricity to compensate for bore distortion at high RPM and assist in hydrodynamic oil film formation

Performance Features:

  • No flash plating on backing for improved heat transfer and maximum grip in the housing
  • Precision manufactured to exact tolerances for consistent clearances and reliable fit
  • Designed to withstand higher RPM conditions and extreme connecting rod forces
  • Excellent wear resistance and smooth operation under demanding conditions

ACL Race Series bearings are trusted by professional engine builders and racers worldwide, from drag racing to road racing applications. These bearings deliver the endurance and capability required for high-performance and racing engines while maintaining reliability for street/strip applications.

Products specifications

Max Overall Length

0.791"(20.10mm)

Max Std Shaft Size

2.1263"(54.008mm)

Max Std Tunnel Size

2.2527"(57.219mm)

Max Wall at Crown

0.0626"(1.590mm)

Min Std Shaft Size

2.1257"(53.993mm)

Min Std Tunnel Size

2.2522"(57.206mm)

Oil Clearance

Standard

Size

.025
