Wilwood 26114252P Remote Tandem Master Cylinder Kit with Proportioning Valve

The Wilwood 26114252P is a complete remote tandem master cylinder kit designed for power brake applications using vacuum assist or hydraulic assist systems. This comprehensive kit includes the 1-1/8" bore remote tandem master cylinder, combination proportioning valve, mounting bracket, stainless steel fluid tubes, and all necessary mounting hardware for a complete bolt-on installation.

Master Cylinder Features:

• 1-1/8" bore diameter optimized for power brake systems
• Machined from high-pressure die castings for precision and strength
• Weighs only 3 lbs—75% lighter than most cast iron OE master cylinders
• Ball burnished finish for corrosion resistance and clean appearance
• Slotted flange mounting for flexible installation positioning
• Remote tandem chamber design for versatile mounting options

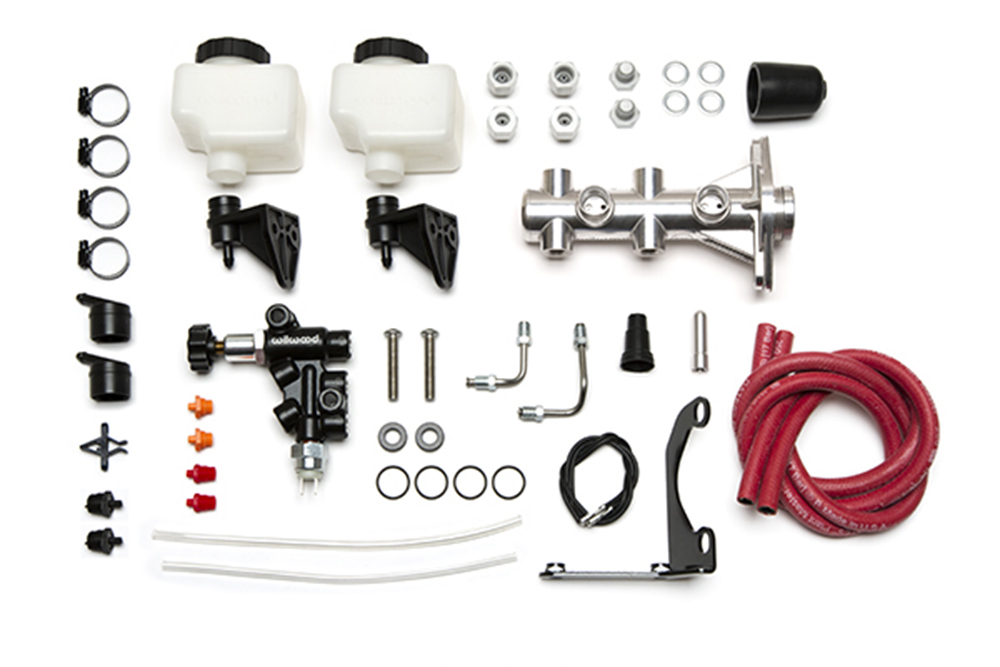

Complete Kit Includes:

• Remote tandem master cylinder with dual fluid chambers
• Combination proportioning valve with integrated adjustability
• Black E-coated mounting bracket for durability and appearance
• Precision-bent stainless steel fluid tubes with pre-installed plated steel tube nuts
• Stainless steel button head fasteners for rust-free installation

Benefits:

• Combination proportioning valve simplifies brake proportioning adjustments on custom brake systems
• Maintains full isolation between front and rear fluid circuits for safety
• Black E-coat finish on valve and bracket provides long-lasting durability and professional appearance
• Pre-bent tubes and included hardware enable straightforward installation
• Significant weight reduction improves vehicle performance and handling

This kit is specifically engineered for custom brake system applications where a remote-mounted master cylinder is required. The integrated proportioning valve allows for precise brake bias adjustment, while the complete kit design eliminates the need to source individual components separately. Simply mount the bracket, connect the fluid lines, bleed the system, and enjoy reliable braking performance.
