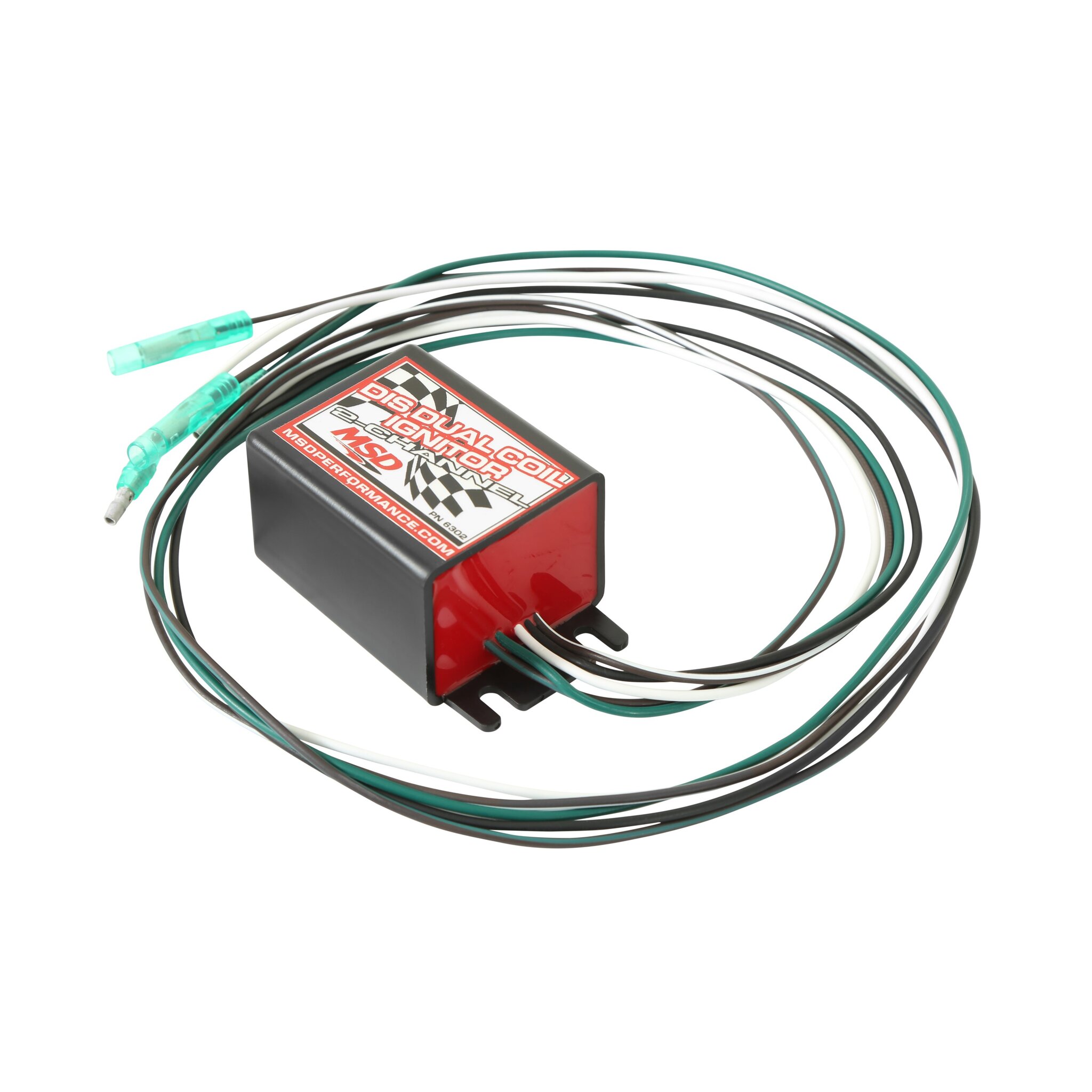

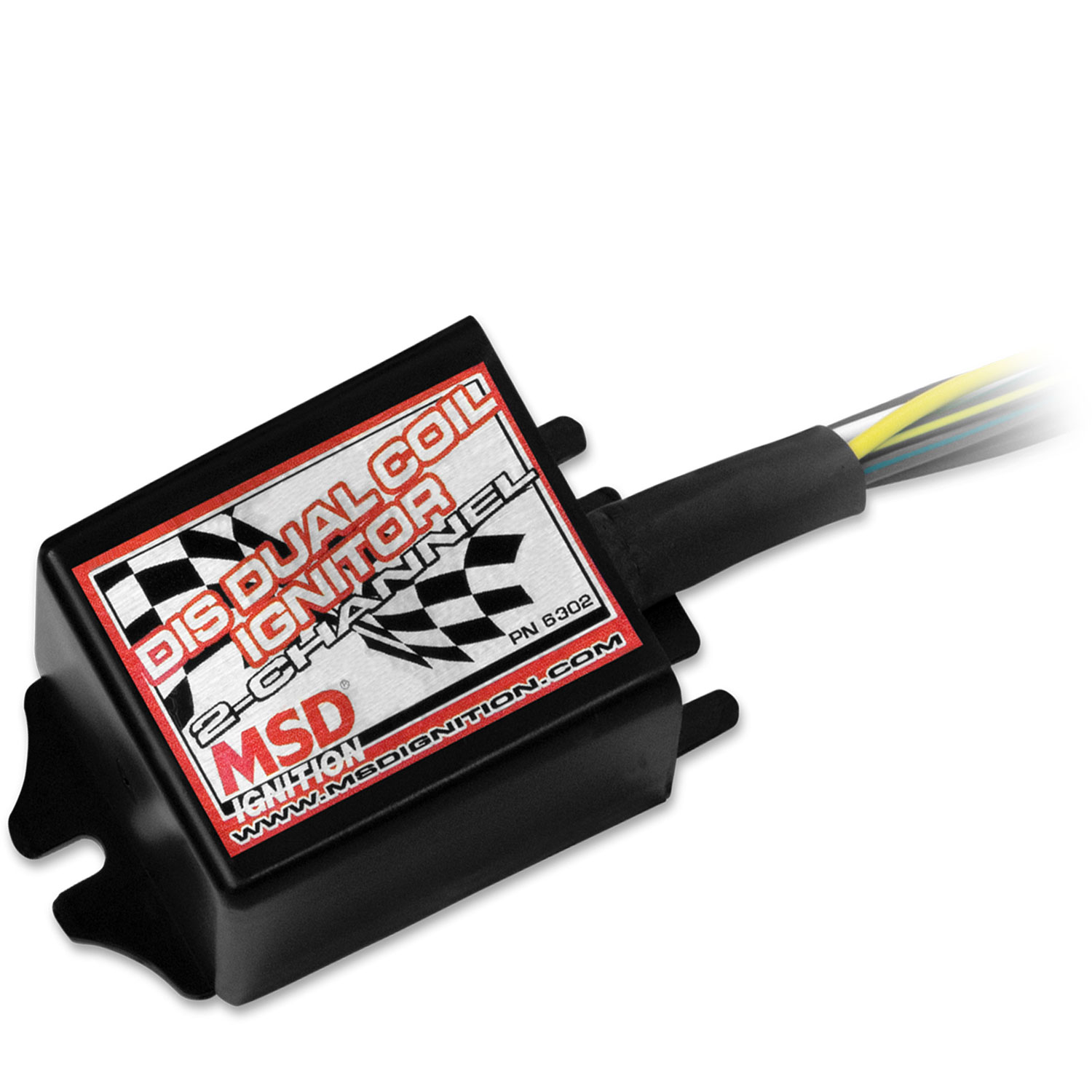

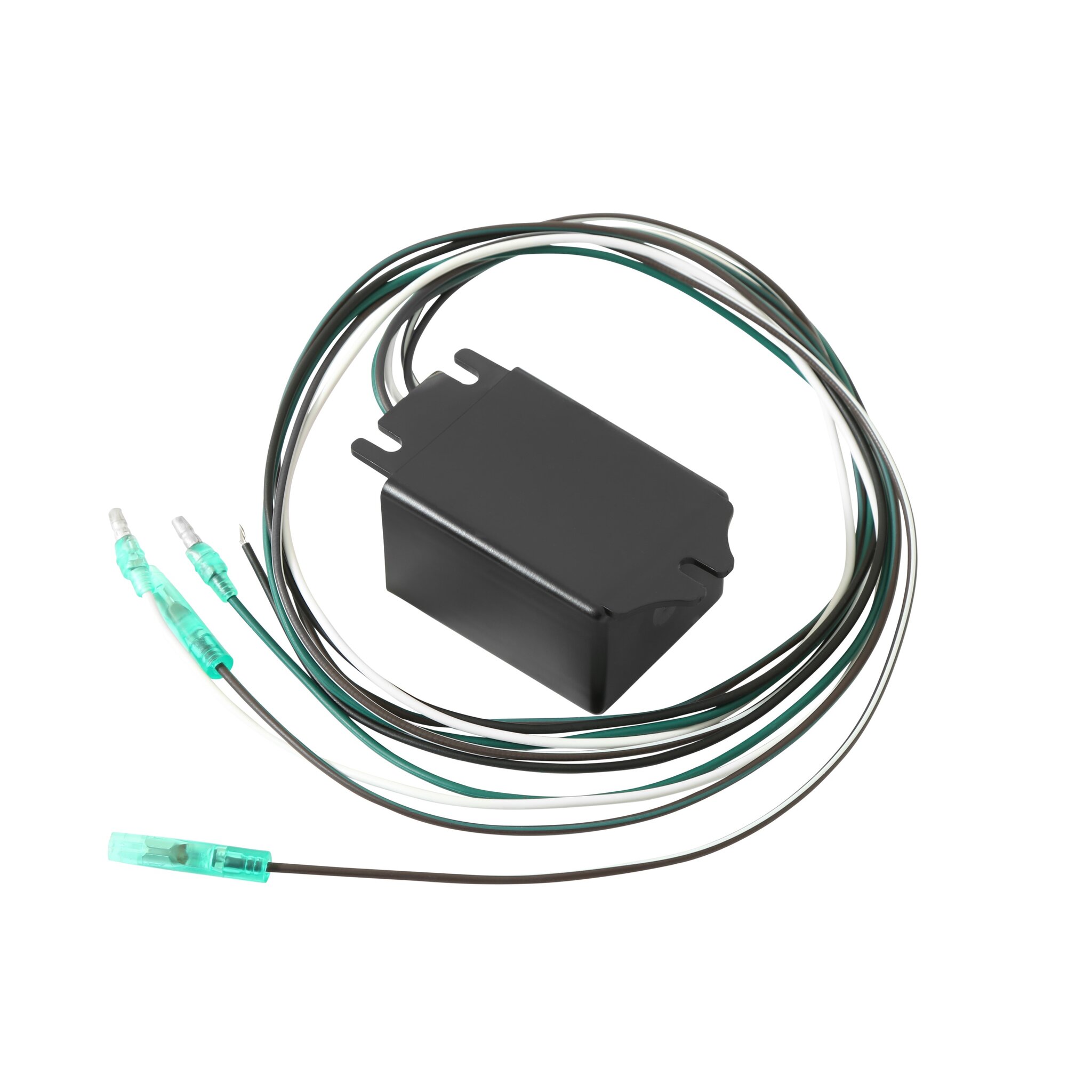

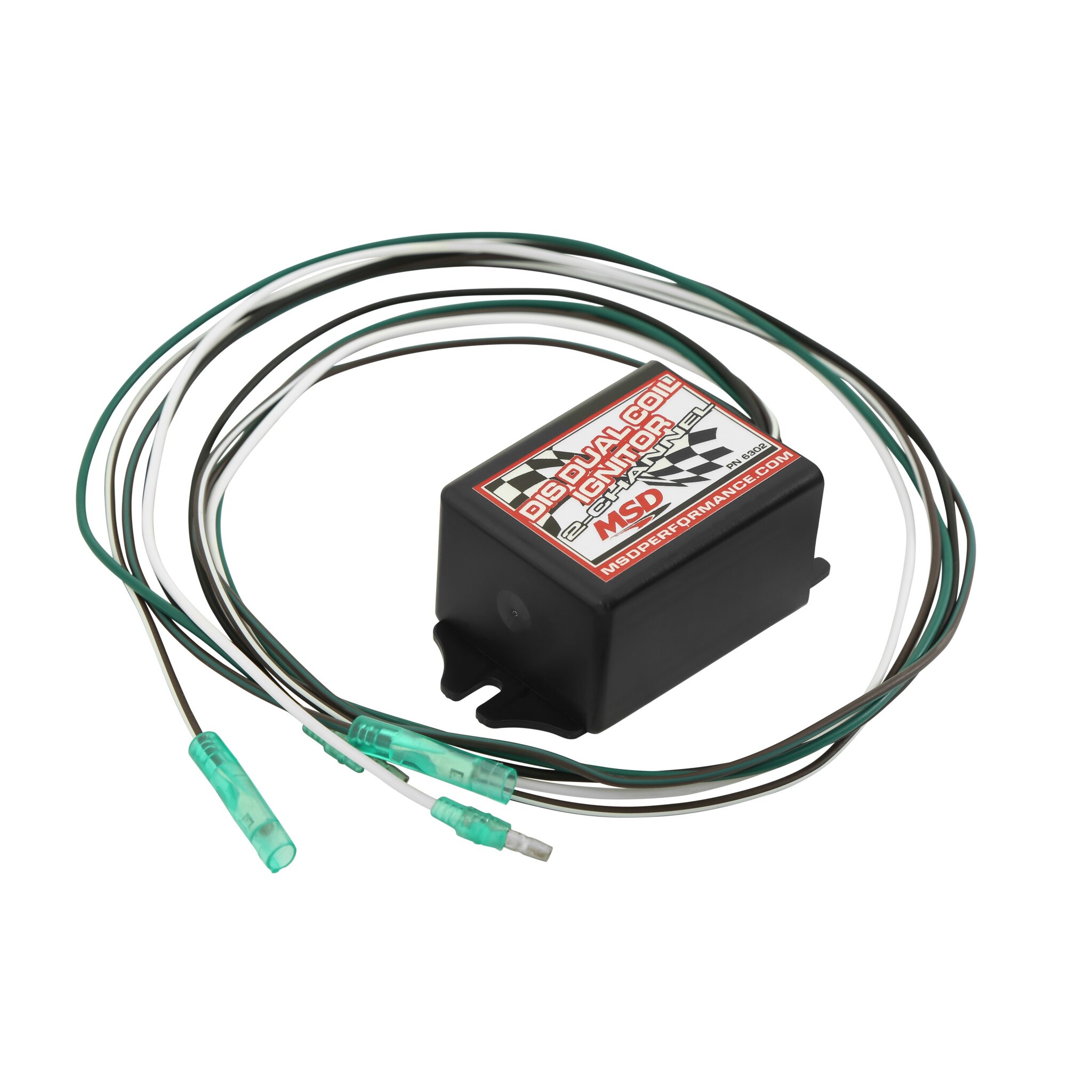

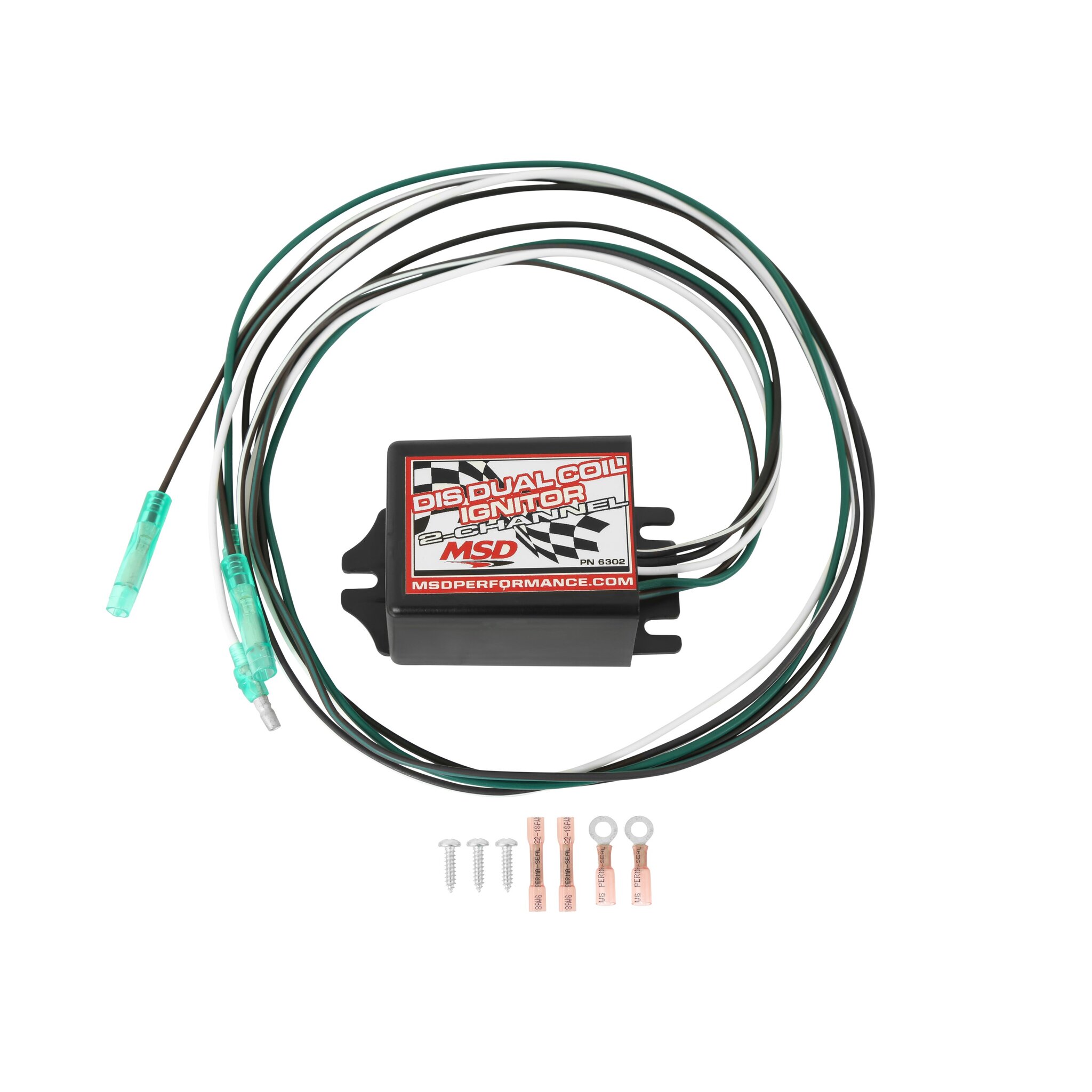

MSD 6302 DIS Dual Coil Ignitor 2-Channel Distributorless Ignition Interface

The MSD 6302 DIS Dual Coil Ignitor is a 2-channel ignition interface device engineered to bridge the gap between factory transistorized or driver-style ignition systems and high-performance MSD ignition components. Previously, upgrading ignition boxes and coils on modern factory-transistorized ignitions was considered virtually impossible — the MSD 6302 eliminates that barrier.

This unit works by converting the logic-level signal from the ECU and generating a high-current output capable of driving an inductive coil or the points input of an MSD ignition box. The result is a clean, compatible signal that allows full MSD DIS-series ignition control on engines that would otherwise be incompatible.

Key Features:

• 2-channel design supports waste spark or coil-per-cylinder ignition configurations on 4-cylinder engines
• Converts ECU logic signal to high-current output for inductive coil compatibility
• Enables installation of MSD DIS-2 or DIS-4 series ignition controls on factory transistorized systems
• Allows replacement of weak OEM pencil coils with higher-output MSD Blaster SS or HVC coils
• Must be used with an MSD DIS-series ignition control and MSD coils for a complete system
• Manufacturer's Limited 1-Year Warranty

Emissions Notice: This part is intended for sale and use on uncontrolled (non-emissions controlled) vehicles or vehicles used solely for closed-competition racing purposes.
