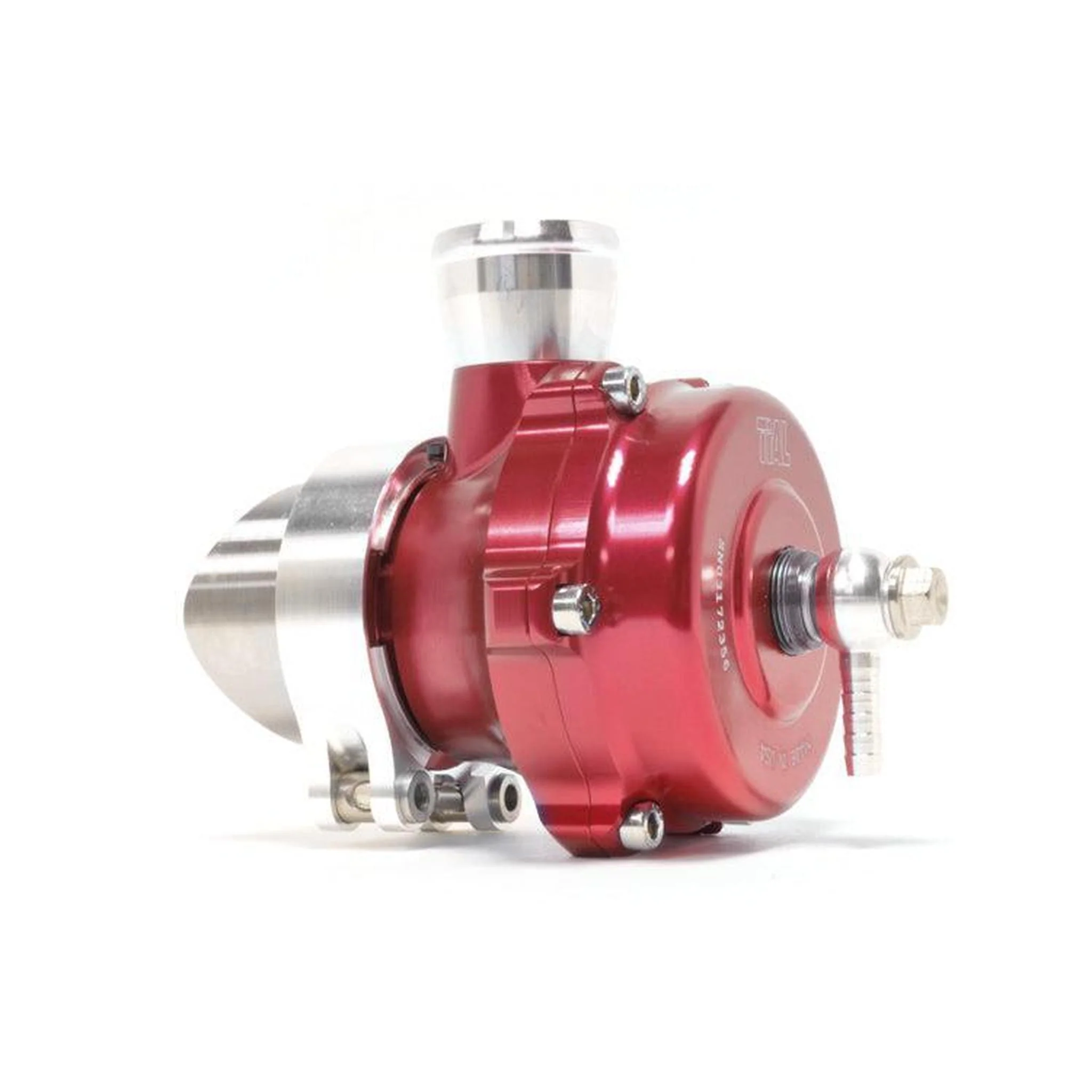

TiAL 002993 QR Recirculating Blow Off Valve BOV - 50mm

Manufacturer

Part Number

002993
Sale Price

$275.00

Estimated ship date Sunday, November 29

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The TiAL QR is a high-performance recirculating blow off valve (BOV) built on the same proven platform as the popular TiAL Q. Designed for turbocharged and supercharged applications, the QR keeps maximum recirculation while preventing compressor surge during closed-throttle and high-vacuum conditions — protecting your turbocharger and extending its service life.

The QR features a compact body with a large 1.98 in (50.5mm) valve and accepts multiple recirculation port sizes, making it adaptable to a wide range of factory and custom boost systems. It uses the standard TiAL V-band flange and can be converted into a standard Q BOV simply by swapping the bottom piece.

Key Features:

  • Large 1.98 in (50.5mm) valve for high-flow performance
  • CNC-machined body and internal components from 6061 aluminum alloy
  • Compatible recirculation port sizes: 25.4mm (1.00") for Bosch/Subaru style, 29mm (1.14") for Nissan R35 GTR, 34mm (1.34") for DSM/EVO/3000GT, and 38.1mm (1.50") universal
  • Standard TiAL V-band flange — convertible to standard Q BOV by swapping bottom piece
  • Viton O-ring valve seal clamped in place to prevent seat sticking or pull-out
  • Teflon-lubricated, hard anodize-coated valve stem and guide for long-term wear resistance
  • TiAL machined aluminum banjo-type air fitting with oversized 10mm hose barb for rapid actuator response
  • High-temp silicone Nomex-reinforced actuator diaphragm for extended service life
  • V-band aluminum mounting clamp with stainless steel hardware for a clean, corrosion-resistant finish
  • Available in five anodized colors: Silver, Black, Red, Blue, and Purple
  • Multiple spring rate options to match your engine's idle vacuum (2 PSI through 12 PSI)

What's Included:

  • (1) QR Assembly with selected recirculation return fitting
  • (1) TiAL V-Band Clamp
  • (1) V-Band Weld Flange (cuts to fit 2.5" intercooler pipe; available in aluminum, mild steel, or stainless steel)
  • (1) TiAL Air Fitting
  • (1) High Pressure O-Ring

Compatible with turbo and supercharged applications including Paxton, Vortec, and others. Spring rate selection should be based on your engine's measured vacuum at operating temperature and idle speed.
