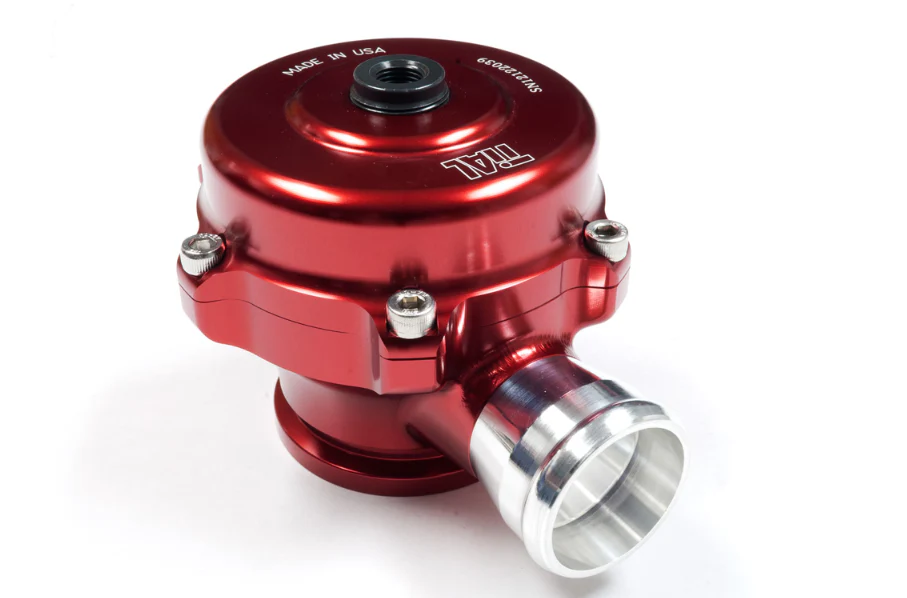

TiAL 002978 QR Recirculating Blow Off Valve BOV - 50mm

Manufacturer

Part Number

002978
Sale Price

$275.00

Estimated ship date Sunday, November 29

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The TiAL QR is a high-performance recirculating blow-off valve built on the same platform as the renowned TiAL Q BOV. Designed for both turbocharged and supercharged applications (including Paxton and Vortec), the QR recirculates boost pressure back into the intake rather than venting to atmosphere, making it ideal for mass airflow (MAF) sensor-equipped vehicles.

The QR features a large 50.5mm (1.98") valve for exceptional flow capacity and is fully outline-interchangeable with the standard TiAL Q and original BV50. It can be converted to a vented Q-style BOV simply by swapping the bottom piece — no new flange required.

Key Features:

  • Recirculating design based on the high-performance TiAL Q BOV platform
  • Large 50.5mm (1.98") valve for maximum flow
  • CNC-machined body and all internal components from 6061 aluminum alloy
  • Multiple recirculation port sizes available: 25.4mm (1.00"), 29mm (1.14") GTR, 34mm DSM/Evo/Subaru, or 38.1mm (1.50")
  • Uses the standard TiAL V-band flange — compatible with existing TiAL Q and BV50 setups
  • Convertible to a standard Q BOV by swapping the bottom piece
  • Viton O-ring valve seal clamped in place to prevent sticking or pulling out
  • Teflon-lubricated, hard anodize-coated valve stem and guide for long-term wear resistance
  • CNC-machined aluminum V-band clamp with stainless steel hardware for a clean, corrosion-free appearance
  • Machined aluminum banjo-type air fitting and bolt with oversized 10mm hose barb for fast actuator response
  • High-temp silicone Nomex-reinforced actuator diaphragm for long service life
  • Available in multiple spring rates to match your idle vacuum level (2, 6, 8, 10, 11, and 12 PSI)

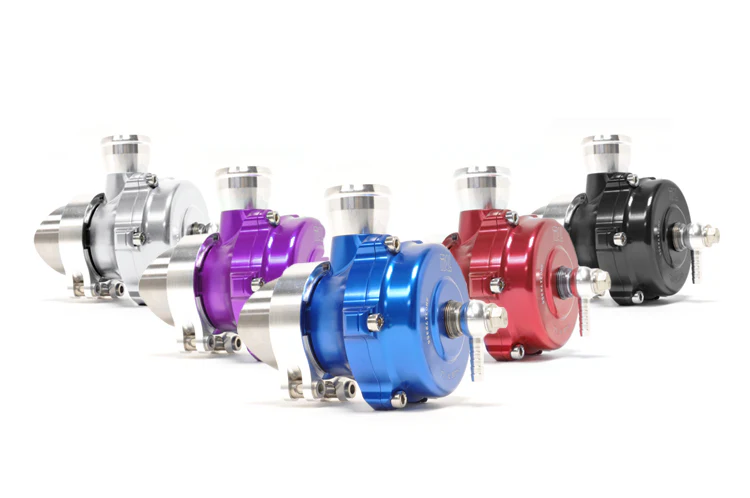

  • Color anodized options: Silver, Red, Blue, Purple, and Black
  • Weld flange available in aluminum, mild steel, or stainless steel

What's Included:

  • (1) TiAL QR Assembly with recirculation return fitting installed
  • (1) TiAL V-Band Clamp
  • (1) V-Band Weld Flange (cut for 2.5" pipe)
  • (1) TiAL Machined Aluminum Air Fitting
  • (1) High Pressure O-Ring

The TiAL QR is the definitive recirculating BOV for serious forced induction builds, offering the proven reliability and precision engineering that TiAL Sport is known for worldwide.
