GReddy 12040711 V-Mount Intercooler Standard Kit FD3S Intercooler Only

Manufacturer

Part Number

12040711
Sale Price

$1,510.03

Estimated ship date Sunday, November 29

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The GReddy 12040711 V-Mount Setup Intercooler Standard Kit is a purpose-built, radiator-less intercooler kit designed for the Mazda RX-7 FD3S. This kit delivers the proven V-mount intercooler configuration favored by circuit and drift competitors, placing the intercooler at the front of the engine bay in an angled "V" layout for direct, unobstructed airflow and maximum charge cooling efficiency.

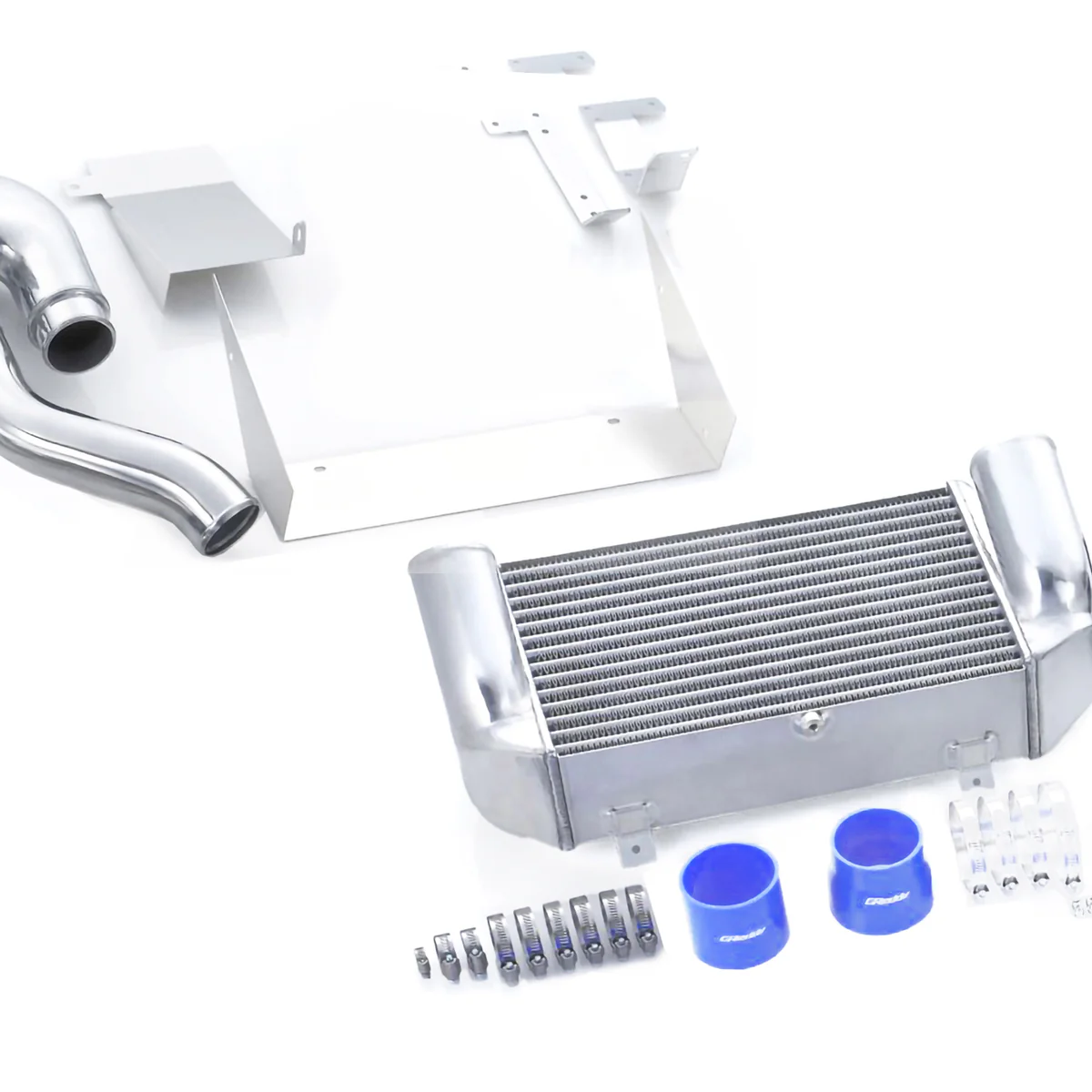

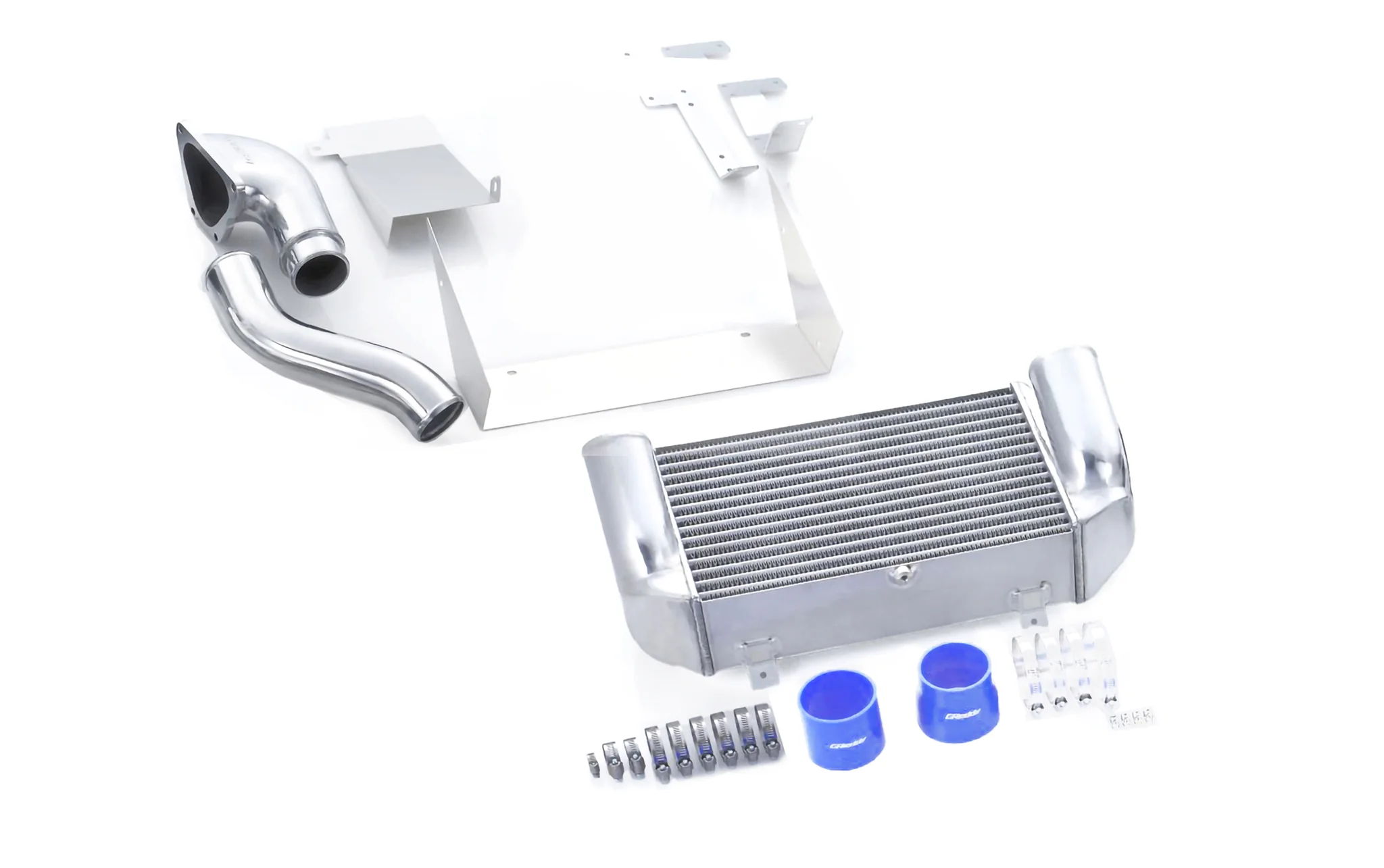

This is the intercooler-only version — the radiator is sold separately (see GReddy p/n 12040710). The kit includes the intercooler core, intake tube, aluminum elbow, mounting stay, air guide plate, and necessary short parts. The air guide plates help channel incoming air from the front bumper opening directly to the intercooler core, preventing air loss and maximizing cooling performance.

Intercooler Core Specifications:

  • Core Size: 400mm (L) x 266mm (H) x 100mm (W) — approximately 15.75" x 10.47" x 3.94"
  • Construction: Lightweight tube-and-inner-fin, 3-row air-to-air design
  • End Tanks: High-flow cast aluminum GReddy end tanks, TIG-welded
  • Layout: V-Mount configuration (radiator-less standard kit)
  • Compatibility: Mazda RX-7 FD3S (January 1996 – August 2002)

Key Features:

  • Lightweight tube-and-fin air-to-air intercooler core for optimized flow and heat dissipation
  • Specially designed bracketry for proper V-mount positioning
  • Air diversion guide plates included to maximize airflow from the bumper opening
  • Intercooler piping on the intake side included — ideal for vehicles running upgraded turbocharger kits
  • Designed for compatibility with aftermarket and upgraded turbo setups
  • Optional oil cooler kit can be installed in conjunction with this kit

Installation Notes: Battery relocation is required. On select models (VIN 100000 series), bending of the A/C pipe (low pressure side) will be necessary. An electric fan harness extension may also be required and is available separately. This kit does not include the radiator — pair with GReddy p/n 12040710 for a complete V-mount cooling solution.

GReddy Performance Products (GPP), a division of Trust Company Ltd., is a leading Japanese performance parts manufacturer with decades of motorsport heritage. This intercooler kit carries GPP's standard 1-year limited warranty for non-turbo components.
