The GReddy 12020209 Type 24F Intercooler Kit is a complete front-mount intercooler system engineered for the Nissan Silvia and 180SX (PS13/RPS13) equipped with the SR20DET engine. The addition of an efficient, lightweight tube-and-fin GReddy intercooler is one of the best ways to safely increase horsepower in a turbocharged engine — by reducing the engine's inlet temperatures, a denser air charge enters the engine, generating more horsepower at the same boost level.
Even when a factory intercooler is present, stock units are generally not ideal even for factory boost levels — they are typically mounted in awkward locations, making them susceptible to heat saturation and unsuitable for increased boost levels. The GReddy T-24F addresses all of these shortcomings with a purpose-built, forward-of-radiator mounting position.
Core Technology:
GReddy Type-F cores feature a high heat-dissipating "off-set, inner-fin" technology, recommended for medium to high boost levels on higher horsepower or upgraded turbo engines. The larger internal surface area provides superior cooling efficiency for radiating excessive heat and minimizing heat soak.

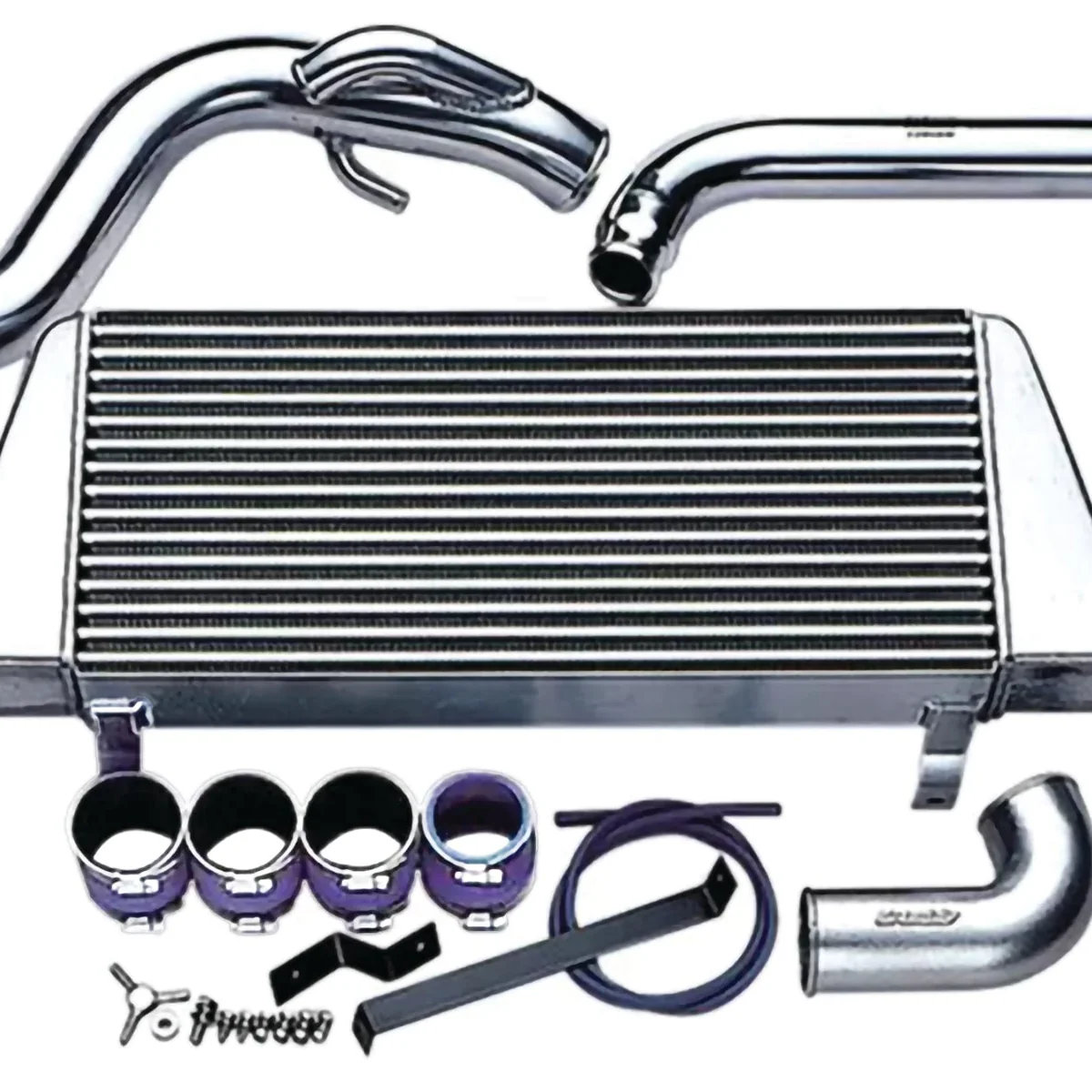

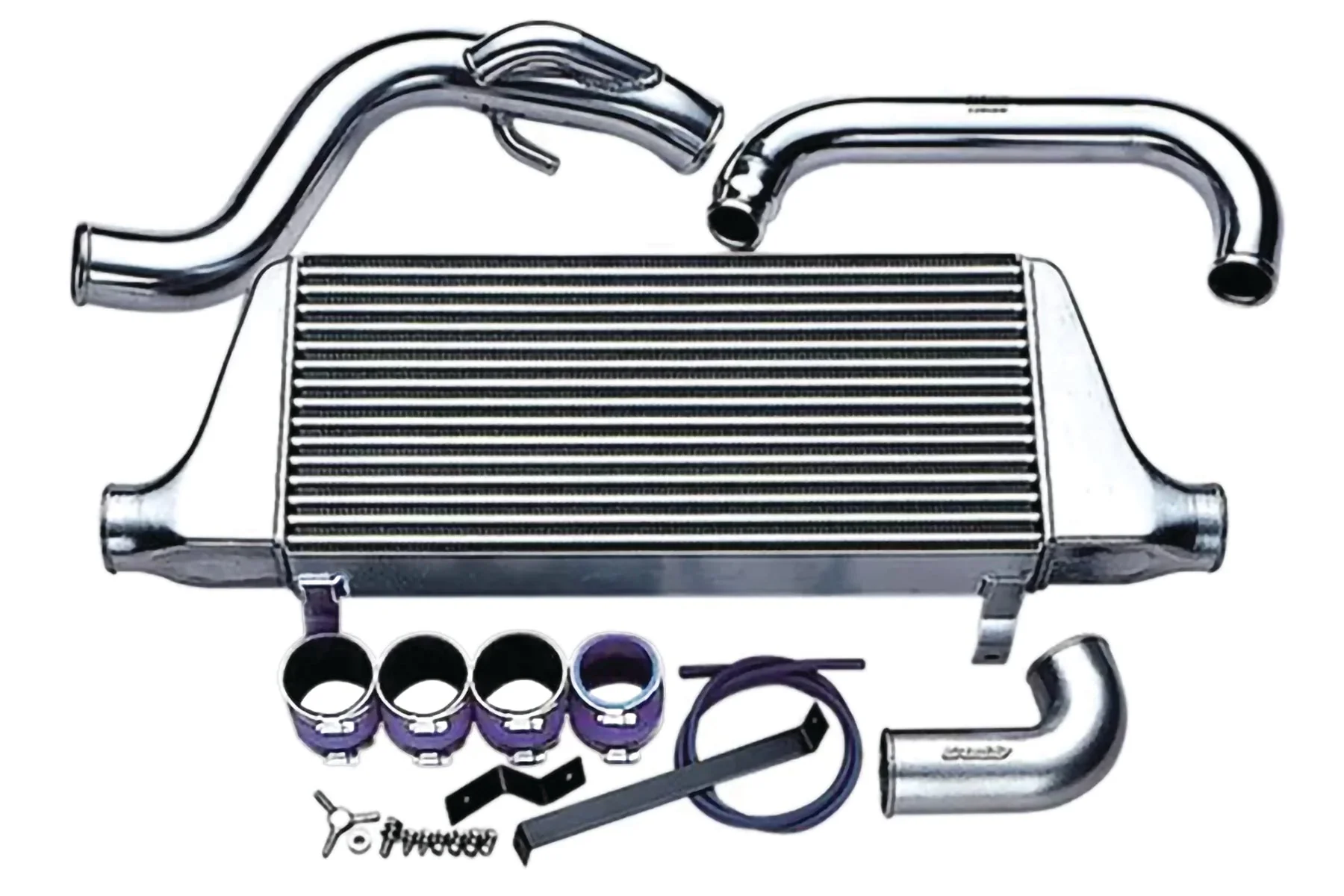

Kit Contents & Construction:
- Kit includes all necessary mounts, aluminum piping, hoses, and clamps required for installation.
- Ends of the cores are TIG-welded and capped with smooth-flowing, heavy-duty cast aluminum GReddy end tanks.
- The tube-and-fin design allows for better airflow through the core for improved efficiency, and avoids adding excessive weight over the nose of the vehicle for better handling and performance.
- Mount Position: Forward of Radiator (front-mount)
- Compatible with genuine turbine, TD06, and T67 turbocharger configurations
Core Specifications:
- Core Type: TYPE 24F
- Core Size: H184mm x L600mm x W66mm
- Mount Position: Forward of Radiator
- Application: Silvia / 180SX PS13/RPS13, SR20DET (1991.01–1998.12)
Installation Notes:
- Battery size change required (34B19L); making holes in the body is required for installation.
- Bumper modification and reinforcement modification required
- Can be used simultaneously with an oil cooler kit
- Not confirmed for automatic transmission
For competition (race) use only. GReddy products are designed and sold for sanctioned off-road/competition-only, non-emissions-controlled vehicles and may not be used on a public road or highway unless a specific regulatory exemption exists. Check local regulations before purchasing.
