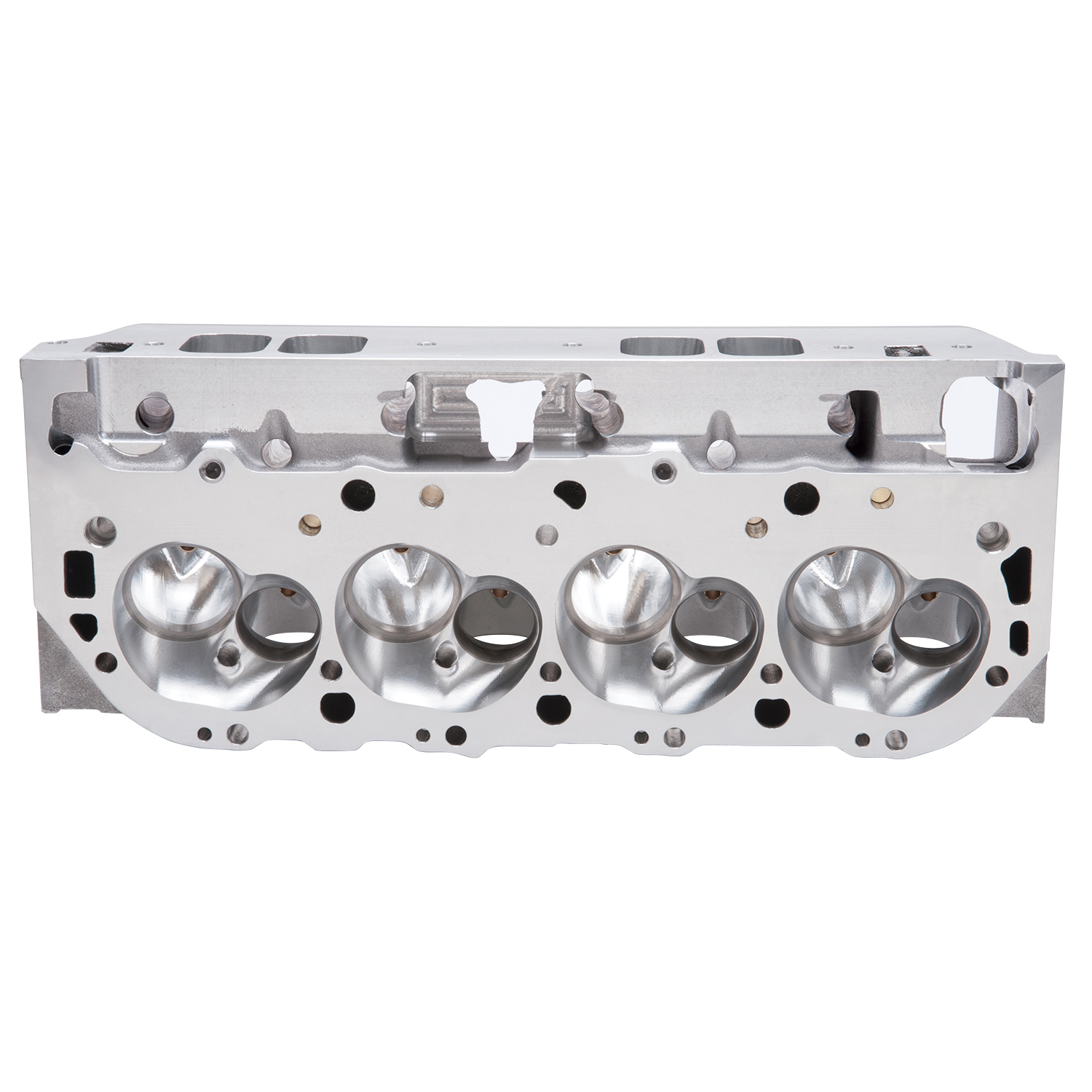

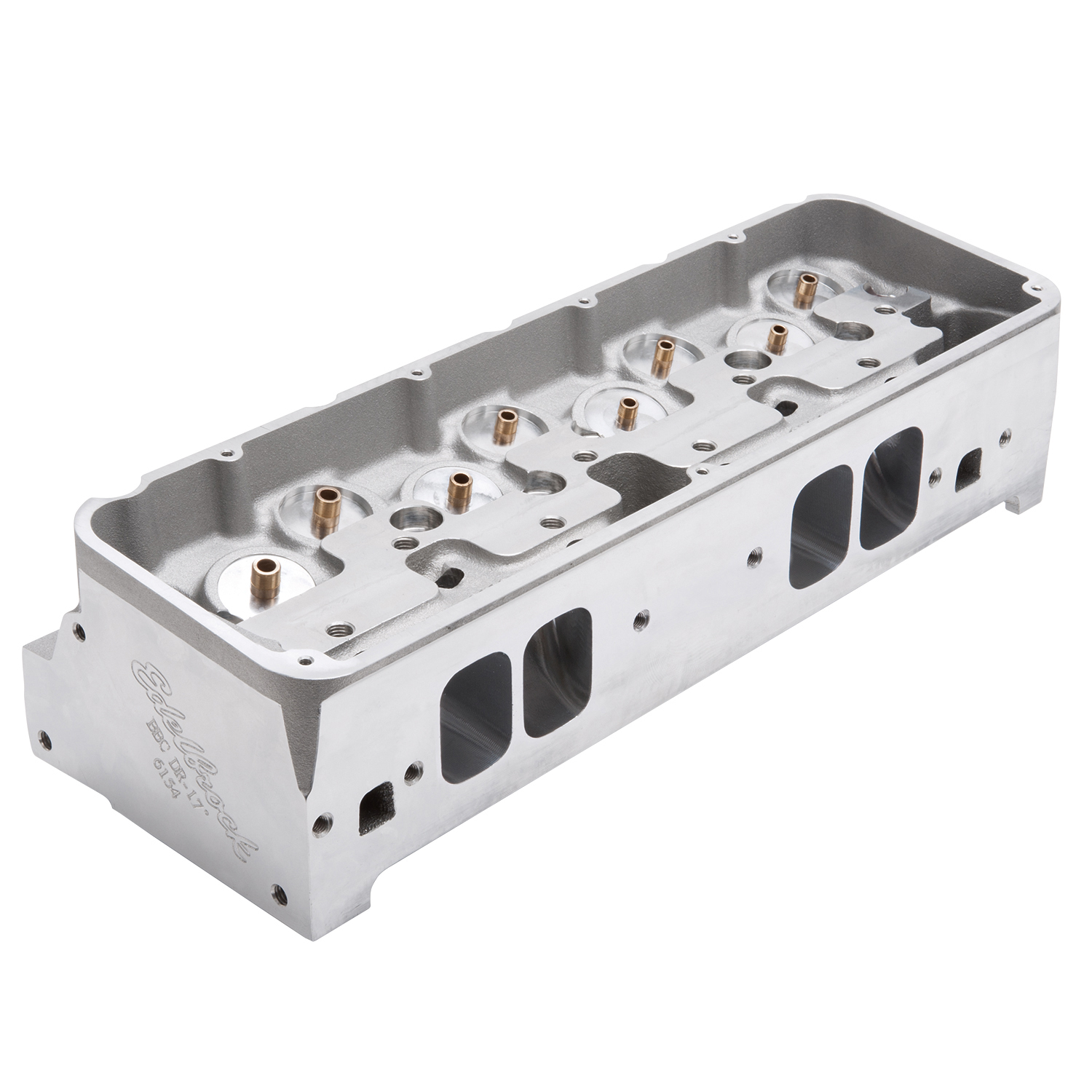

Edelbrock 615469 Pro-Port DR-17 Big Block Chevy Cylinder Head HIP 11° CNC

Manufacturer

Part Number

615469
Black Friday Price

$1,930.95

Estimated ship date Saturday, December 05

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Edelbrock 615469 Pro-Port DR-17 cylinder head is engineered specifically for professional cylinder head porters and engine builders working with big block Chevy applications. This raw casting features an 11-degree valve angle and utilizes Edelbrock's Hot Isostatic Pressing (HIP) process for enhanced structural integrity.

Professional-Grade Raw Casting:

  • Cast in the USA at Edelbrock's state-of-the-art foundry with extra-thick walls designed specifically for custom CNC porting
  • Unported raw version of Edelbrock's race-winning Victor Series cylinder head design
  • Offers maximum wall thickness to accommodate virtually any CNC port shape, size, or location
  • Hot Isostatic Pressing (HIP) process eliminates micro-porosity and increases casting density for superior strength
  • Includes valve seats and manganese-bronze valve guides (not installed)

Important: This cylinder head requires professional preparation and CNC porting before use. It cannot be installed in raw form and is intended solely for experienced engine builders with CNC machining capabilities.

The DR-17 Pro-Port design provides the ultimate foundation for custom high-performance big block Chevy builds where precise port specifications are critical to achieving maximum power output.

Products specifications

Quantity

Sold individually

Valve Springs Included

No

Engine Make/Size

Chevy Big Block (396-502)

Type

Bare

Emission

Non-Emissions

Valve Included

No

Grade Type

Performance

Preparation

Requires Professional Preparation (Bare)

CNC Ported

No

Cylinder Head Type

Standard

Material

Aluminum

Finish

Satin

Usage

Racing

Valve Seats Included

Yes

Construction Type

Pro-Port Raw

Seat Angle

Exhaust 45 deg/Intake 45

Deck Thickness

0.5625

Seat Material

Ductile Iron

EGR Port

No

Valve Angle

17

Valve Guides Included

Yes

Series

Pro-Port

Guide Material

Manganese Bronze

Guide Plates Included

No

RGL

WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Intake Port Entry

1.40 in x 1.80

Intake Valve Pierce Points (X,Y)(C)

-0.773 in, 0.291

Exhaust Valve Diameter

(Suggested) 1.50 in. x 1.30

Exhaust Valve Pierce Points (X,Y)(C)

1.193 in, -0.580

Exhaust Port Entry

1.50 in x 1.30

Family

Victor

Combustion Chamber Volume

Possible 92

Intake Valve Diameter

(Suggested) 1.40 in x 1.80

Retainer Included

No

Specialty

Hot Isostatic Pressing (HIP) Processing

Product Series

Pro-Port

Product Family

Pro-Series
