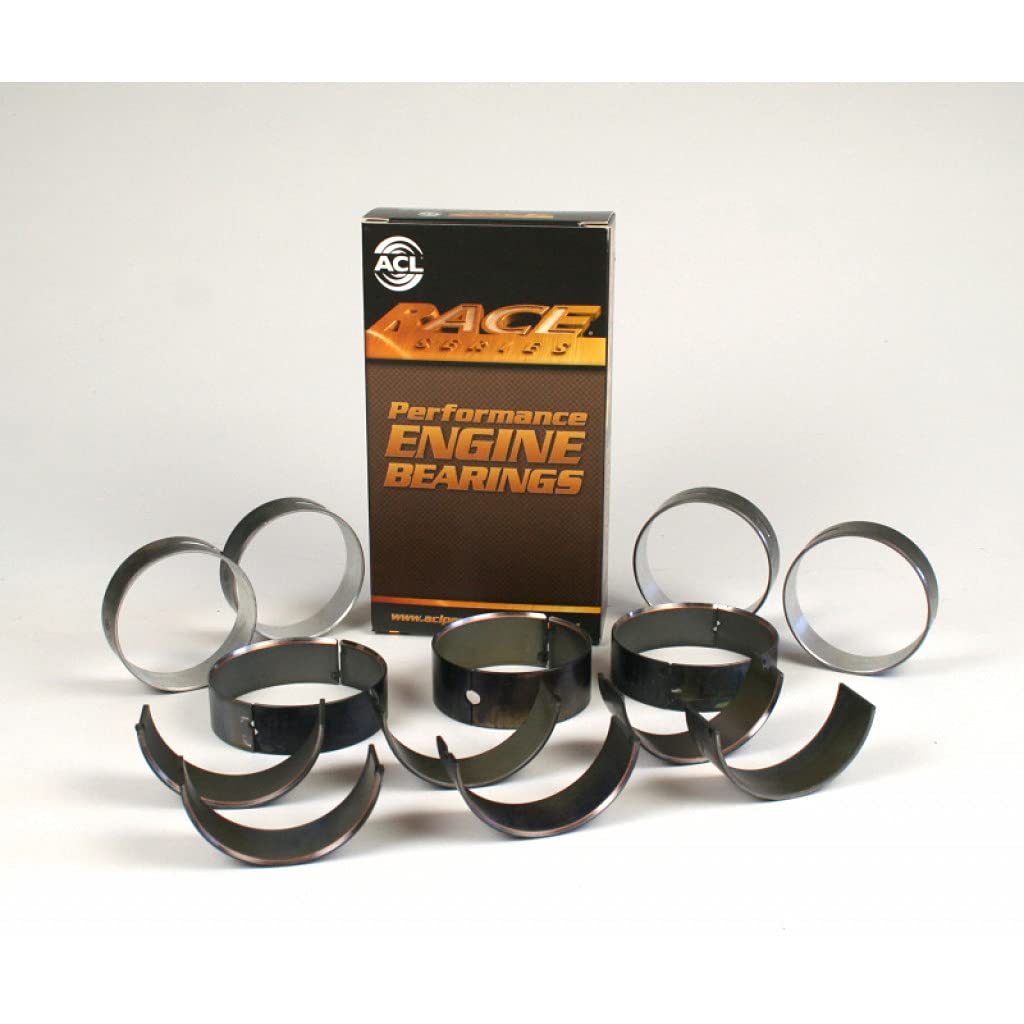

ACL Bearings 6B8466H-.25 Race Series Rod Bearing Set Toyota 2GR-FE V6 .25mm Undersize

The ACL Race Series 6B8466H-.25 is a high-performance connecting rod bearing set engineered specifically for the Toyota 2GR-FE 3.5L V6 engine. This .25mm (0.010") undersize bearing set is designed for crankshafts that have been machined undersize during engine rebuilding or performance upgrades.

Key Features:

• Tri-metal construction using F781 bearing material for superior durability
• Engineered for engines running higher RPMs and increased power levels beyond factory specifications
• Improved heat conduction and oil distribution compared to OEM bearings
• Identical bearing halves for simplified installation
• Designed for both street performance and racing applications

Technical Specifications:

• Bearing Size: .25mm (.010") undersize
• Material: F781 tri-metal construction
• Maximum overall length: 15mm (0.591")
• Maximum shaft size: 53mm (2.087")
• Maximum tunnel size: 56.02mm (2.206")
• Vertical oil clearance range: 0.036mm to 0.093mm
• Wall thickness at crown: 1.49mm (0.059")

ACL Race Series bearings are recognized throughout the motorsports world for their exceptional performance in demanding conditions. The unique combination of advanced metallurgy, precision engineering, and optimized design makes these bearings ideal for engine builds that exceed factory performance parameters. Compatible with Toyota Camry, RAV4, Highlander, Lotus Evora, and Lotus Exige V6 models equipped with the 2GR-FE engine.
