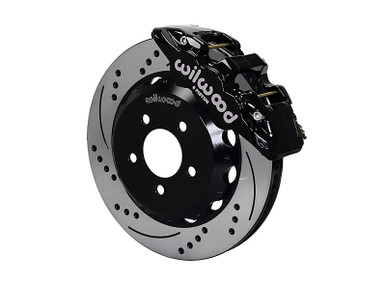

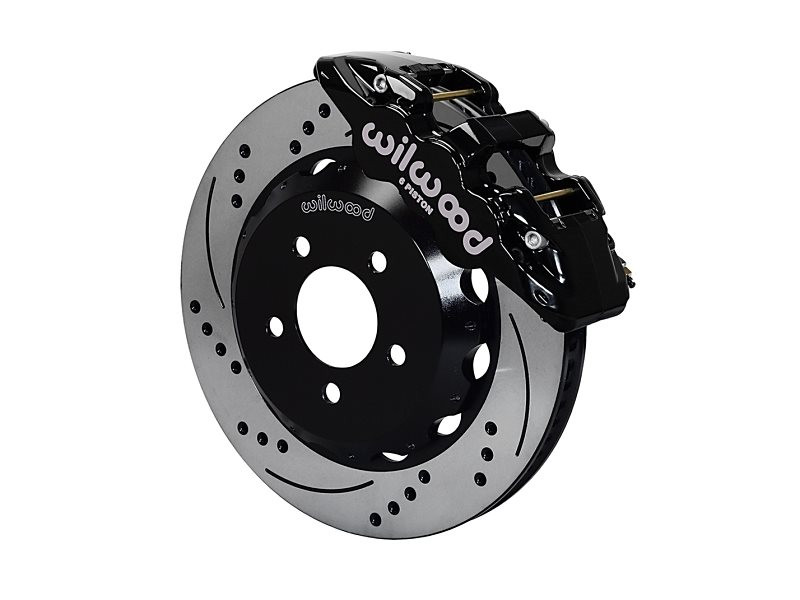

Wilwood 14014288D AERO6 Front Big Brake Kit 14.00" Drilled & Slotted Rotors Black 6-Piston

The Wilwood AERO6 Front Big Brake Kit (Part No. 140-14288-D) is engineered for maximum stopping performance, featuring a 6-piston AERO6 caliper finished in black powder coat paired with a 14.00" SRP Drilled & Slotted rotor. This is Wilwood's flagship big brake solution, purpose-built to deliver serious braking capacity for high-demand street, show, and dual-purpose street/track use.

Caliper Specifications:

• Caliper Type: AERO6
• Finish: Black Powder Coat
• Piston Count: 6 pistons per caliper
• Piston 1 Bore: 1.62 in.
• Piston 2 & 3 Bore: 1.12 in. each
• Total Piston Area: 4.04 in²
• Piston Type: Stainless Steel
• Mount Type: Radial

Brake Pad Specifications:

• Pad Plate: 6617
• Pad Area: 11.1 in²
• Pad Volume: 5.2 in³
• Pad Compound: BP-10

Rotor Specifications:

• Rotor Type: SRP Drilled Rotor
• Style: SRP Drilled & Slotted
• Surface Finish: Black Electro Coat
• Material: Spec-37 Iron
• Rotor Diameter: 14.00 in.

Key Features:

• Directional staggered vane rotor design maximizes airflow and cooling for sustained high-heat durability
• Fully compatible with OE master cylinder output and ABS function
• Stainless steel pistons reduce heat transfer to brake fluid for improved fade resistance
• Radial caliper mount for rigid, precise caliper positioning
• Black powder coat finish provides a premium appearance and corrosion protection
• Designed for use with 18-inch minimum wheel diameter (verify wheel clearance prior to installation)

This kit is recommended for experienced brake system installers. Note: Brake flex lines are not included and must be ordered separately to complete installation.
