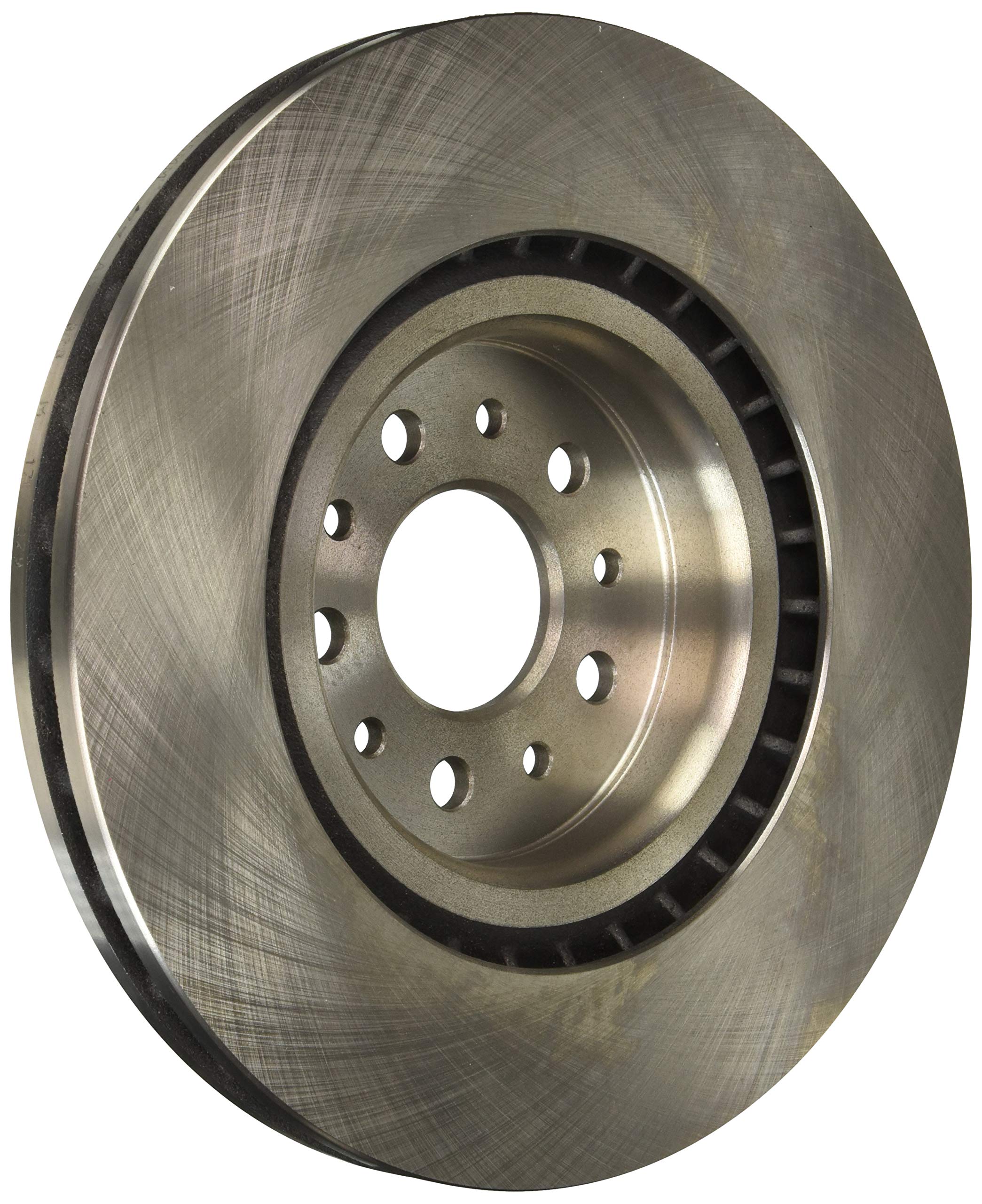

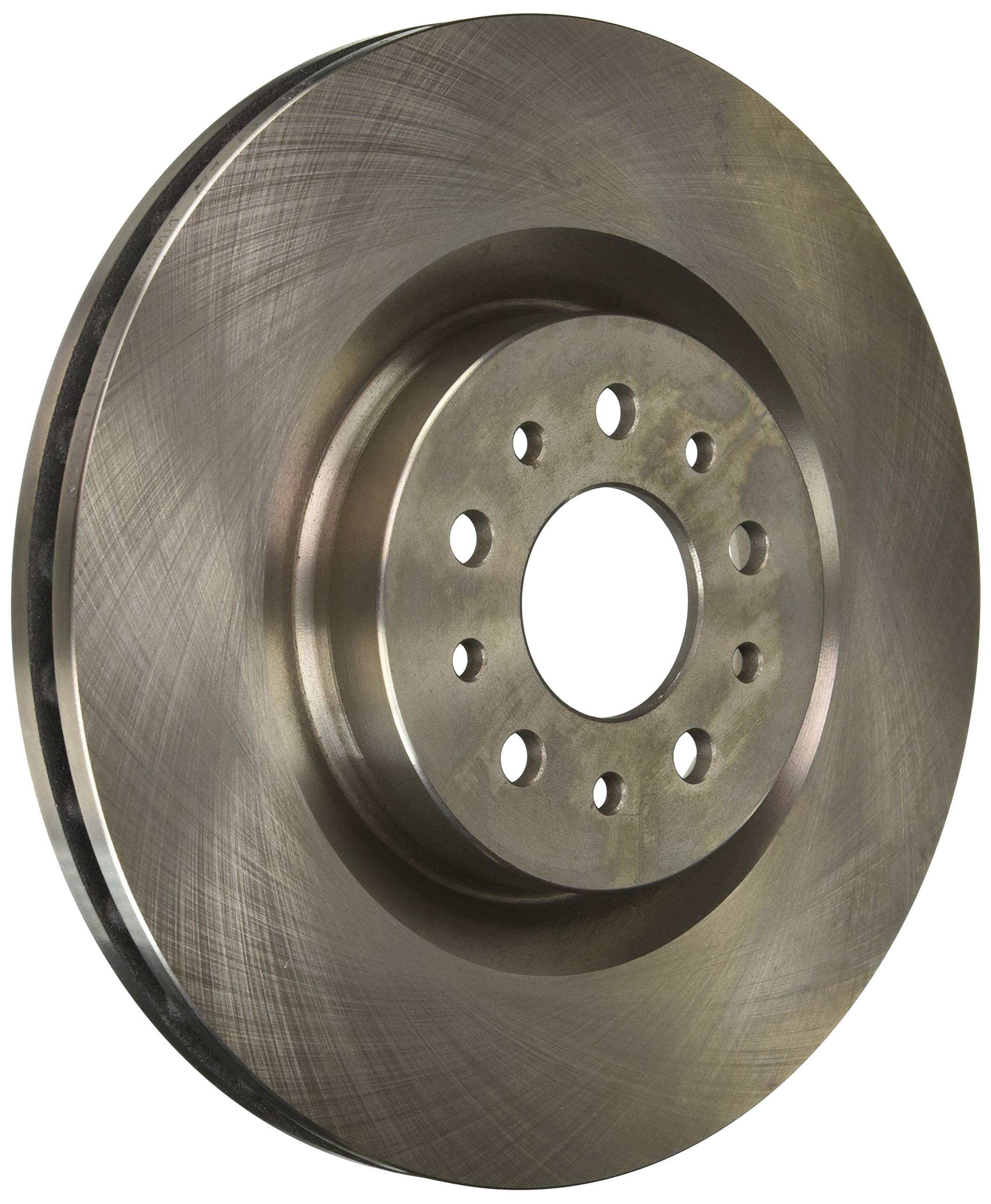

Raybestos 781950R R-Line Front Disc Brake Rotor - Vented 12.01 Inch

The Raybestos 781950R is a professional-grade R-Line front disc brake rotor engineered for everyday driving conditions. This vented rotor delivers dependable stopping power, safety, and performance for commercial and light-duty vehicles.

Key Specifications:

• Outside Diameter: 12.01 inches (305.0 mm)
• Nominal Thickness: 1.102 inches
• Discard Thickness: 1.004 inches
• Inner Diameter: 7.61 inches (193.3 mm)
• Vented design for superior heat dissipation
• 5-bolt mounting pattern with 3.858 inch bolt circle diameter
• Front axle position

Features and Benefits:

• Designed to meet or exceed OE specifications for precise fit and function
• Vented rotor vanes efficiently transfer brake-generated heat to passing air
• Engineered to dampen noise-generating vibrations and resist thermal fatigue
• Conventional rotor type with uniform braking surface machining
• Professional-grade construction adheres to stringent industry standards

The R-Line series from Raybestos represents over a century of brake engineering excellence, providing the most complete application-specific rotor coverage on the market. This rotor is manufactured to deliver consistent, reliable braking performance throughout its service life.

OEM Cross-Reference: Chrysler 68276444AA
