MAHLE 930249140 Small Block Ford PowerPak Piston & Ring Kit 4032 Forged 4.040 Bore 3.4 Stroke -16cc

Manufacturer

Part Number

930249140
Black Friday Price

$792.94

$808.52 Save 2%

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

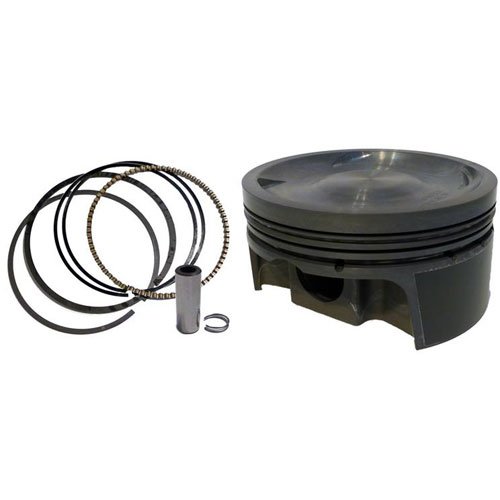

The MAHLE Motorsports 930249140 PowerPak Piston & Ring Kit is a complete, race-proven assembly engineered for Small Block Ford stroker applications. Built from forged 4032 high-silicon, low-expansion aluminum alloy, this kit delivers the tight cylinder-to-wall clearances and superior thermal stability demanded by high-performance and sportsman-class racing engines.

This kit is spec'd for a 348ci displacement stroker combination featuring a 4.040" bore and 3.400" stroke, producing a 9.0:1 compression ratio (referenced at 64cc chamber volume). Each piston features a -16cc dish dome volume, a 1.090" compression height, and accepts a 0.927" wrist pin. Piston weight is a precision-controlled 388 grams, optimized for a 5.4" connecting rod.

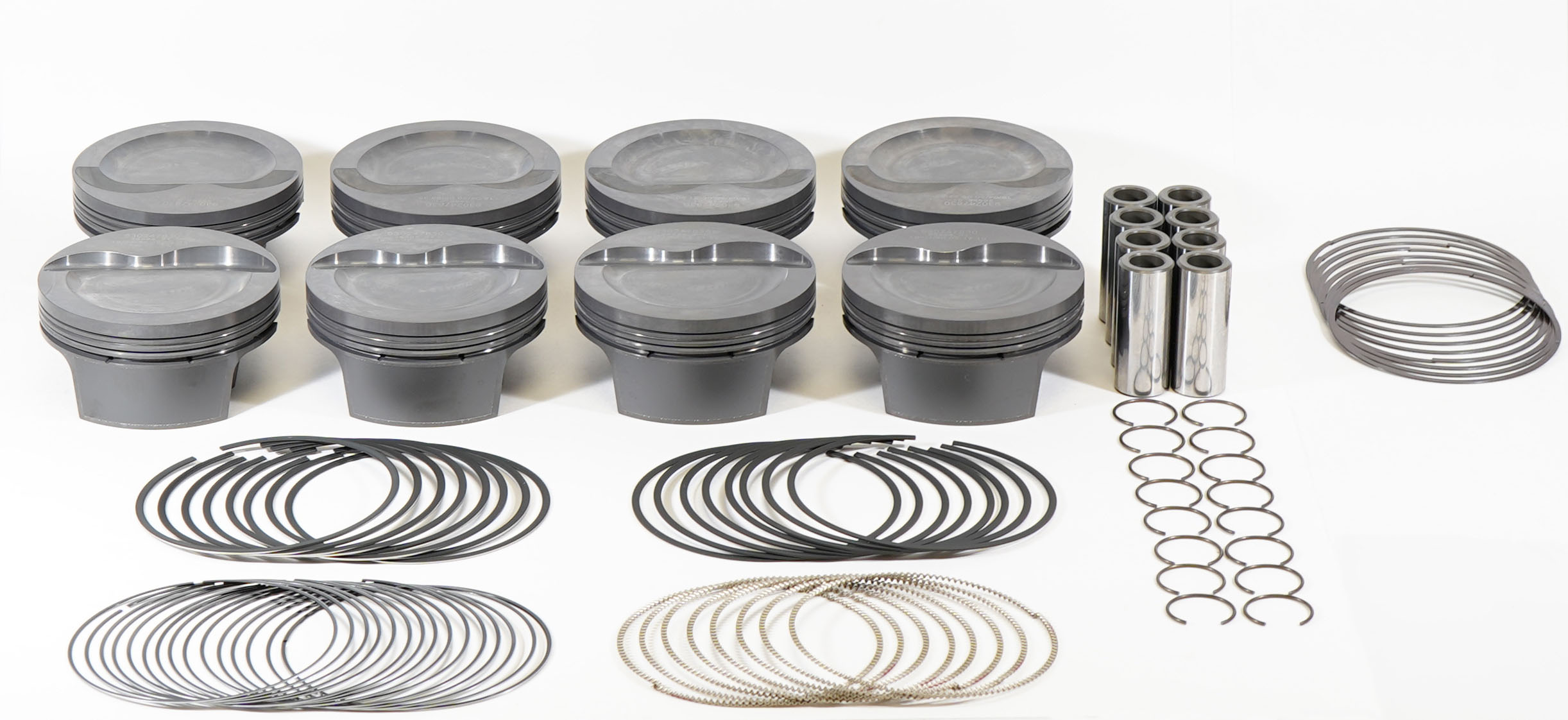

Kit Contents & Features:

  • Forged 4032 aluminum pistons — high-silicon alloy for improved temperature stability and tighter wall clearances
  • Low-drag performance ring set — ultra-flat ring grooves minimize parasitic drag for measurable horsepower gains
  • High-quality steel wrist pins — 0.927" diameter, precision-finished
  • Round wire locks included for secure pin retention
  • GRAFAL® anti-friction skirt coating — MAHLE's proprietary coating reduces drag, scuffing, friction, and cylinder bore wear
  • Phosphate dry lubricant coating — protects ring grooves and pin bores against micro-welding and galling during initial startup and break-in
  • Fully machinable piston crown for custom compression ratio tuning
  • Hand-deburred for consistent quality and precision fit

Technical Specifications:

  • Displacement: 348ci
  • Bore: 4.040"
  • Stroke: 3.400"
  • Rod Length: 5.4"
  • Compression Height (RCH): 1.090"
  • Wrist Pin Diameter: 0.927"
  • Dome Volume: -16cc (dish)
  • Piston Weight: 388g
  • Compression Ratio: 9.0:1
  • Alloy: 4032

MAHLE Motorsports brings over 90 years of racing heritage to every PowerPak kit. This is the same technology trusted by top professional race teams in NASCAR, American Le Mans, and countless other competitive series — now available for your high-performance SBF stroker build.

Products specifications

Piston Mass

387g

Pin Style

Floating

Piston Kit Quantity

Sold as a set of 8

Clips Included

Yes

Pins Included

Yes

Piston Material

Forged, 4032

Rings Included

Yes

Coatings

Phosphate plus Grafal

Piston Ring Thickness

1.0mm, 1.0mm, 2.0mm

Piston Style

Inverted Dome, With 2 valve reliefs

Crown Vol

-16cc

Clip Style

Round Wire

Pin Diameter

0.927

Prop 65

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Pin Material

Steel
