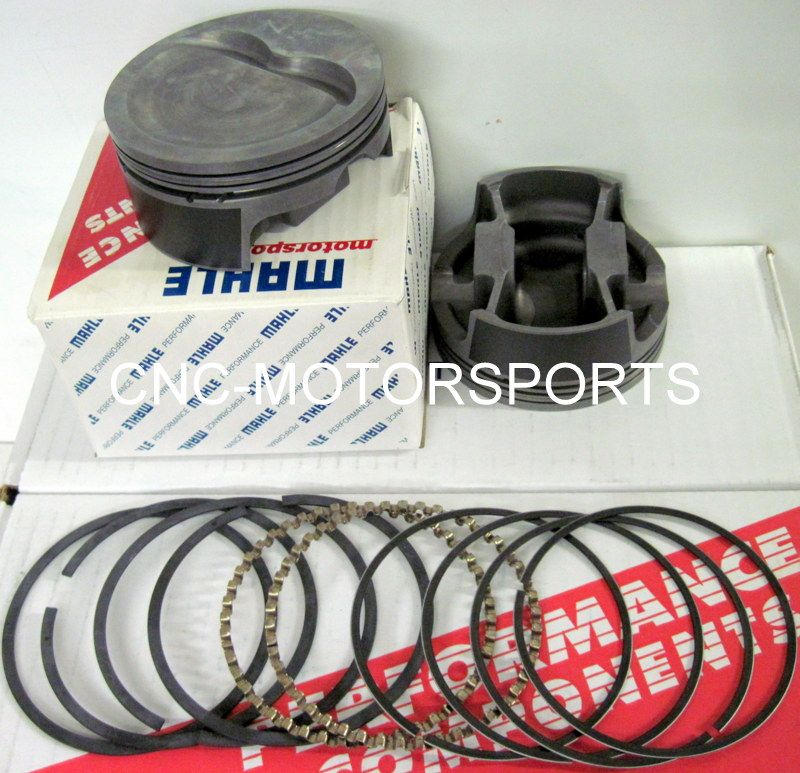

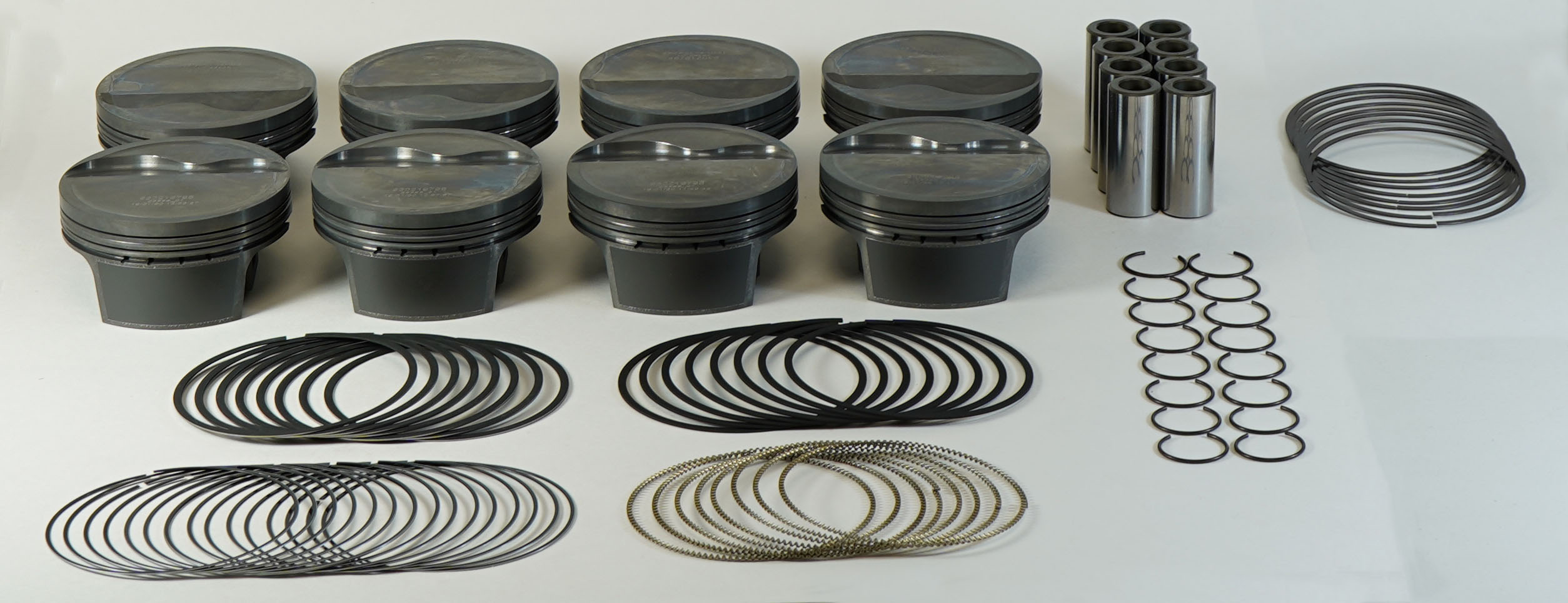

MAHLE 930219305 PowerPak Forged Piston & Ring Kit LS 403ci 4.005" Bore -12cc Inverted Dome

Manufacturer

Part Number

930219305
Black Friday Price

$749.02

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 930219305 is a complete PowerPak forged piston and ring kit engineered for high-displacement LS-based engines. Designed for use with LS1, LS2, and LS6 cylinder heads, this kit delivers a 403 cubic inch combination using a 4.005" bore and 4.000" stroke with a 6.125" rod length. The inverted dome (-12cc) piston design targets a 10.5:1 compression ratio, making it well-suited for naturally aspirated performance and street/strip builds.

Key Features:

  • Displacement: 403 cubic inches (6.6L)
  • Bore: 4.005"
  • Stroke: 4.000"
  • Rod Length: 6.125"
  • Compression Height (RCH): 1.105"
  • Wrist Pin Diameter: 0.927"
  • Dome Volume: -12cc (inverted dome)
  • Piston Weight: 403 grams
  • Compression Ratio: 10.5:1
  • Alloy: 4032 low-expansion forged aluminum
  • Ring Pack: Performance 1.0mm / 1.0mm / 2.0mm low-drag ring set included
  • Wrist Pin: 0.927" high-quality steel wrist pin included
  • Locks: Race-proven round wire locks included

GRAFAL Anti-Friction Skirt Coating is applied to each piston skirt, reducing drag, scuffing, and cylinder bore wear while allowing tighter piston-to-wall clearances for quieter operation. A phosphate dry lubricant coating on pin bores and ring grooves protects against micro-welding and galling during initial engine start-up and break-in.

Forged from 4032 low-expansion aluminum alloy, these pistons offer superior temperature stability and allow for tighter cylinder-to-wall clearances compared to standard 2618 alloy pistons. Pin bores are CNC precision machined for consistent fitment. Forced pin oiling provisions ensure increased wrist pin lubrication under demanding operating conditions.

The MAHLE PowerPak is a fully finished, drop-in forged piston assembly — everything is pre-assembled and ready to install. Backed by MAHLE's decades of motorsport manufacturing experience, these pistons are proven across circle track, drag racing, and high-performance street applications.

Products specifications

Rings Included

Yes

Pin Style

Floating

Crown Vol

-12.0cc

Clips Included

Yes

Piston Material

Forged, 4032

Coatings

Phosphate plus Grafal

Piston Ring Thickness

1.0mm, 1.0mm, 2.0mm

Pins Included

Yes

Clip Style

Round Wire

Piston Kit Quantity

Sold as a set of 8

Pin Diameter

0.927

Piston Mass

411g

Piston Style

Dish, With 2 valve reliefs

Prop 65

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Pin Material

Steel
