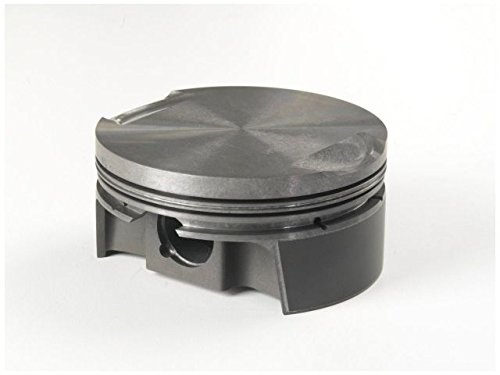

MAHLE 930276017 Performance Forged Piston Set - 345ci Hemi 3.917" Bore 10.8:1 Compression

Manufacturer

Part Number

930276017
Black Friday Price

$916.30

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 930276017 Motorsport forged piston set is engineered for high-performance 345 cubic inch Hemi engine builds. Manufactured from premium 2618 aluminum alloy, these pistons deliver exceptional strength and durability under extreme operating conditions, making them ideal for racing and high-output street applications.

Engine Specifications:

  • Displacement: 345 cubic inches
  • Bore: 3.917 inches
  • Stroke: 3.579 inches
  • Connecting Rod Length: 6.242 inches
  • Compression Height: 1.205 inches
  • Compression Ratio: 10.8:1
  • Dome Volume: 10.2cc

Piston Features:

  • 2618-T61 aluminum alloy construction for superior strength and thermal stability
  • 0.927 inch wrist pin diameter for robust piston-to-rod connection
  • Piston weight: 438 grams each (precisely balanced)
  • Anti-friction skirt coating reduces friction and wear during break-in
  • Optimized ring groove design for improved seal and reduced blow-by

This complete set includes all 8 pistons required for a V8 Hemi engine build. MAHLE's Motorsport series pistons are manufactured to exacting tolerances and undergo rigorous quality control to ensure consistent performance across the entire set. The 2618 alloy provides excellent resistance to detonation and maintains dimensional stability at elevated temperatures.

Products specifications

Piston Style

Floating

Pins Included

Yes

Piston Material

Forged, 2618

Piston Kit Quantity

Sold as a set of 8

Coatings

Phosphate plus Grafal plus Hard Anodized top ring groove

Crown Vol

10.2cc

Rings Included

Yes

Pin Diameter

0.927

Piston Mass

438g

Clip Style

Round Wire

Clips Included

Yes

Pin Style

Dome, w/ 2 valve reliefs

Piston Ring Thickness

1.0mm, 1.0mm, 2.0mm

Pin Style

Floating

Pin Material

Steel
