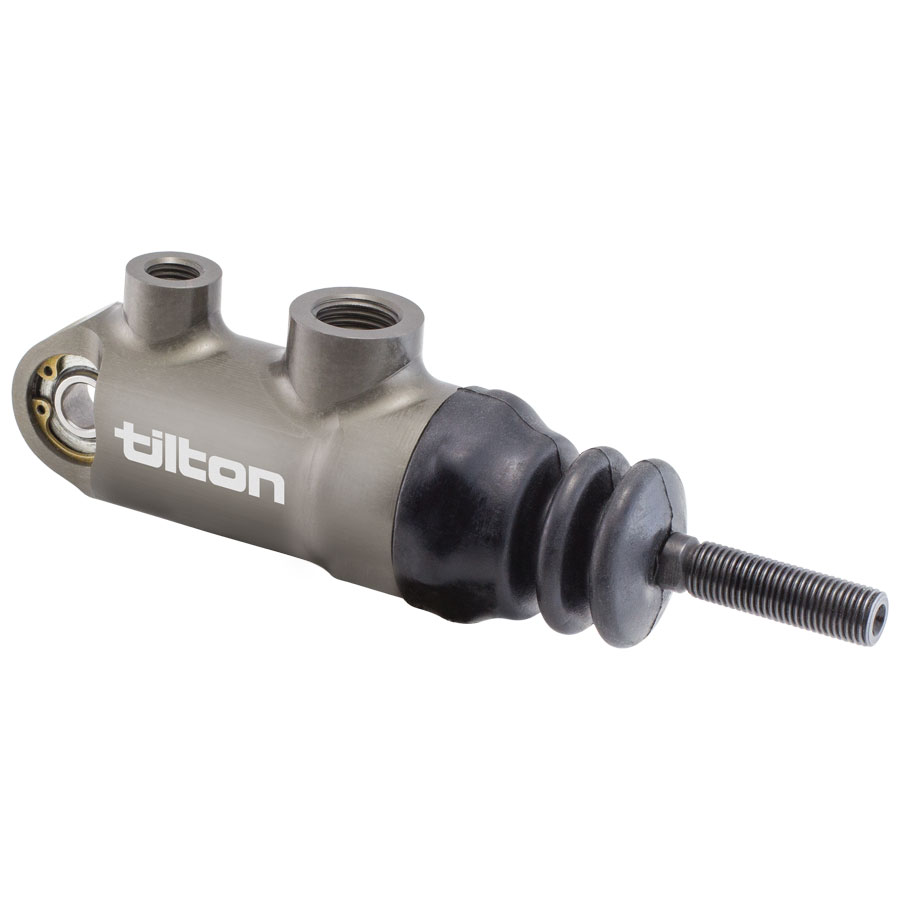

Tilton Engineering 78-875 Racing Master Cylinder 7/8 Inch Bore

The Tilton 78-Series master cylinder offers the latest in racing master cylinder technology in a very lightweight and compact design. Constructed from billet aluminum with proprietary low-friction coatings, this premium racing master cylinder is engineered for professional motorsports applications where precision and reliability are critical.

Key Features:

• Rear spherical bearing mount and one-piece piston/pushrod eliminate side thrust into the master cylinder bore, providing consistent and repeatable braking
• Billet aluminum body with proprietary low-friction coatings minimize wear and provide smooth operation
• Hand-built and blueprinted for cut-off port travel
• External dust boot included with O-ring seal at the main rod guide and body interface
• Directly interchangeable with 77-Series master cylinders
• Weighs only 0.43 lbs
• 7/8 inch (22.23mm) bore diameter

The 78-Series master cylinder is designed specifically for use with Tilton 800 and 900-Series pedal assemblies and balance bars, though it can also be incorporated into custom pedal assembly designs. Flexible lines must be used for inlet and outlet port plumbing. Compatible rebuild kit: 78-875RK.
