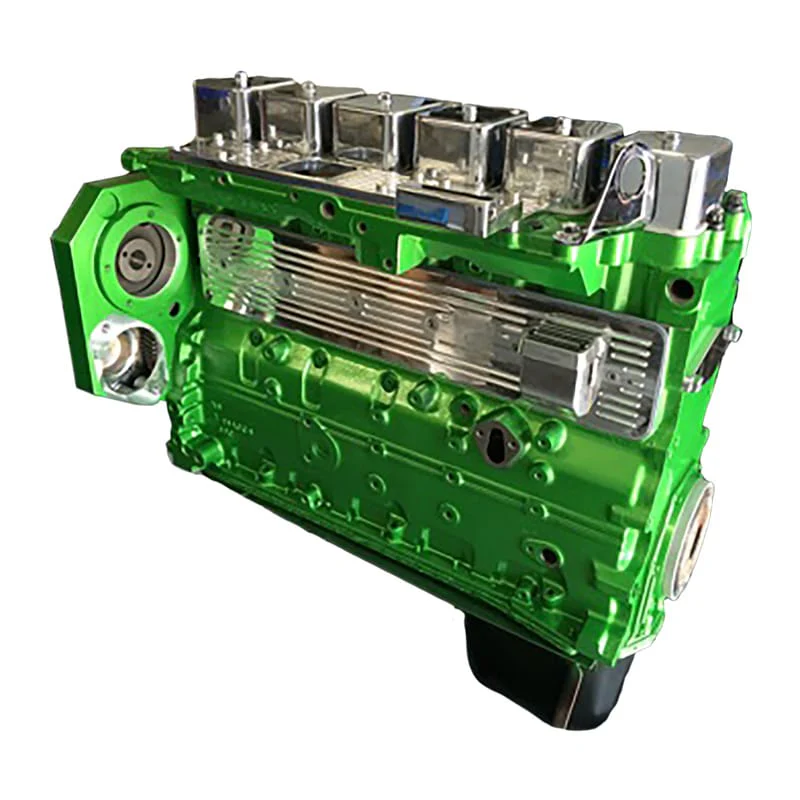

Industrial Injection PDM-12VRLB 5.9L Cummins 12 Valve Stage 2 Race Long Block Engine

The Industrial Injection PDM-12VRLB is a Stage 2 Race Long Block designed for those looking to push performance to the ultimate level in competition use. Carefully remanufactured with innovative machining processes, this race long block delivers exceptional durability and reliability. Rated for 1,500 horsepower, this complete engine assembly is built for serious diesel enthusiasts running large injectors, performance tuners, and big turbo upgrades.

Short Block Features:

• Balanced and blue printed rotating assembly with SIM tested short block
• Wagler HD forged connecting rods
• Fly cut, coated and chamfered pistons with .010 cut off the top and .100 valve reliefs
• 14mm Gorilla Girdle with ARP main studs
• Balanced Cummins crankshaft
• Industrial Injection Stage 2 race performance cam with cam bearings installed in all journals to prevent cam and block wear
• Coated H Series main and rod bearings
• Billet freeze plugs and premium killer dowel pin kit
• New oil pump, water pump, oil cooler, and oil pickup tube
• Big Iron stamped oil pan

Cylinder Head Specifications:

• Stage 1 Race ported cylinder head with hand blended CNC porting on valve bowls, intake and exhaust ports
• Intake shelf machined off to accept ZZ Fab side runner
• New diamond honed valve guides and new stainless steel valves
• Radius cut fire ring head gasket with milled and surfaced fire ringed head
• ARP 625 head studs
• 150lb performance valve springs
• Includes rocker assembly and stock pushrods (upgraded pushrods available separately)

Important Notes:

• All Industrial Injection short blocks and long blocks are required to be ran with Joe Gibbs Break In Oil (not included) for the initial 300-500 miles
• Does not include valve covers, additional gaskets for assembly, or ZZ Fab side runner
• One year warranty included
• Core charge of $3,200.00 applies in addition to listed price
• Not available for sale in California

Industrial Injection uses the highest quality parts and machining processes in every engine build, guaranteeing the utmost reliability and precision for the most demanding diesel performance applications.
