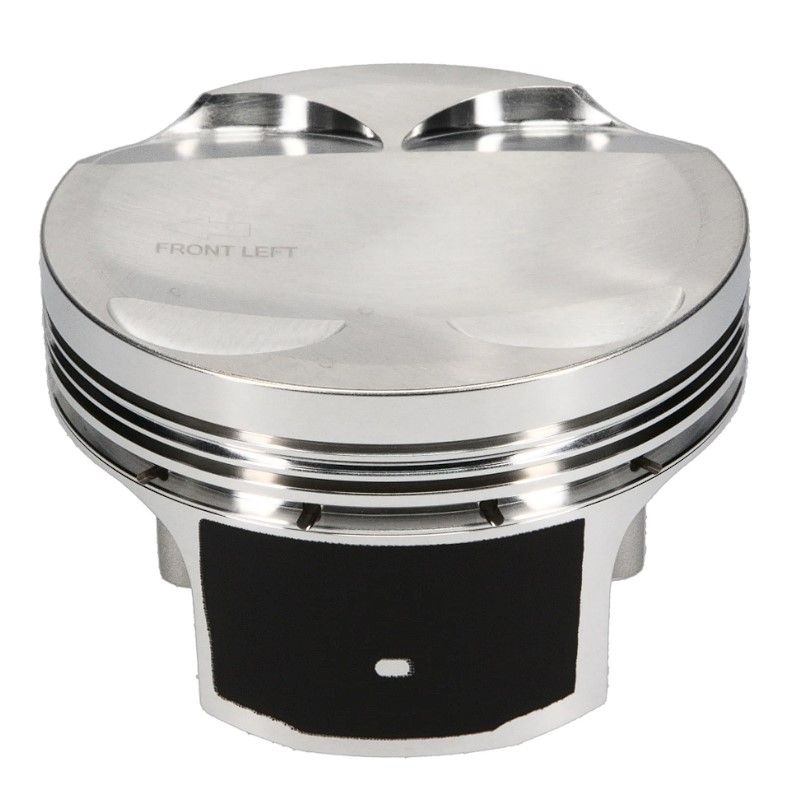

JE Pistons 314700 Piston Set, 2618, Inv Dome/dish, 3.622 Bore, 1.320 Cd, 0.866 Pin, Set Of 8.

Part of: JE Pistons Piston Set Inv Dome/dish Bore Cd Pin Set Of

Other options in this family: JE Pistons 296348 JE Pistons 291059 JE Pistons 367877 JE Pistons 367846 JE Pistons 357430

Manufacturer

Picture for manufacturer JE Pistons

Part Number

314700
14 reviews
Sale Price

$989.99

Estimated ship date Wednesday, November 11

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The JE Pistons 314700 is a forged 2618 aluminum piston set engineered for high-horsepower Ford Modular 5.4L 4-valve applications. Built around JE's dedicated Forged Side Relief (FSR) forging design, this set delivers an exceptional balance of lightweight construction and race-proven durability suited for both street performance and competition use.

The FSR forging design strategically removes mass in low-stress areas while reinforcing high-load zones, resulting in a piston that is both lighter and stronger than traditional designs. Each piston features a -7.5cc inverted dome/dish crown with precision-machined valve reliefs to accommodate aftermarket camshafts with aggressive lift profiles.

A key advantage of this set is the raised compression height (1.320 in. CD), which positions the piston crown closer to the top of the deck. This improvement over stock geometry significantly enhances combustion efficiency and flame travel for more complete cylinder burn.

Key Specifications:

  • Alloy: 2618 forged aluminum
  • Bore diameter: 3.622 in.
  • Compression height (CD): 1.320 in.
  • Dome/dish volume: -7.5cc (inverted dish)
  • Wrist pin diameter: 0.866 in.
  • Stroke: 4.165 in.
  • Rod length: 6.657 in.
  • Piston weight: 372 grams each
  • Ring groove compatibility: 1.0mm / 1.2mm / 2.8mm and 1.2mm / 1.5mm / 3.0mm
  • Compression ratio: 11:1
  • Set quantity: 8 pistons

Included:

  • 8 forged 2618 FSR pistons
  • .150 in. wall 5115 alloy wrist pins (standard)

Optional upgrade to .230 in. wall 9310 alloy wrist pins is available and recommended for builds exceeding 700 horsepower. Each piston in this set is serialized and individually inspected to exacting tolerances, ensuring dimensional conformity and consistent compression ratios right out of the box.

Products specifications

Add-On

866-2250-15-51C

Add-On

JG1008-3622

Product Market

Domestic

Cylinder Head

MODULAR 4.6 4V

Oil Ring Thickness

0.111

Piston Avg Wt

372

Piston Pin Material

5115

Ringset Included

No

Out of Stock Message

Call for Availability

Piston Pin Wall Thickness

0.150

Compression Height

1.320

Piston Pin Length

2.250

Piston Head Type

Dish

Bore Diameter

3.622

Second Compression Ring Thickness

0.048

Piston Volume

-7.5

Category Hierarchy

Pistons>Piston Kits

Piston Material

2618

Top Compression Ring Thickness

0.04

Engine

MODULAR FORD

Make

Ford

Piston Pin Outside Diameter

0.866

Add-On

866-063-MW

Industry

Automotive

Forging Type

FSR

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Piston Quantity

8
