QA1 KMR4T K-Series 3-Piece Carbon Steel PTFE-Lined Rod End Bearing 1/4" Bore RH Male

Manufacturer

Part Number

KMR4T

10 reviews

Sale Price

$9.81

Estimated ship date Saturday, November 21

Check out with

No Hassle Returns

Live-in-stock inventory

Fitment guaranteed

Show details for QA1 KMR4T K-Series 3-Piece Carbon Steel PTFE-Lined Rod End Bearing 1/4" Bore RH Male

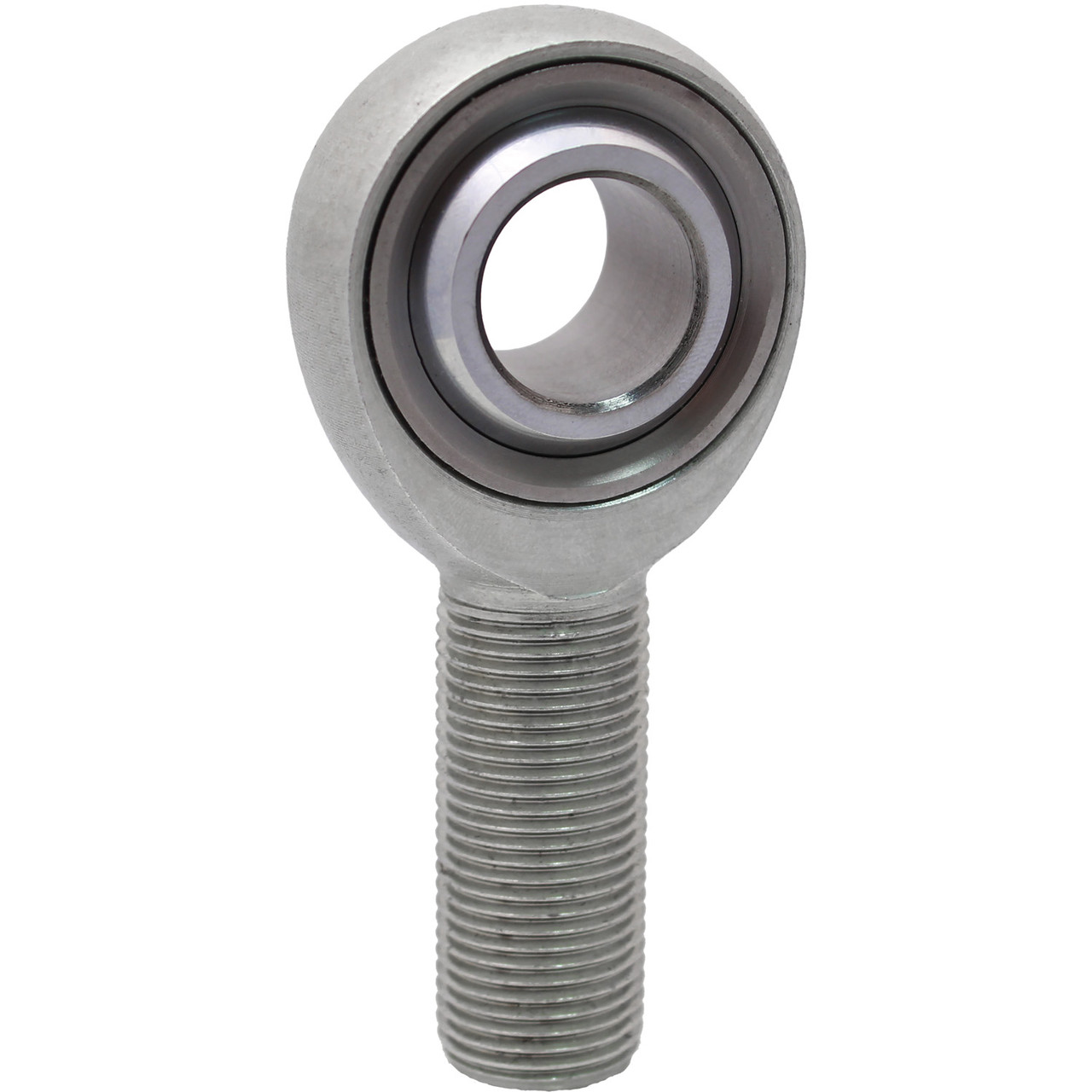

Picture of QA1 KMR4T K-Series 3-Piece Carbon Steel PTFE-Lined Rod End Bearing 1/4" Bore RH Male

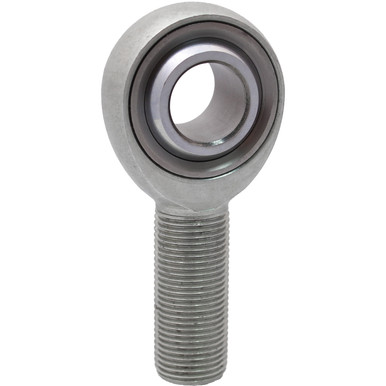

QA1 KMR4T K-Series 3-Piece Carbon Steel PTFE-Lined Rod End Bearing 1/4" Bore RH Male — image 1

QA1 KMR4T K-Series 3-Piece Carbon Steel PTFE-Lined Rod End Bearing 1/4" Bore RH Male — image 2

QA1 KMR4T K-Series 3-Piece Carbon Steel PTFE-Lined Rod End Bearing 1/4" Bore RH Male — image 3

Product Details

The QA1 KMR4T is a precision-engineered K-Series three-piece carbon steel rod end bearing featuring a PTFE race liner for smooth, self-lubricating, maintenance-free operation. Designed for performance automotive, racing, and suspension linkage applications, this male right-hand rod end offers a 1/4" bore with 1/4-28 right-hand threads.

Key Features:

Three-piece alloy steel construction — carbon steel body with protective coating for corrosion resistance
52100 bearing steel ball — heat treated, hard chrome plated, and precision ground for durability and low friction
Alloy steel race — corrosion and wear resistant with a PTFE (polytetrafluoroethylene) liner for self-lubricating, maintenance-free performance
Male mounting configuration with 1/4" bore and 1/4-28 right-hand thread
Available in right- and left-hand thread variants across the KM-T series
Manufactured to ISO 9001 quality standards

The KM-T series builds on QA1's traditional three-piece carbon steel KM rod end by adding a PTFE fabric liner to the race, reducing the need for lubrication and extending service life in street and performance applications. This rod end is well-suited for control arms, steering linkages, suspension adjusters, and other precision linkage uses where smooth articulation and dimensional accuracy are required.

Products specifications

A (+/-0.015)

1.562

Approx Bearing Weight

0.04

B (+0.0015/-0.0005)

0.25

Ball Dia Ref

0.5

C (+0.062/-0.031)

D (+/-0.010)

0.75

Grease Fitting

Heat-Treated

Yes

Jam Nut Included

Misalign Angle

Notes

Only rod end ball and race are heat-treated.

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.375 in.

Rod End Centerline Length

1.562 in.

Rod End Construction

3-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.250 in.

Rod End Head Diameter

0.750 in.

Rod End Head Width

0.375 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

16 degrees

Rod End Static Load Capacity

2,158 lbs.

Rod End Style

PTFE lined

Rod End Thread Size

1/4-28 RH in.

T (+/-0.005)

0.281

Thread Length

1.000 in.

Thread Type

Right Hand

Thread UNF-3A

1/4 -28

UTL Radical Static

2158

W (+0.000/-0.005)

0.375
