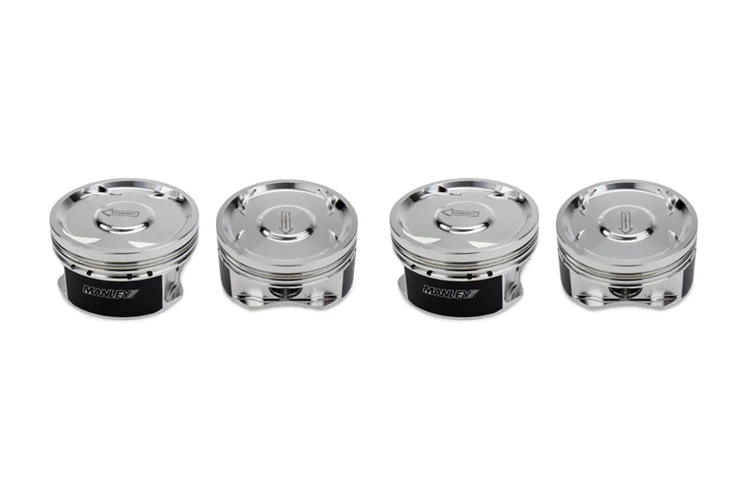

Manley 632200CE-4 Platinum Series Extreme Duty Pistons 99.5mm Bore 8.5:1 CR

Manufacturer

Part Number

632200CE-4
Black Friday Price

$941.12

Estimated ship date Saturday, December 05

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 632200CE-4 Platinum Series Extreme Duty pistons represent the pinnacle of high-performance piston design for Subaru EJ257 engines. Part of Manley's Turbo Tuff lineup, these pistons incorporate proven design enhancements from their Formula-Won piston forging to withstand extreme boost and high-stress applications while maintaining quiet, trouble-free operation for daily driving.

Turbo Tuff Design Features:

  • Thicker skirt walls for enhanced durability
  • Increased corner cross sections for improved strength
  • Formula-Won strutted forging design
  • Outboard pin bosses for optimal load distribution
  • Offset wrist pin design for quiet start-ups

Platinum Series Construction:

  • 2618 high-strength aluminum alloy forgings
  • Moly-coated skirts for reduced friction
  • Lightweight design for improved performance
  • Pressure balance groove
  • Accommodates +1mm oversized valves
  • 9310 alloy wrist pins with 0.250-inch wall thickness

Premium Ring Package:

  • Steel top compression rings
  • Napier-style second rings by Total Seal
  • Higher tension oil rings for superior oil control
  • Round wire locks included

Specifications:

  • Bore: 99.50mm (standard size)
  • Compression ratio: 8.5:1 (dish)
  • Recommended clearance: .003 inch for mild boost, .0035 inch for high boost
  • Clearance measured .850 inch (79/83mm stroke) or 1.100 inch (75mm stroke) from bottom of oil ring groove

Complete Kit Includes:

  • (4) Forged pistons
  • (4) Piston ring sets
  • (4) Wrist pins
  • (4) Round wire locks

Manufactured in the United States, these pistons are engineered for extreme-duty applications including high-boost turbo builds while maintaining reliability for street use.

Products specifications

Piston Quantity

4

Bore Diameter

99.50

Make

SUBARU

Piston Head Type

Dish

Compression Height

1.209

Engine Type

ICE

Product Type

Engine Piston Kit

Piston Volume

-22.00

Compression Ratio

8.50:1

Engine

2.5L EJ257 WRX STi

Engine Stroke

79.00

Bore Oversize

Stock

Engine Stroke Type

Stock

Weight

405

Piston Series

Turbo Tuff?

Piston Sub-Series

Extreme Duty

Title

Manley Piston Set, PIST-SUBARU 99.5mm/GRADE B T/T
