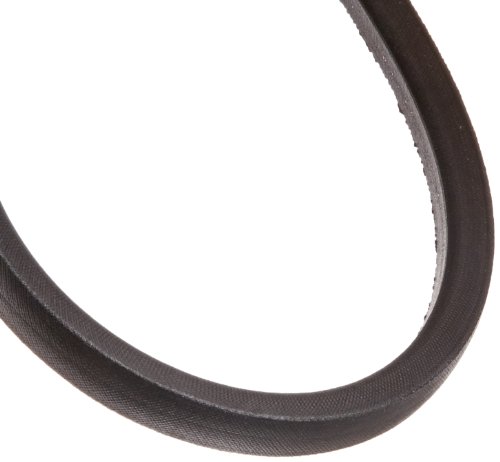

Gates A137 Hi-Power II Classical V-Belt Accessory Drive Belt

The Gates A137 Hi-Power II is a premium wrapped classical V-belt designed for reliable power transmission in agricultural and industrial applications. This A-section belt features a 137-inch inside circumference (139-inch outside length) and is built to deliver long-lasting performance in demanding environments.

Key Features:

• Flex-Weave oil and heat resistant cover provides extended protection from oil, dirt, and heat while enabling use in clutching applications
• Vulcanized Flex-bonded polyester cords ensure superior resistance to tensile forces, fatigue, and shock loads with uniform load distribution
• Gates Curves optimized cross-section delivers proper cord support and full pulley contact for uniform wear and extended belt life
• Arched top design prevents dishing and distortion of the tensile section for maximum strength
• V80 matching system allows use in multiple-belt drives without match codes
• Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements

Specifications:

• Section: A (Classical)
• Top Width: 1/2 inch
• Thickness: 5/16 inch
• Inside Length: 137 inches
• Outside Length: 139 inches
• Material: EPDM rubber with polyester reinforcement
• Temperature Range: -22°F to +140°F
• Minimum Pulley Diameter: 4.138 inches

This heavy-duty V-belt is ideal for HVAC systems, conveyor systems, air compressors, centrifugal pumps, crushers, and other power transmission applications. Can be used individually or in matched sets for higher horsepower requirements.
