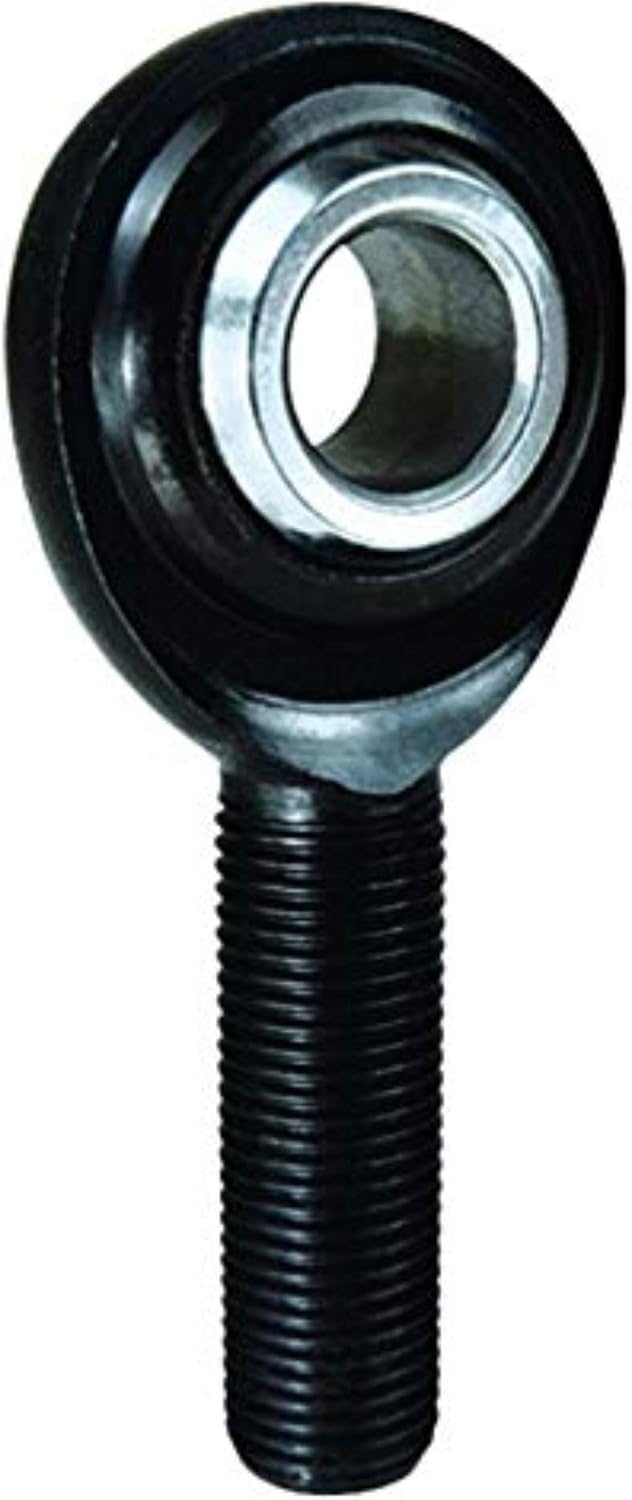

QA1 Precision Products CMR8-10 Carbon Fiber Rod End 1/2 x 5/8

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

CMR8-10
5 reviews
Sale Price

$9.22

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 Precision Products CMR8-10 is a high-performance 2-piece carbon steel rod end designed for demanding steering and suspension applications. This chromoly rod end features a 1/2-inch thread size with right-hand threads and a 5/8-inch bore, providing exceptional strength and precision for tie rods, suspension links, and other critical chassis components.

Key Features:

  • 2-piece carbon steel construction for maximum durability
  • 1/2-inch male right-hand thread size
  • 5/8-inch bore diameter
  • Chromoly steel housing for superior strength-to-weight ratio
  • Precision-machined bearing race for smooth articulation
  • Ideal for steering linkages, suspension systems, and chassis fabrication
  • Designed for racing and high-performance street applications

QA1 Precision Products rod ends are engineered to withstand extreme loads and provide consistent performance in the most demanding motorsports and street performance environments. The CMR8-10's carbon steel construction ensures long service life while maintaining the tight tolerances required for responsive handling and safety-critical steering applications.

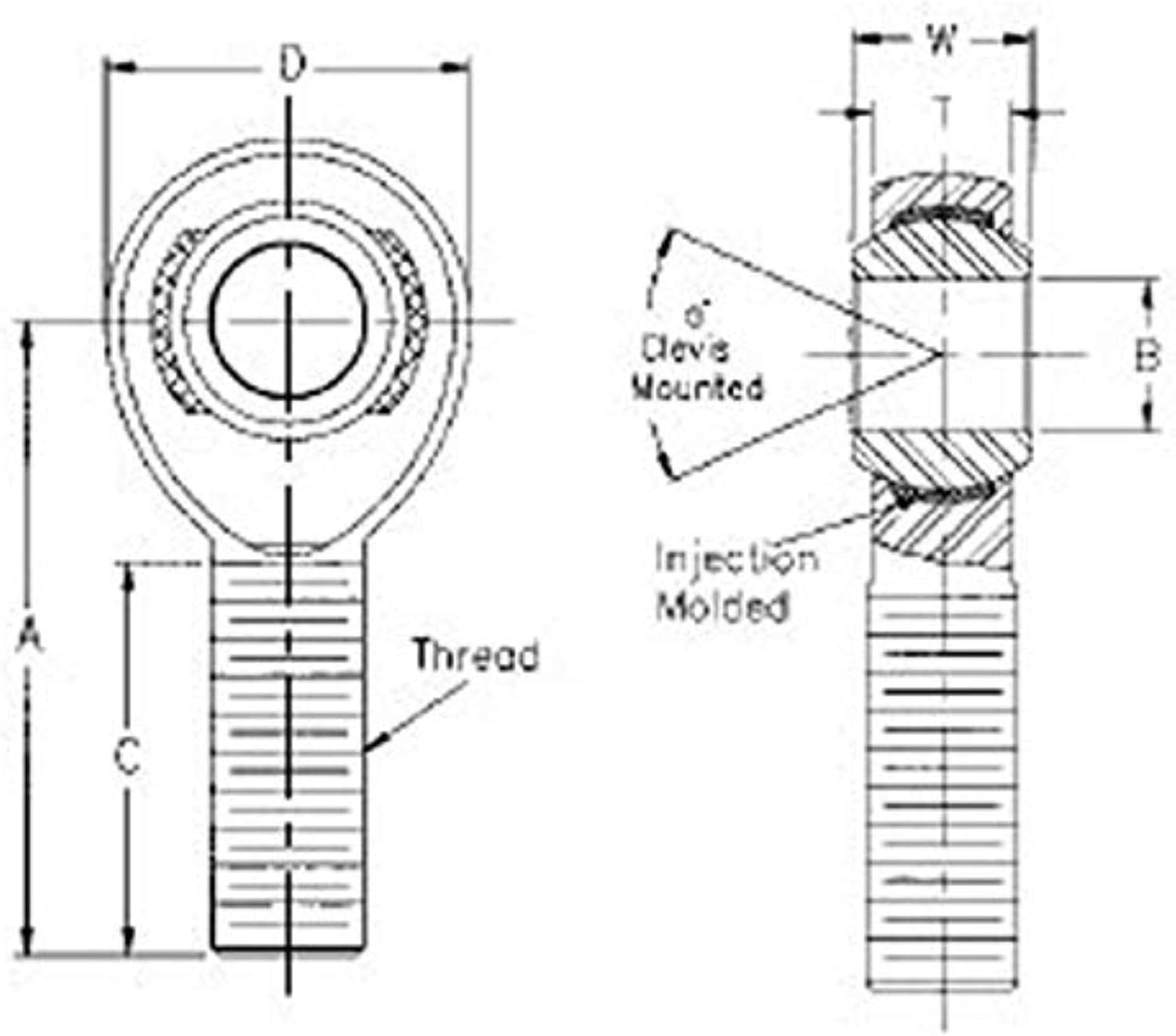

Products specifications

A (+/-0.015)

2.625

Approx Bearing Weight

0.34

B (+0.0025/-0.0005)

0.5

Ball Dia Ref

0.937

C (+0.062/-0.031)

1.625

D Ref

1.5

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

20

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.625 in.

Rod End Centerline Length

2.625 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.500 in.

Rod End Head Diameter

1.500 in.

Rod End Head Width

0.625 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

20 degrees

Rod End Static Load Capacity

13,729 lbs.

Rod End Style

Metal to metal

Rod End Thread Size

5/8-18 RH in.

Thread Length

1.625 in.

Thread Type

Right Hand

Thread UNF-3A

5/8 -18

UTL Radical Static

11532

W (+/-0.005)

0.625

Prop 65 - Short Label

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov

Title

QA1 Suspension Rod End Bearing CMR8-10

Prop 65 Yes/No

Yes
