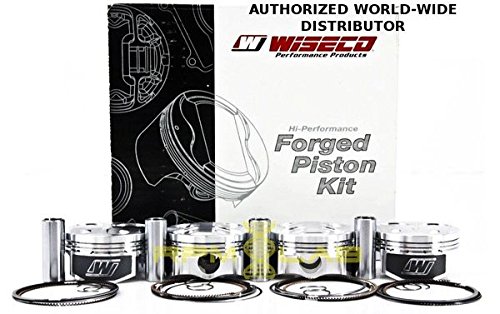

Wiseco K594M855AP Sport Compact Forged Piston Kit 85.5mm Bore 13.5:1 Honda B18C

Manufacturer

Part Number

K594M855AP
Black Friday Price

$831.99

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wiseco K594M855AP is a high-compression forged piston kit designed for Honda B18C VTEC engines.

Each piston is produced from a dedicated in-house forging using aluminum alloy, delivering a lightweight yet exceptionally strong component optimized for high-RPM and power-adder applications. The pistons come standard with ArmorGlide® skirt coating to reduce friction and power loss, and feature ArmorPlating™ on the dome to minimize heat absorption, resist detonation, and provide a hard, smooth ring seating surface.

Key Features:

  • Bore: 85.5mm (3.366 in.)
  • Compression Ratio: 13.5:1
  • Compression Height: 30.0mm (1.181 in.)
  • Stroke: 87.2mm (3.433 in.)
  • Rod Length: 138.0mm (5.433 in.)
  • Wrist Pin Diameter: 21mm
  • Dome Volume: 8.3cc
  • Block Height: 212mm
  • Piston Weight: 292g (per piston)
  • Replacement Rings: 8550XX (Steel Nitride/Napier XX)
  • Replacement Pin: S561
  • Engineered, forged, and machined in the USA

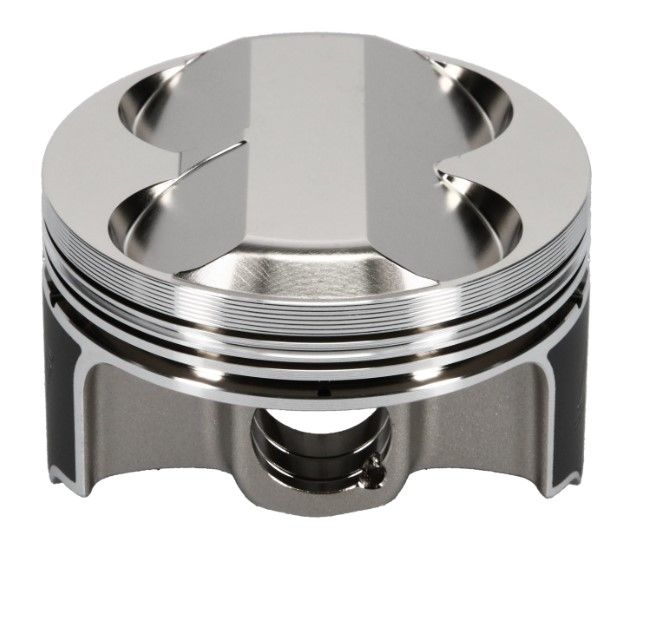

The multi-valve piston design features specially engineered valve pockets, complex dome and crown geometry to maximize intake charge efficiency, and optimized skirt profiles for reduced friction and improved ring seal. Precision CNC-machined ring grooves with calculated groove root diameters and axial widths minimize blow-by and oil consumption. The crown shape promotes cross-flow scavenging during valve overlap for increased volumetric efficiency.

Wiseco sport compact piston kits include high-quality piston rings suited for use with turbocharged, supercharged, nitrous oxide, or naturally aspirated builds. Replacement rings (PN: 8550XX) and wrist pin (PN: S561) are available separately.

Products specifications

Piston Quantity

4

Wrist Pin Style

Floating

Piston Material

2618

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Bore Diameter

85.50

Make

Honda

Industry

Automotive

Product Market

Sport Compact

Engine Type

ICE

Engine

B16A

Oil Ring Thickness

2.8

Wrist Pin Material

5115

Product Series

Professional

Product Type

Engine Piston Set

Wrist Pin Outer Diameter

0.827

Compression Height

30.00

Forging Type

Strutted

Out of Stock Message

Estimated Shipped Date 3-4 Weeks

Piston Volume

8.30

Second Compression Ring Thickness

1.2

Top Compression Ring Thickness

1.0

EBAY Category ID

33623

Engine - Web

B Series

Engine Detail

Honda B16A

Make - Web

Honda

Ring Set Included

Yes

Skirt Coating

Yes

Wrist Pin Included

Yes

Title

Wiseco - Honda, B16A, 85.50 mm Bore, Piston Set of 4

Title - Web

Professional Honda B16A Piston Set of 4 - 85.50 mm Bore - 30.00 mm CH, 8.30 CC
