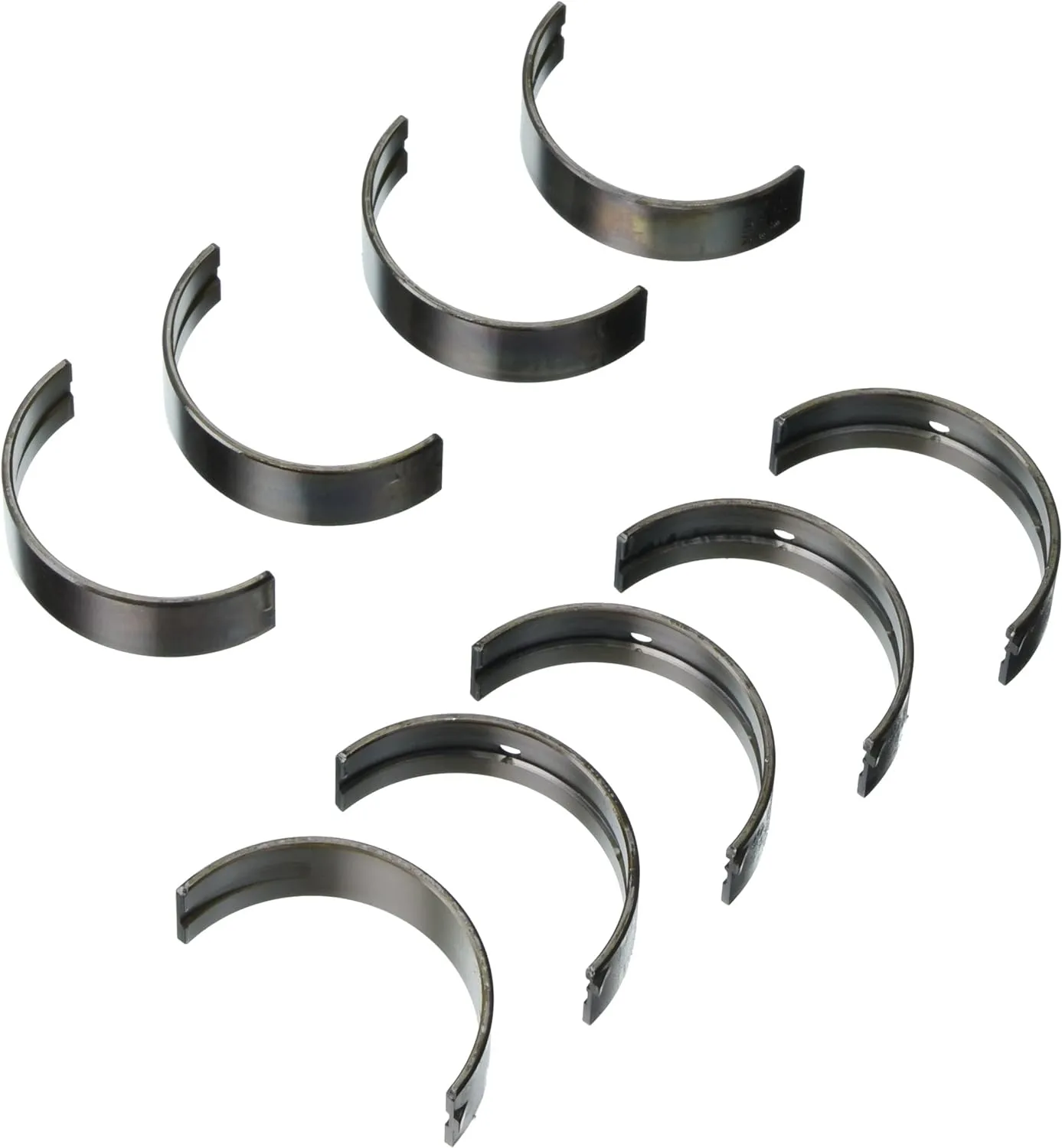

ACL Bearings 5M8412HX-STD Race Series Main Bearing Set - Standard Size with Extra Oil Clearance

Manufacturer

Part Number

5M8412HX-STD
Black Friday Price

$107.19

Estimated ship date Thursday, December 10

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ACL Bearings 5M8412HX-STD Race Series Main Bearing Set is engineered for high-performance and racing applications where superior durability and precision are essential. Designed for Toyota 1AZ-FE (2.0L) and 2AZ-FE (2.4L) engines, this standard size bearing set features extra oil clearance (HX) for enhanced lubrication in demanding conditions.

Race Series Performance Features:

  • High-strength tri-metal construction with reduced overlay thickness for improved fatigue resistance
  • Hardened steel backing for maximum support and superior bearing retention
  • Increased crush design ensures optimal bearing retention in the housing
  • No flash plating on bearing backs to maximize heat transfer and improve grip
  • Increased eccentricity compensates for bore distortion at high RPM and assists hydrodynamic oil film formation
  • Precision manufacturing with tight tolerances for consistent oil clearance
  • Durable overlay coating resists scoring and embeds contaminants

Technical Specifications:

  • Bearing Material: High-performance tri-metal alloy
  • Size: Standard (STD) with Extra Oil Clearance (HX)
  • Includes upper and lower bearing shells
  • Max shaft diameter: 2.165 inches (54.988-55mm)
  • Max housing bore: 2.324 inches (59-59.016mm)

ACL Race Series bearings are trusted by professional engine builders and racers worldwide, with over 50 years of metallurgical expertise and race-proven performance. The HX designation provides additional oil clearance compared to standard H-series bearings, making this set ideal for high-RPM applications, turbocharged engines, and racing builds where increased oil flow is beneficial. Note that thrust washers are sold separately.

Products specifications

Max Overall Length

0.6693" (17.00mm)

Max Std Shaft Size

2.1654" (55.000mm)

Max Std Tunnel Size

2.3235" (59.016mm)

Max Wall at Crown

0.0781" (1.983mm)

Min Std Shaft Size

2.1649" (54.988mm)

Min Std Tunnel Size

2.3228" (59.000mm)

Oil Clearance

+ 0.001" Extra

Size

Standard
