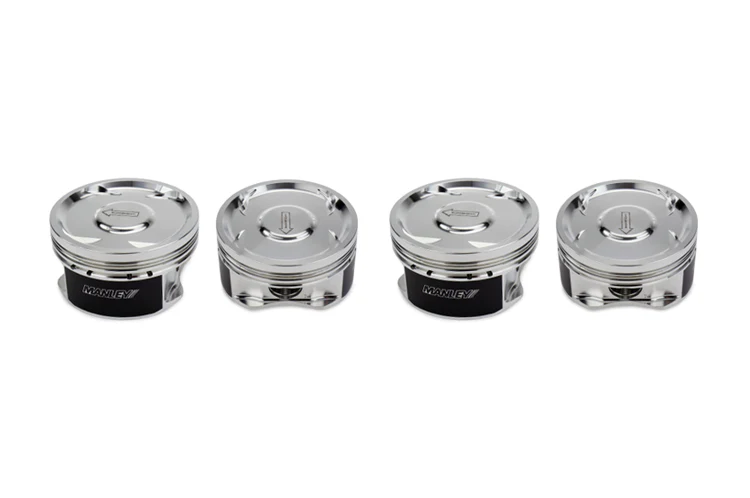

Manley 632200C-4 Turbo Tuff Forged Piston Set 99.5mm Bore 8.5:1 Compression

Manufacturer

Part Number

632200C-4
Black Friday Price

$808.61

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 632200C-4 Turbo Tuff Piston Set represents the pinnacle of high-performance engine components, specifically engineered for Subaru EJ257 engines. These premium forged pistons are manufactured from 2618 high-strength aluminum alloy, offering exceptional durability for both high-boost turbocharged applications and reliable street driving.

Key Features:

  • 99.5mm standard bore diameter with 8.5:1 compression ratio
  • -22cc dish design optimized for turbocharged applications
  • 2618 aluminum alloy forging with Formula-Won strutted design
  • Moly-coated skirts for reduced friction and enhanced longevity
  • Offset wrist pin design for quieter cold starts
  • Thicker skirt walls and increased corner cross sections for added strength
  • Pressure balance groove for improved stability
  • Machined to accommodate +1mm oversized valves
  • Premium 2.500" x .180" wall chrome-moly wrist pins included
  • Complete premium steel ring sets with Napier-style second rings
  • Higher tension oil rings for superior oil control
  • Round wire locks included
  • Each piston weighs approximately 405 grams

This complete kit includes four pistons, four piston ring sets, four wrist pins, and four round wire locks. The Turbo Tuff series incorporates design enhancements from Manley's race-proven Formula-Won forging, featuring outboard pin bosses and reinforced construction to withstand extreme boost levels while maintaining quiet, trouble-free operation for daily driving. Recommended piston clearance is .003" for mildly boosted applications and .0035" for highly boosted setups, measured .850" from the bottom of the oil ring on 79/83mm stroke engines. Manufactured in the United States with precision machining and finishing processes that set the standard for aftermarket performance pistons.

Products specifications

Piston Quantity

4

Bore Diameter

99.50

Make

SUBARU

Piston Head Type

Dish

Compression Height

1.209

Engine Type

ICE

Product Type

Engine Piston Kit

Piston Volume

-22.00

Piston Sub-Series

Standard

Compression Ratio

8.50:1

Engine

2.5L EJ257 WRX STi

Engine Stroke

79.00

Bore Oversize

Stock

Engine Stroke Type

Stock

Weight

405

Piston Series

Turbo Tuff?

Title

Manley Piston Set, PIST-SUBARU 99.5mm/1.209 CD/DISH T/T
