BorgWarner 12709095019 S200SX-E Super Core Assembly 52mm Turbo 300-550HP

Manufacturer

Picture for manufacturer Borg Warner

Part Number

12709095019
19 reviews
Sale Price

$696.31

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

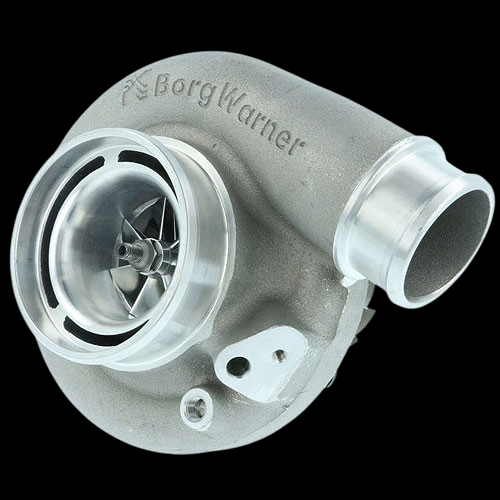

The BorgWarner 12709095019 is a high-performance S200SX-E Super Core Assembly designed for forced induction applications ranging from 300 to 550 horsepower. Part of the AirWerks turbocharger series, this super core features a 52.17mm (2.05-inch) compressor inducer and a 70mm (2.74-inch) turbine wheel, delivering exceptional boost response and efficiency for performance builds.

Key Features:

  • Twin hydrodynamic journal bearing design for durability and reliability
  • Forged milled compressor wheel for maximum strength and flow efficiency
  • 360-degree thrust bearing for improved stability under high boost conditions
  • Integrated speed sensor port for monitoring turbo performance
  • Pre-machined boost port for simplified installation
  • Optimized compressor stage aerodynamics for enhanced efficiency
  • Straight compressor discharge outlet configuration
  • Capable of producing over 70 PSI of boost pressure

Technical Specifications:

  • Compressor Inducer Diameter: 52.17mm (2.05 inches)
  • Compressor Wheel Outer Diameter: 2.74 inches
  • Turbine Wheel Outer Diameter: 70mm (2.74 inches)
  • Turbine Exducer Diameter: 61.43mm (2.42 inches)
  • Power Range: 300-550 HP

What's Included:

  • Compressor cover attached to cartridge assembly
  • All cartridge to turbine housing mounting hardware
  • Clamp plates and cap screws
  • Mounting gaskets

Note: This super core assembly does not include the turbine housing, speed sensor, turbine outlet V-band clamp, or drain port fitting. These components must be purchased separately to complete a full turbocharger assembly.
