BorgWarner 13009097047 S300SX-E Turbo Supercore S363 63mm 8780

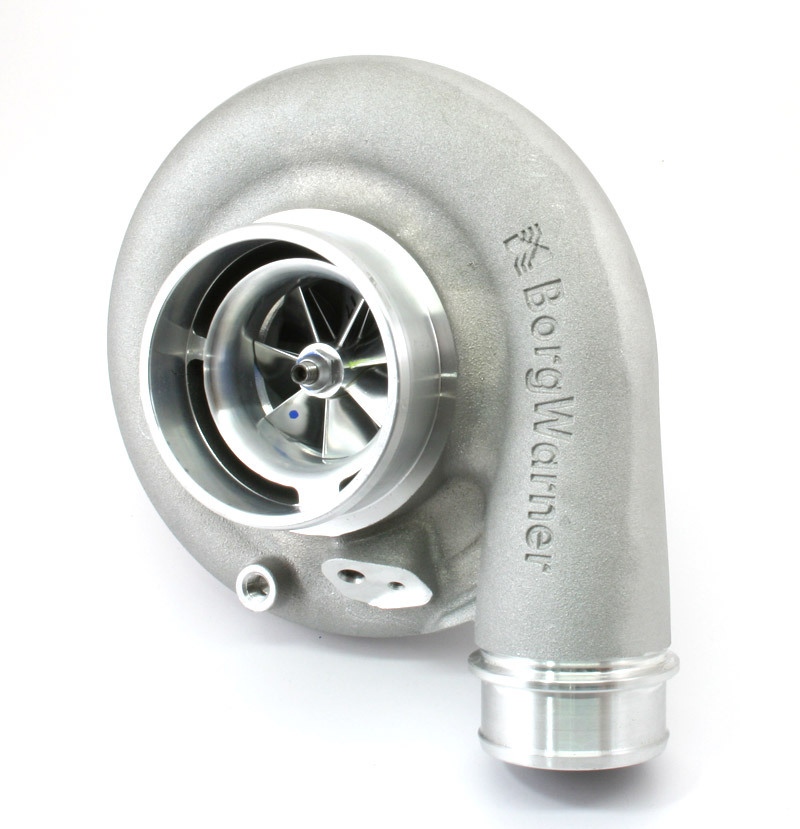

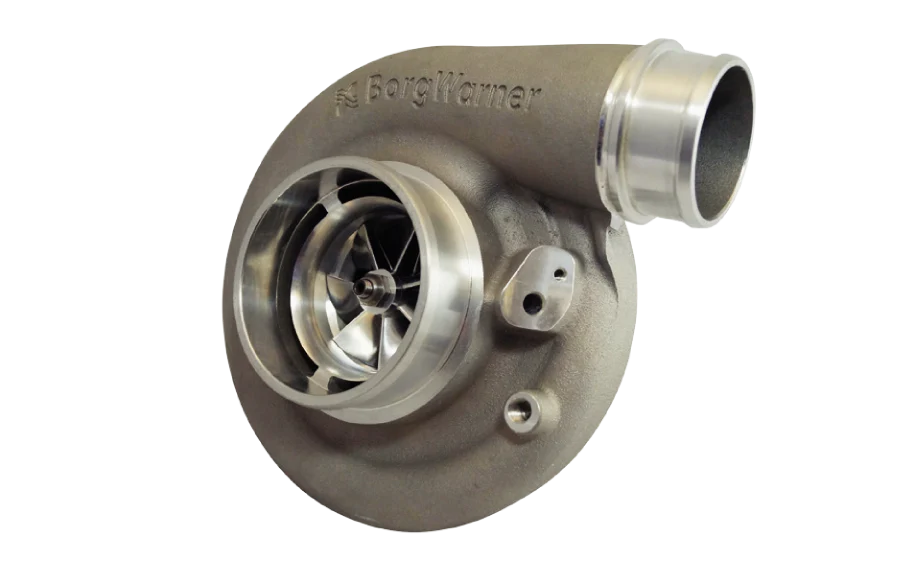

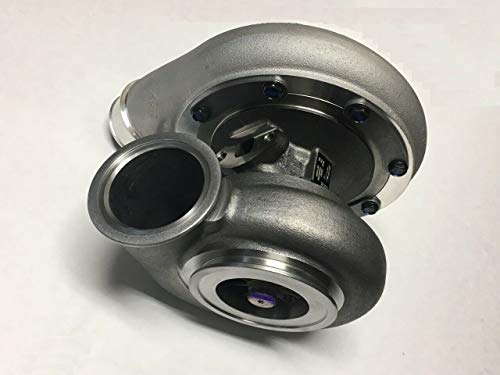

The BorgWarner AirWerks S300SX-E 8780 Supercore (part number 13009097047) is a high-performance turbocharger supercore assembly designed for diesel and gasoline performance applications requiring 450 to 785 horsepower. This S363 configuration features a 62.99mm (63mm) forged-milled compressor wheel paired with an 80mm Inconel turbine wheel, delivering airflow up to 78.5 lb/min at 122,000 rpm.

Key Features:

• 360-degree thrust bearing system for enhanced durability and reliability
• Forged-milled billet compressor wheel with extended tip technology and optimized EFR aerodynamics
• Integrated speed sensor port for monitoring turbo performance
• Pre-machined boost port for convenient installation
• Flexible compressor cover outlet options
• Twin hydrodynamic journal bearings, oil-cooled design
• 80mm Inconel turbine wheel for low backpressure and high flow capability
• Compatible with multiple turbine housing configurations (T3, T4, V-Band options)

Technical Specifications:

• Compressor wheel inducer: 62.99mm (63mm)
• Compressor wheel exducer: 87.37mm
• Turbine wheel inducer: 79.76mm
• Turbine wheel exducer: 73.37mm (74mm)
• Compressor inlet diameter: 101.60mm
• Suitable for 2.0L to 4.5L displacement engines

This supercore assembly includes the compressor cover attached to the cartridge, all cartridge-to-turbine housing mounting hardware, clamp plates, cap screws, and mounting gaskets. Note: Speed sensor, turbine outlet V-band, turbine housing, and drain port fitting are not included and must be purchased separately. Ideal for twin-turbo V8 applications, drag racing builds limited to 63mm inducer sizes, and high-performance street applications where low backpressure is critical.
