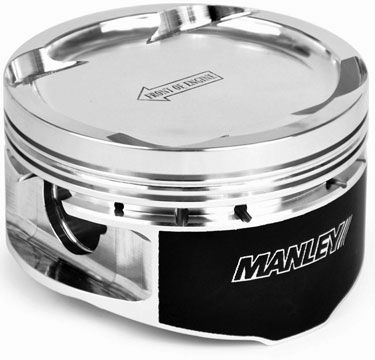

Manley 638005C-4 Platinum Series Forged Piston Set Nissan SR20DE SR20DET 86.5mm Bore

Manufacturer

Part Number

638005C-4
Black Friday Price

$741.18

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 638005C-4 Platinum Series Forged Piston Set is engineered for Nissan SR20DE and SR20DET engines, featuring an 86.5mm bore diameter (+0.5mm oversized) with a -12cc dish design that delivers a 9.0:1 compression ratio. This complete 4-piston set is forged from high-strength 2618 aluminum alloy, providing exceptional durability for high-performance street and racing applications.

Key Features:

  • 2618 aluminum alloy forgings for superior strength and heat resistance
  • 86.5mm bore diameter with 1.260-inch compression height
  • -12cc dish volume achieving 9.0:1 compression ratio with 5.365-inch rod length and 86mm stroke
  • Offset wrist pin location for quieter cold starts
  • Precision cam and barrel skirt profiles minimize cylinder wall friction while maximizing power
  • Unique single-operation fixturing ensures perfect ring groove to skirt squareness
  • Pressure balance groove for improved oiling and stability
  • Each piston weighs approximately 345 grams

Includes:

  • Premium .150-inch wall Chrome Moly wrist pins (2.250-inch length)
  • Steel top ring sets
  • Round wire locks

Recommended piston-to-wall clearance is .0035 inch measured 1.100 inches from the bottom of the oil ring. Compatible with +1mm oversized valves. Ideal for Nissan 180SX, 200SX, 240SX, Sentra, and Silvia models equipped with SR20 engines.

Products specifications

Piston Quantity

4

Weight

345

Bore Diameter

86.50

Make

NISSAN

Piston Head Type

Dish

Compression Height

1.260

Engine Type

ICE

Product Type

Engine Piston Kit

Piston Volume

-12.00

Piston Series

Platinum Series

Piston Sub-Series

Standard

Engine Stroke Type

Stock

Bore Oversize

+0.50

Compression Ratio

9.00:1

Engine Stroke

86.00

Title

Manley Piston Set, PIST-NISSAN SR20 86.5mm/1.260 CD/DISH
